CAT 72H Pipelayer Operation and Maintenance Manual Page 71

Operation and Maintenance Manual
71
WEBM1000 Operation Section (D6T LGP (OEM))
Machine Operation
“Performance” Screens
90

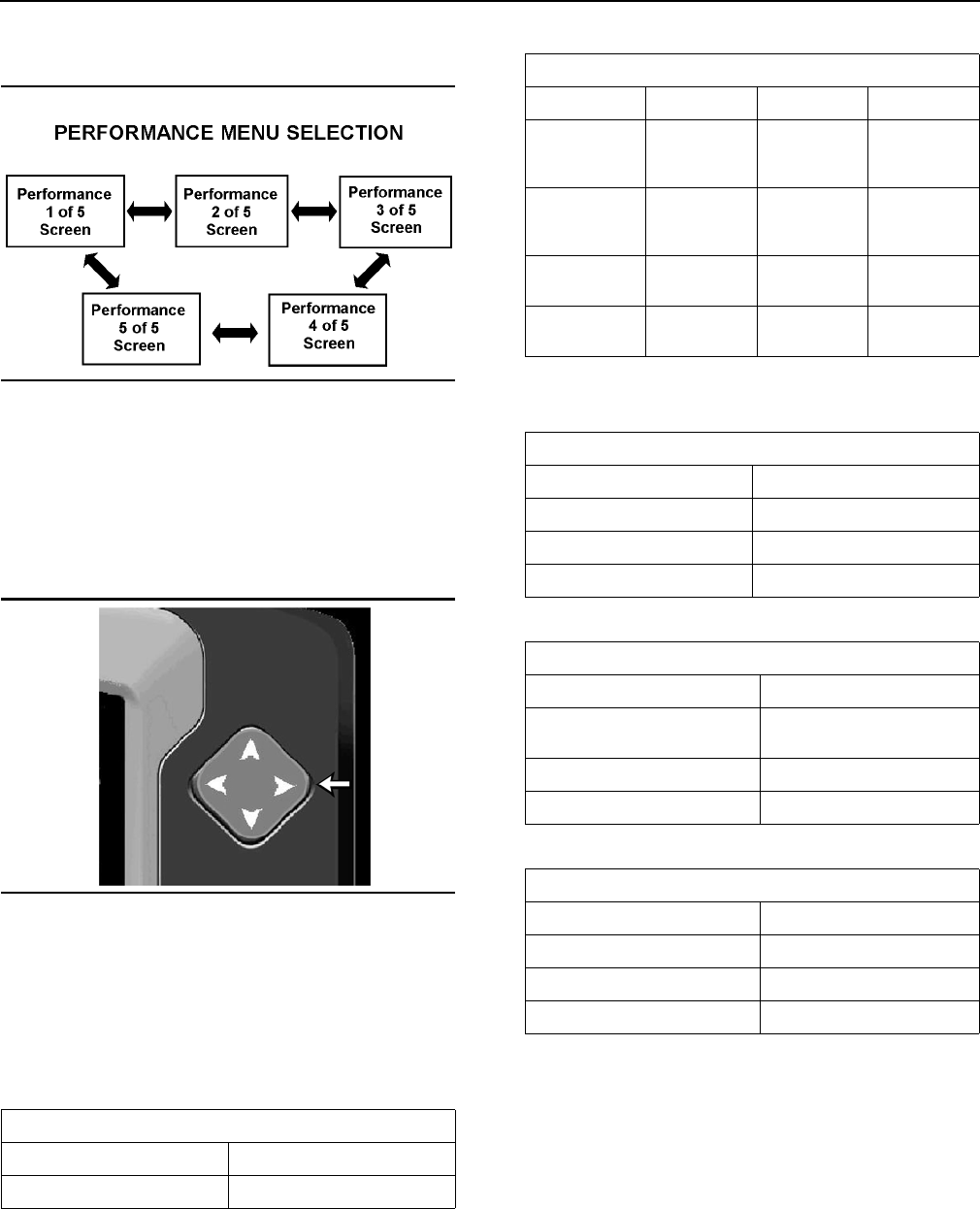

Illustration 90
The “Performance” screens allow the operator or the
technician to view five pages of information. These
pages of information monitor critical data from the
machine systems during machine operation. This
information can only be viewed. The “Performance”
menu uses five screens for the real-time monitoring
of the following information:
91
Illustration 91
The up/down arrow buttons switch the page from
one screen to another screen.
The page that displays “Performance 1 of 5” screen
is the
default setting after the operator preference is
completed. ( Key ON).
Table 10
“Performance” Screen 1 of 5
Description Units
DPF Soot level 25, 50, 75, 100%
(1)
(1) Bar scale
Table 11
“Performance” Screen 2 of 5
Description Value Status Units
Regen mode
(control
mode)
Disab
led,
Manual,
Automatic
Inactive Status
Regen mode
( ARD
status)
(1)
(1) Aftertreatment regeneration device system
Active Active Status
Machine
hours
XXXXXX.X Hours
Rema
ining
Fuel Level
XXX %
Table 12
“Performance” Screen 3 of 5
Description Units
Engine Oil Pressure kPa or psi
System Voltage V
Engine Speed RPM
Table 13
“Performance” Screen 4 of 5
Description Units
Engine Coolant
Temperature
C or F
Hydraulic Oil Temperature C or F
TC Oil Temperature C or F
Table 14
“Performance” Screen 5 of 5
Description Units
Engine Load Factor %
Fuel Consumption L or Gal
Air Filter Restriction kPa or IN-H
2
O
Previous page
Next page
