CAT 72H Pipelayer Operation and Maintenance Manual Page 48

Operation and Maintenance Manual
48
Operation Section (D6T LGP (OEM)) WEBM1000
Machine Operation
Seat Belt
Note: This machine was equipped with a seat belt
when the machine was shipped from Caterpillar. At
the time of installation, the seat belt and the
instructions for installation of the seat belt meet the
SAE J386 and ISO 6683 standards. Consult your
Cat dealer for all replacement parts.
Always check the condition of the seat belt and the
c
ondition of
the mounting hardware before you
operate the machine.
Seat Belt Adjustment for Non-
Retractable Seat Belts
Adjust both ends of the seat belt. The seat belt
should be snug but comfortable.
Lengthening the Seat Belt
50

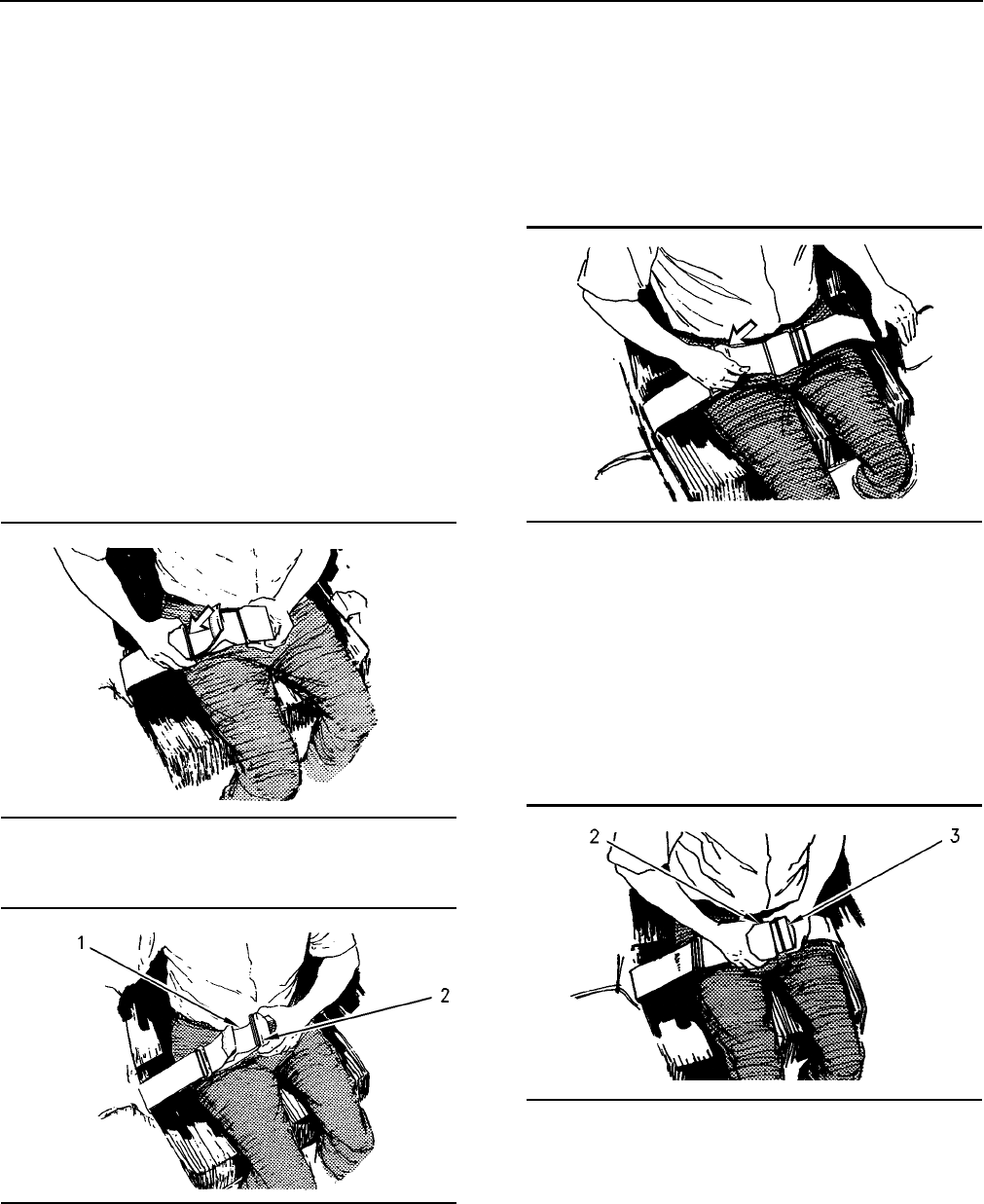

Illustration 50
1. Unfasten the seat belt.
51
Illustration 51
2. To remove the slack in outer loop (1), rotate
buckle (2). This will free the lock bar. This
permits the seat belt to move through the buckle.
3. Rem
ove the slack from the outer belt loop by
pulling on the buckle.
4. Lo
osen the other half of the seat belt in the same
manner
. If the seat belt does not fit snugly with
the buckle in the center, readjust the seat belt.
Shortening the Seat Belt
52
Illustration 52
1. Fasten the seat belt. Pull out on the outer belt
loop in order to tighten the seat belt.
2. Adjust the other half of the seat belt in the same
manner
.
3. If the seat belt does not fit snugly with the buckle
in the
center, readjust the seat belt.
Fastening The Seat Belt
53
Illustration 53
Fasten the seat belt catch (3) into the buckle (2).
Make sure that the seat belt is placed low across the
lap of the operator.
