CAT 72H Pipelayer Operation and Maintenance Manual Page 97

Operation and Maintenance Manual
97
WEBM1000 Operation Section (D6T LGP (OEM))
Engine Starting
Engine Starting
Engine Starting
133

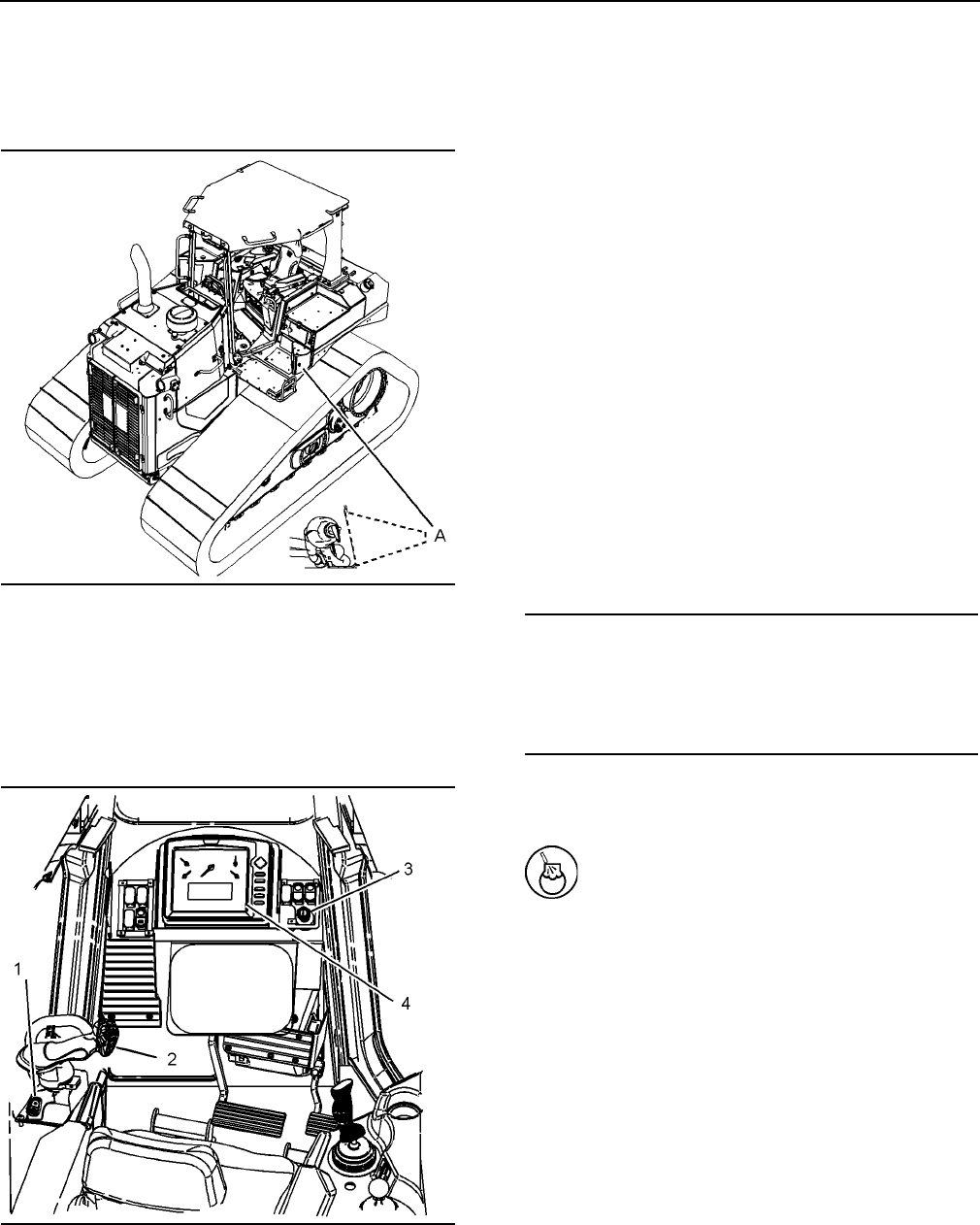

Illustration 133
Location of battery disconnect switch (A)
1. Turn the battery disconnect switch to the ON
position. The battery disconnect switch is inside
of the access door in front of the battery
compartment on the left side of the machine.
134
Illustration 134
2. Move direction selector (2) to the NEUTRAL
position.
3. Engage parking brake (1).
4. Turn key start switch (3) to the ON position. The
monit
oring system performs an automatic self
test. The action alarm sounds and all of the
indicator lights come on briefly.
The indicator light for the park
ing brake will stay
on
until the parking brake is released. If the
attachment controls are locked out, the indicator
light for the hydraulic lockout control will stay on
until the controls are unlocked. The indicator light
for the auto kickdown will stay on until the
function is unselected.
If the system detects a fault, check the electrical
s
ystem. Make all of th
e necessary repairs before
you start the engine.
5. Bef
ore you start the engine, check for the
pres
ence of bystanders or maintenance
personnel. Ensure that all personnel are clear of
the machine. Briefly sound the forward horn
before you start the engine.
6. T
urn start switch key (3) to the START position.
Crank t
he engine. Release the key when the
engine starts.
NOTICE
Do not crank the engine for more than 30 seconds.
Allow the st
arter to cool for two minutes before
cranking again. Turbocharger damage can result if
the engine rpm is not kept low until the oil gauge
display verifies that the oil pressure is sufficient.
Ether Starting Aid (If Equipped)
Ether Starting Aid – The machine may
be equipped with an ether starting aid.
The et
her starting aid is continuously
available to the engine for cold weather
starting. The engine ECM will determine
automatically when the premeasured amount of
ether injects the engine air intake. This action will
occur during the engine starting procedure. The
indicator light indicates that the relay for the ether
aid is being activated.
For starting below the approximate temperature of
1 C (
30 F)
, the use of the ether starting aid is
automatic. Continue the procedure for Engine
Starting.
For starting below 18C (0F)
, the
use of the cold
weather starting aids is recommended. Lighter
viscosity fluids, a jacket water heater, a fuel heater,
or the heavy-duty starter may be required.
