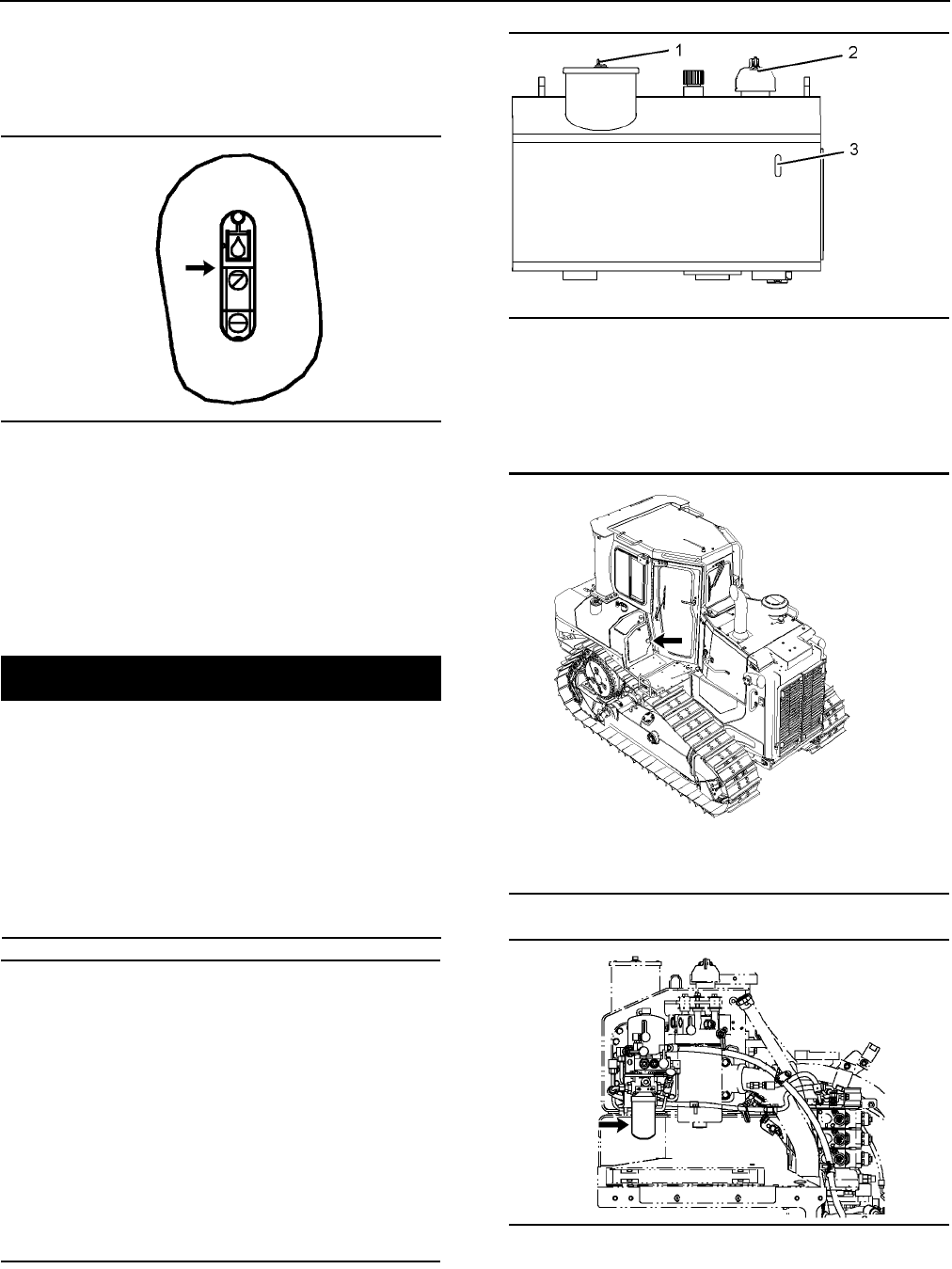

CAT 72H Pipelayer Operation and Maintenance Manual Page 157

Operation and Maintenance Manual
157
WEBM1000 Maintenance Section (D6T LGP (OEM))
Hydraulic System Oil Filter (Pilot) - Replace
13. Install the filler cap.
14. Start the engine. Operate the engine for a few
minute
s.
207
Illustration 207
15. Maintain the oil level to the “FULL” mark in sight
gauge (2). Add oil, if necessary.
16. Stop the engine.
Hydraulic System Oil Filter
(Pilot) - Replace
m
WARNING
At operating temperature, the hydraulic tank is
hot and under pressure.
Hot oil and components can cause personal
injury. Do not allow hot oil or components to
contact skin.
Remove the filler cap only when the engine is
st
opped, and t
he filler cap is cool enough to
touch with your bare hand. Remove the filler cap
slowly in order to relieve pressure.
NOTICE
Care must be taken to ensure that fluids are
contained
during performance of inspection,
maintenance, testing, adjusting, and repair of the
product. Be prepared to collect the fluid with suitable
containers before opening any compartment or
disassembling any component containing fluids.
Refer to Special Publication, NENG2500 “Dealer
Ser
vice To
ol Catalog” for tools and supplies suitable
to collect and contain fluids on Cat products.
Dispose of all fluids according to local regulations
and mandates.
1. Lower the bulldozer and the ripper to the ground.
208
Illustration 208
Right side of cab
2. Slowly remove hydraulic tank filler cap (2) in
order to relieve the system pressure.
209
Illustration 209
210
Illustration 210
