CAT 72H Pipelayer Operation and Maintenance Manual Page 11

Operation and Maintenance Manual
11
WEBM1000 Safety Section (D6T LGP (OEM))
Safety Messages

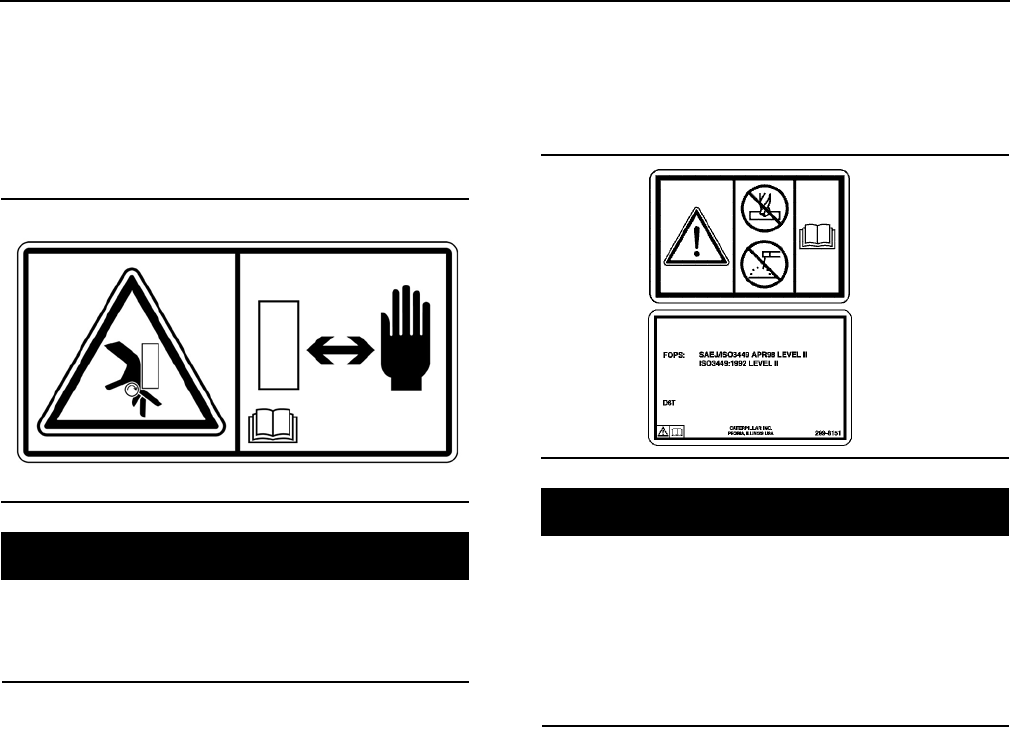

Rotating Shaft (6)
This safety message (6) is located on top of the
guard which is covering the drive shaft for the PTO
pump. The film is visible by removing the floorplate
of the cab.
m
WARNING
Rotatins shaft pinch hazard. The shaft under this
cover is rotating anytime the engine is running.
Contact with a rotating shaft could cause injury
or death. Keep hands away.
Do Not Weld on the FOPS (7)
Safety message (7) is positioned on the right side of
the cab roof.
m
WARNING
Structural damage, an overturn, modification,
alteration, or improper repair can impair this
structure's protection capability thereby voiding
this certification. Do not weld on or drill holes in
the structure. This will void the certification.
Consult your Cat dealer to determine this
structure's limitations without voiding its
certification.
This machine has been certified to the standards
that are listed on the certification plate. The
maximum mass of the machine, which includes the
operator and the attachments without a payload,
should not exceed the mass on the certification
plate.
A typical example of the certification plate is shown
a
bove.
Ref
er to Operation and Maintenance Manual,
“Guards (O
perator Protection)” for more information.
