CAT 72H Pipelayer Operation and Maintenance Manual Page 57

Operation and Maintenance Manual
57
WEBM1000 Operation Section (D6T LGP (OEM))
Machine Operation

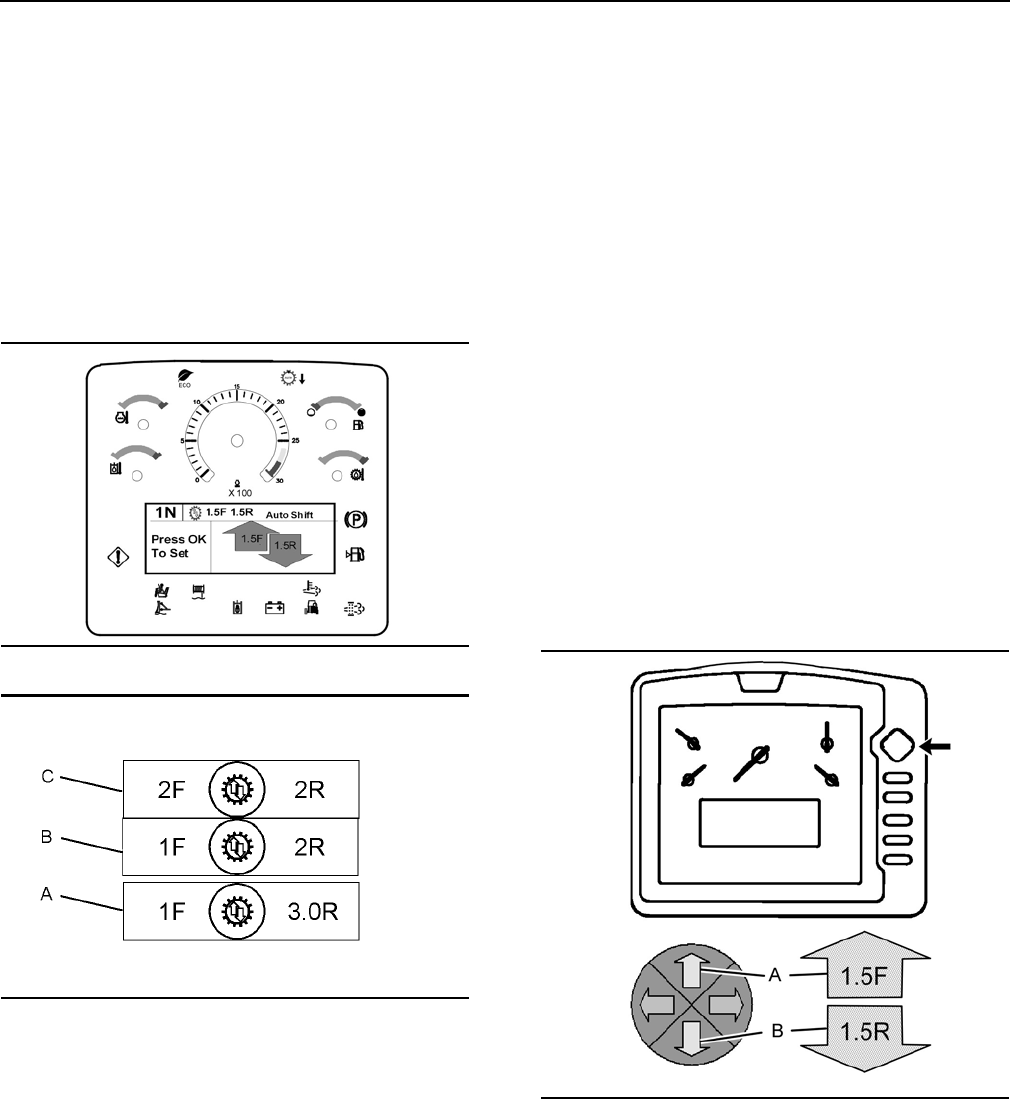

Selecting the bidirectional Autoshift function will take
the user directly to the interface for the bidirectional
Autoshift modes. The interface will have up arrows
and down arrows in the lower right section of the
LCD screen. The up arrow will represent the forward
gear and the down arrow will represent the reverse
gear. The following text is displayed on the LCD
screen: and “Press OK to Set”. The LCD will
display the following information from left to right:
and gear and lever positioncurrent “Bidirectional
Autoshift” settings and “Autoshift” text. A screen
that is an example of the interface for the
“Bidirectional Autoshift” is shown in illustration 68.
69
Illustration 69
70
Illustration 70
First speed forward to third reverse directional shift
mode (Configurable setting) (A) – Push button (13)
onc
e for the autoshift function. A directional shift to
the FORWARD position will always shift to the first
physical gear (or operator configured gear). A
directional shift to the REVERSE position will always
shift to the third physical gear (or operator
configured gear). This mode allows a direct shift
from the FIRST SPEED FORWARD position to the
THIRD SPEED REVERSE position. With the
transmission in the NEUTRAL position, the display
for the transmission indicates “N”. Speed shifting is
manual. Use the thumb roller for upshift requests
and downshift requests. When MVP is active, the
autoshift mode “1.5F-3.0R” is active (or the operator-
selected mode is active).
First speed forward to secon
d rev
erse directional
shift mode (fixed setting) (B) – Push the button for
the auto
shift function (13) twice. When you shift the
transmission to the FORWARD position, the
transmission will always shift into the first physical
gear. When you shift the transmission to the
REVERSE position, the transmission will always shift
into the second physical gear. The speed shift
mechanism is manual. Use the buttons in order to
upshift or use the buttons in order to downshift.
When MVP is active, the autoshift mode “2.5F-2.5R”
is active.
Second speed forward to second reverse directional
s
hift m
ode (fixed setting) (C) – Push the button fo
r
autoshift function (13) three times. When you shift
the transmission to the FORWARD position, the
transmission will always shift into the second
physical gear. When you shift the transmission to the
REVERSE position, the transmission will always shift
into the second physical gear.
Use the autoshift button on the dash to cycle through
th
e thre
e autoshift modes and the ON/OFF. The
switch cycles in order from the top setting to the
bottom setting in the table below.
71
Illustration 71
Bidirectional Keypad
(A) Arrow that adjusts the FORWARD gear
(B) Arrow that adjusts the REVERSE gear
The “Message Display” on the instrument module
changes with a hand control keypad with up/down
arrow keys. The arrow keys will be used to adjust the
“Bidirectional Autoshift” settings. The up arrow will
adjust the forward gear in the up arrow on the LCD
screen. The down arrow will adjust the reverse gear
in the down arrow on the LCD screen.
