CAT 72H Pipelayer Operation and Maintenance Manual Page 196

Operation and Maintenance Manual
196
Product Information Section (Pipelayer Attachment Kit) WEBM1000
General Information
268

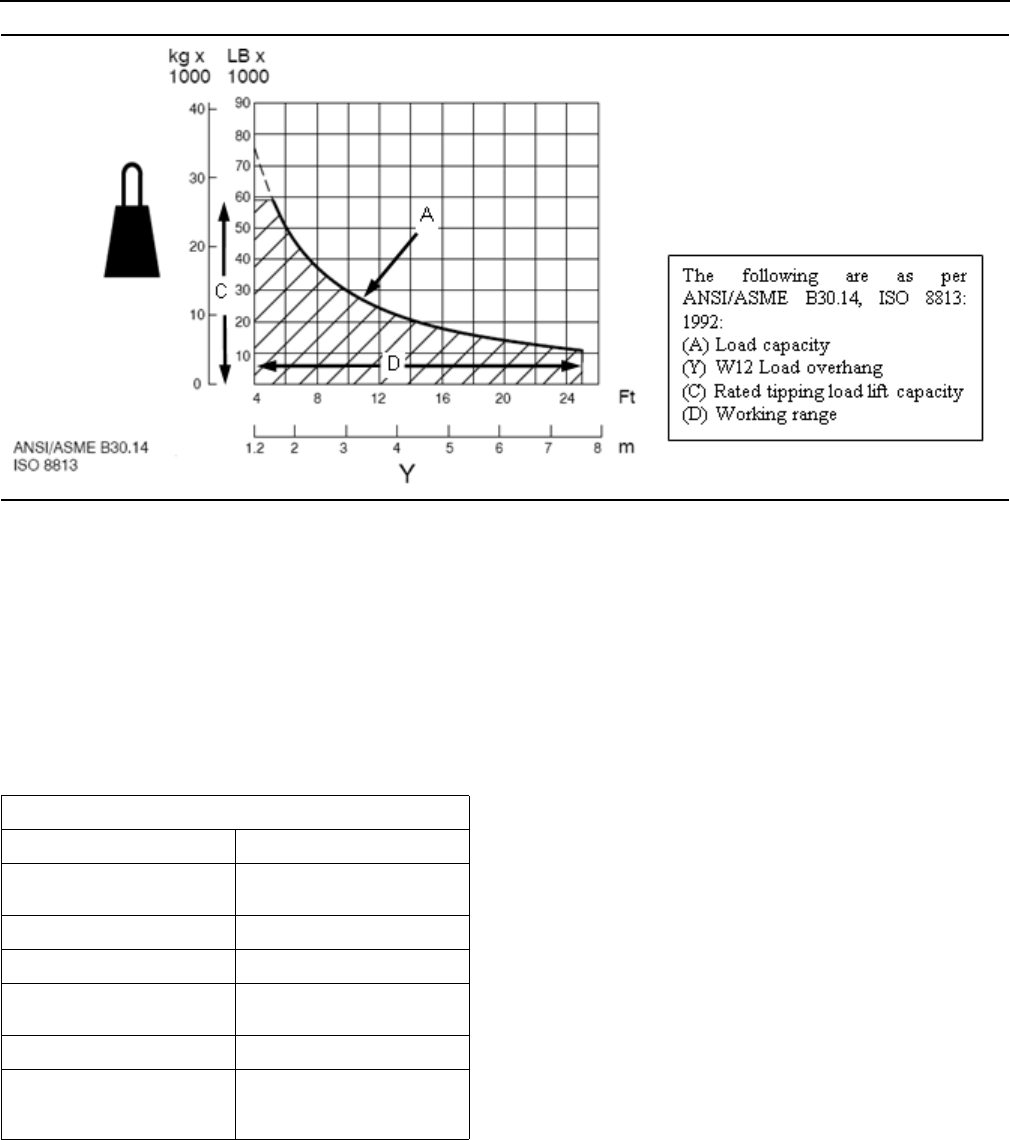

Illustration 268
Lift capacity chart
Note: Do not exceed the lifting capacity that is
shown in the chart in illustration above.
The lift capacity chart is located on the right hand
winch-guar
ding to the front of the controls. The lift
capacities are based on a stationary machine with
the following specifications:
Table 30
72H Pipelayer
Wire rope diameter 19.05 mm ( 0.75 inch)
Minimum breaking
strength of the wi
re rope
261.56 kN (58,800 lb)
4 part load line
4 part boom line
Mass of the extended
counterw
eight
5822 kg ( 12 835 lb)
Standard boom length 6.1 m (20 ft)
Total operating weight of
the machine
(1)
(1) Operating weight: Includes lubricants, coolant, 100% fuel,
hydraulic controls and fluids, backup alarm, seat belt, 660 mm (26
in) single grouser shoes, drawbar, counterweight, boom and pulley
blocks and cable, and operator.
29 127 kg (64,215 lb)
[24 ft boom add 286 kg
(630 lb)]
If the lift capacity chart indicates that the lift
operation is within the capability of the machine,
attempt to perform the operation but proceed with
care. Remember that the load may weigh more than
the estimate for the load. The lift capacity chart is for
estimating the lift operation only.
