WEBM1000 Operation Section (Pipelayer Attachment Kit)
Before Operation
279

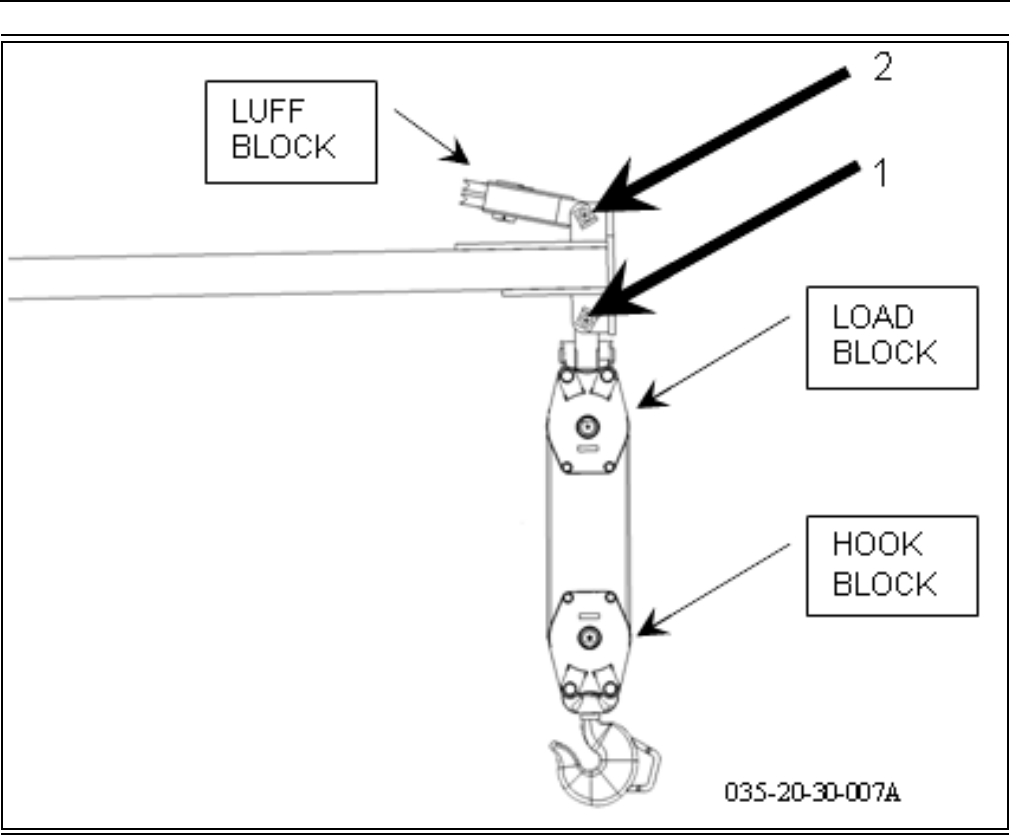

Illustration 279
Removal of boom, steps 1, 2
2. Remove cotter pin, the retainer, and pin (1).
Lower the load block and the hook block to the
ground. The approximate weight of the load
block is 88 kg (194 lb). The approximate weight
of the hook block is 100 kg (220 lb). The
combined weight of the load block and the hook
block is approximately 188 kg (414 lb).
3. Re
place the pin (1) in the boom. Fasten the load
block a
nd the hook block to the machine for
shipping as illustrated below. Draw in the excess
hook load line.
