CAT 72H Pipelayer Operation and Maintenance Manual Page 109

Operation and Maintenance Manual
109
WEBM1000 Operation Section (D6T LGP (OEM))
Towing Information
Connection for the Pump
144

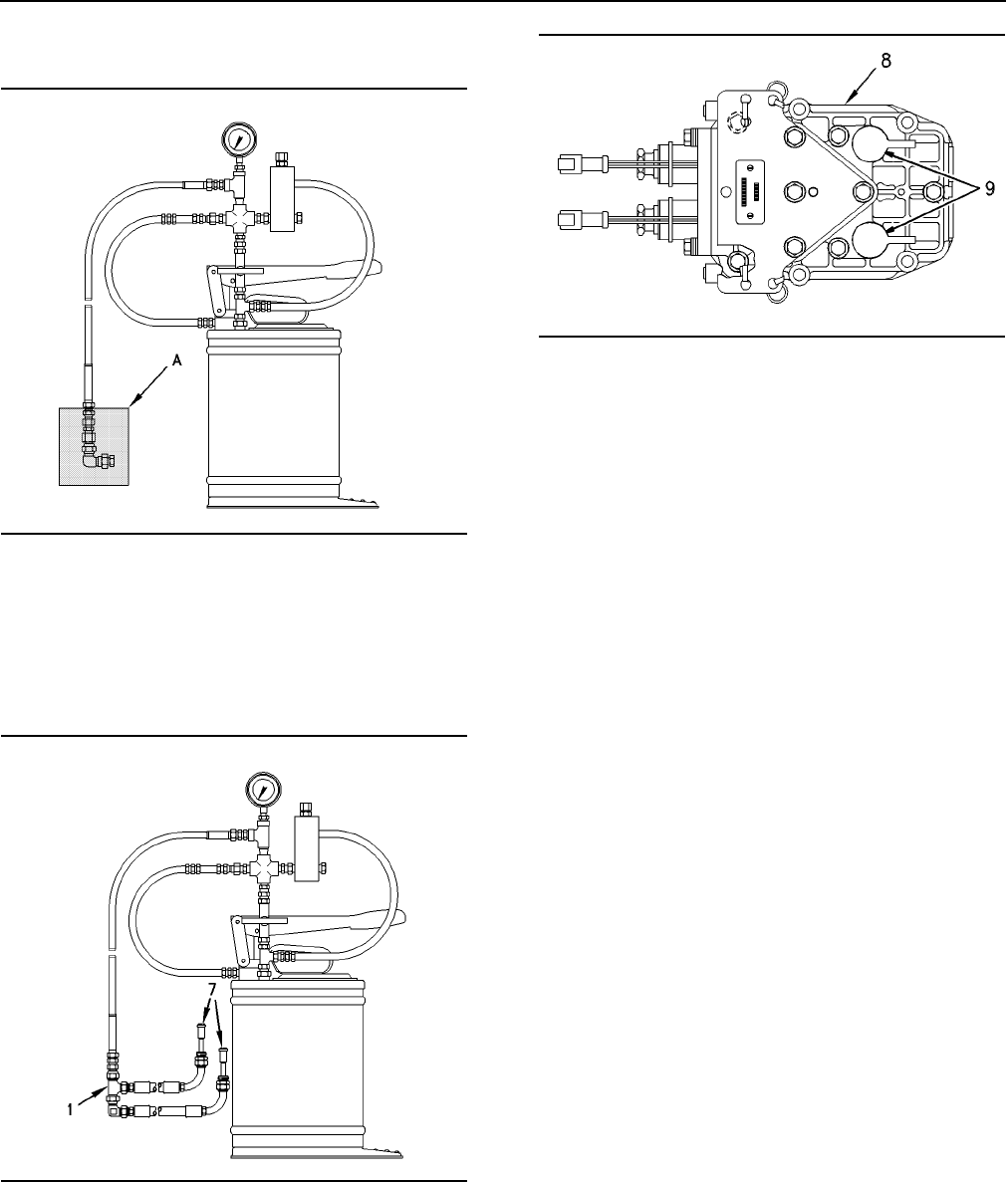

Illustration 144
1. Remove the components that were used to plug
the pressure hose. The components are 9J-6190
Adapter Union, 04-6683 Nipple, 5P-8018
Adapter Union, 8M-0547 Elbow, and 5P-2909
Plug. The components are indicated by shaded
area (A).
145
Illustration 145
(1) Pump adapter
(7) Brake release adapter
2. Connect FT1973 Adapter (1) to the pump
pressure hose. The adapter will be downstream
from the relief valve.
146
Illustration 146
(8) Brake control valve
(9) Brake valve ports
3. Remove the seat and the floorplate from the
operator's station.
4. Remove the pressure test fittings from the top of
brak
e valve ports (9).
5. Install one 123-052
5 Adapter (7) into each of the
brake valve ports.
6. Connect the FT1973 Adapte
r to the 123-0525
Adapters.
7. Route the pressure hose through the rear, around
the side,
and through the door of the cab.
Connect the pressure hose to the pump. Install
the pump temporarily on the platform.
8. Repla
ce the floorplate and the seat.
9. Place the brake release pump in front of the
oper
ator.
10. Fasten the seat belt. Continue to the next topic.
