CAT 72H Pipelayer Operation and Maintenance Manual Page 77

Operation and Maintenance Manual
77
WEBM1000 Operation Section (D6T LGP (OEM))
Machine Operation
The “Settings” menu option is entered by selecting
“Settings” from the main menu. Press the “UP” arrow
button or the “DOWN” arrow button until “Settings” is
highlighted in order to select the “Settings” menu.
Then press the “OK” button. Refer to Illustration 103.
Note: Pr
ess the main menu button in order to
display the “Main Menu”.

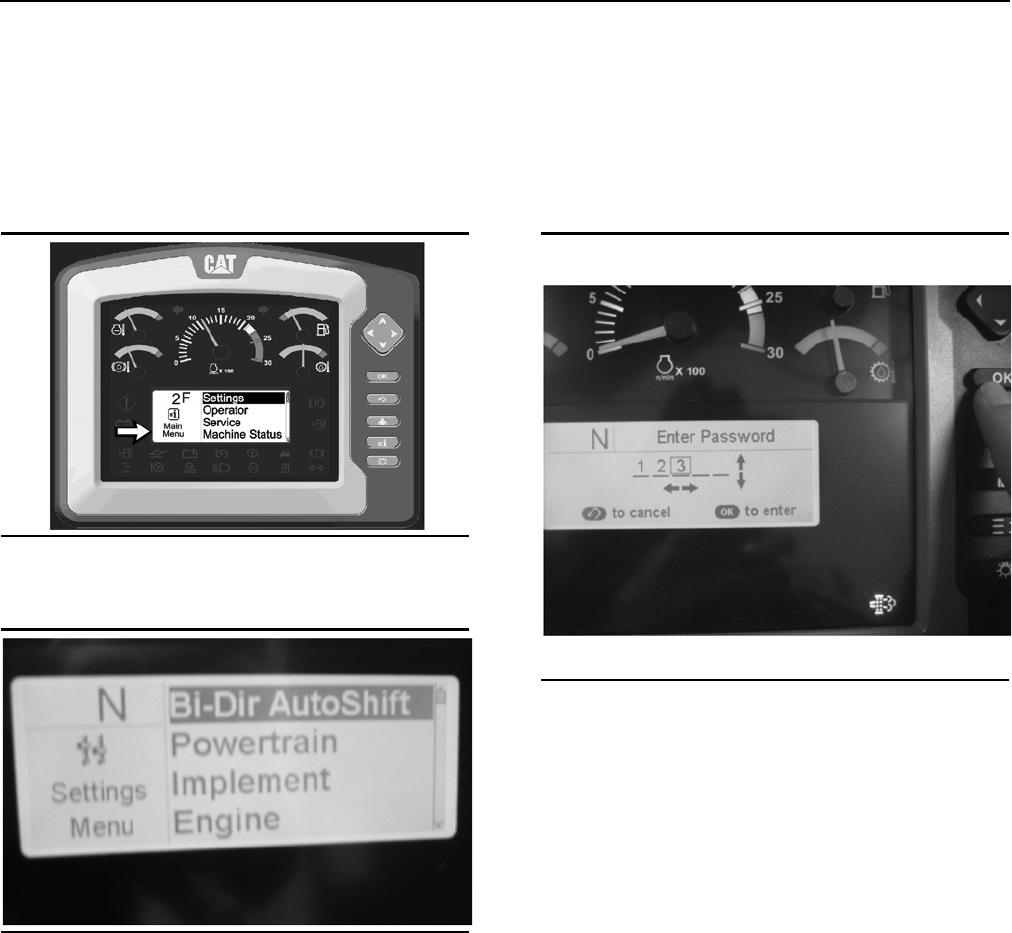

102
Illustration 102
The following screen will now be displayed.
103
Illustration 103
The “Settings” menu has six categories with
adjustable parameters that are listed above. The six
categories are “Bidirectional Shift”, “Power Train”,
“Implement”, “Engine”, “Display Setup”, and
“Machine Setup”.
To adjust to the associated parameters, press the
“UP” a
rro
w button or the “DOWN” arrow button until
the desired category is highlighted. Then press the
“OK” button in order to access the parameters in
that category. From this point, follow the screen
prompts in order to adjust to the available
parameters.
Password Entry Screen
Some of the Settings are password protected. The
display will bring up the password screen
automatically when a password is needed. Once a
password has been entered, the display will
remember this password and not ask for one again
until the next key cycle.
104
Illustration 104
Passwerd entry screen
The password length can be from 1 to 5 numbers.
When entering the password any leading zero's can
be ignored. For example if the password is 123 then
the password would be entered into the 5-digit entry
screen as 1, 2, 3, with the remaining 2 right most
spaces left blank. Pressing the OK key submits the
entered password. Contact your Cat dealer if you do
not know what the password is for your machine or
you would like the password changed.
Power Train Settings
Auto Kickdown – If a significant increase in
machine load is detected, this function automatically
downshifts the transmission. This function works in
forward and reverse gears.
“Maximum Forward Gear” – This
selection sets the
maximum gear
that the machine travels in the
forward direction.
“Maximum Reverse Gear” – T
his selection sets the
maximum gear
that the machine travels in the
reverse direction.
Eco Reverse Mode – Se
lect this mode in order to
activate t
he Eco Reverse mode during reverse travel
in third gear.
