C27 and C32 Generator Set Engines Specifications Page 10

Specifications
10 RENR7167-02
Specifications Section
(A) Height to the step that is in the valve
guide ............... 35.0 ± 0.5
mm (1.38 ± 0.02 inch)
(B) New valve stem diameter ...... 9.441 ± 0.010 mm
(0.3717 ± 0.00
04 inch)
(C) Diameter of inlet valve ............ 47.00 ± 0.13 mm
(1.850 ± 0.005
inch)
(D) Diameter of exhaust valve ...... 41.81 ± 0.13 mm
(1.646 ± 0.005
inch)
(E) Face angle for inlet valve seat
insert ................................. 30.25
± 0.25 degrees
(F) Face angle for exhaust valve seat
insert ................................. 45.25
± 0.25 degrees

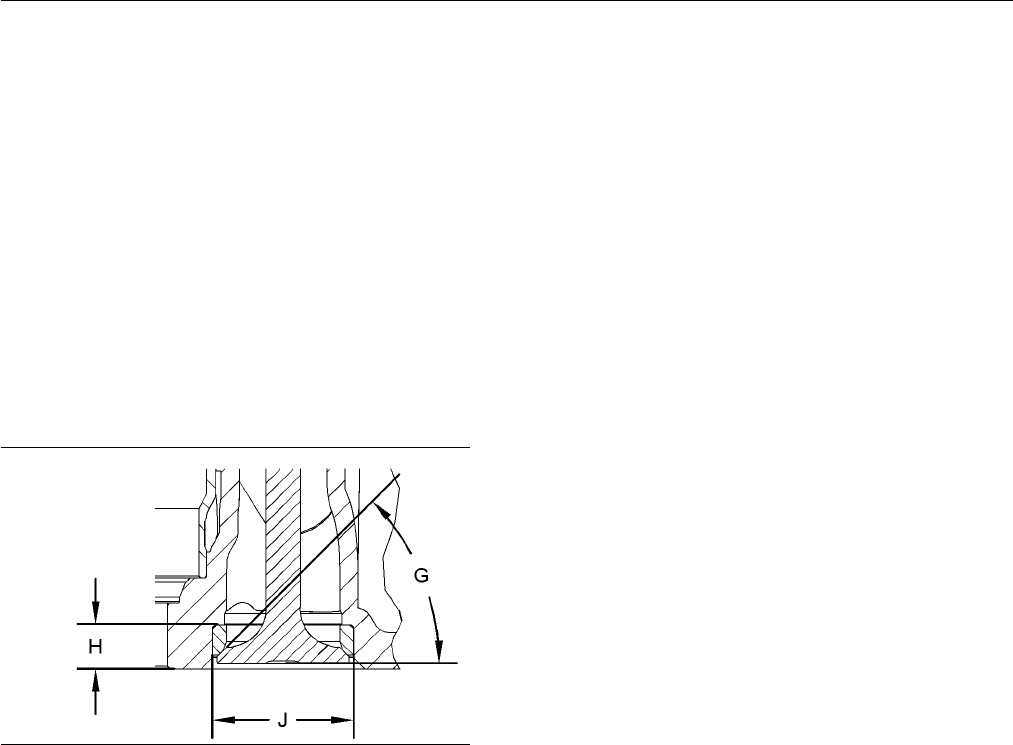

g01397152
Illustration 16
(G) Angle of valve face
Angle of the face of the inlet
valve ................................. 29.25 ± 0.25 degrees
Angle of the face of the exhaust
valve ................................. 44.25 ± 0.25 degrees
(H) Depth of the bore in the cylinder head for the
valve seat insert
Inlet ......... 14.00 ± 0.05 mm (0.551 ± 0.002 inch)
Exhaust ... 13.90 ± 0.05 mm (0.547 ± 0.002 inch)
Note: Shrink the valve seat inserts by reducing the
temperature. Shrinking the valve seat inserts allows
placement into the counterbore.
(J) Valve seat insert
Diameter of valve seat insert (inlet
valve) ................................... 48.025 ± 0.013 mm
(1.8907 ± 0.0005 inch)
Bore in cylinder head for valve seat insert (inlet
valve) ................................... 47.950 ± 0.025 mm
(1.8878 ± 0.0010 inch)
Diameter of valve seat insert (exhaust
valve) ................................... 42.840 ± 0.013 mm
(1.6866 ± 0.0005 inch)
Bore in cylinder head for valve seat insert
(exhaust valve
) .................... 42.774 ± 0.025 mm
(1.6840 ± 0.0010 inch)
