C27 and C32 Generator Set Engines Specifications Page 34

Specifications
34 RENR7167-02
Specifications Section

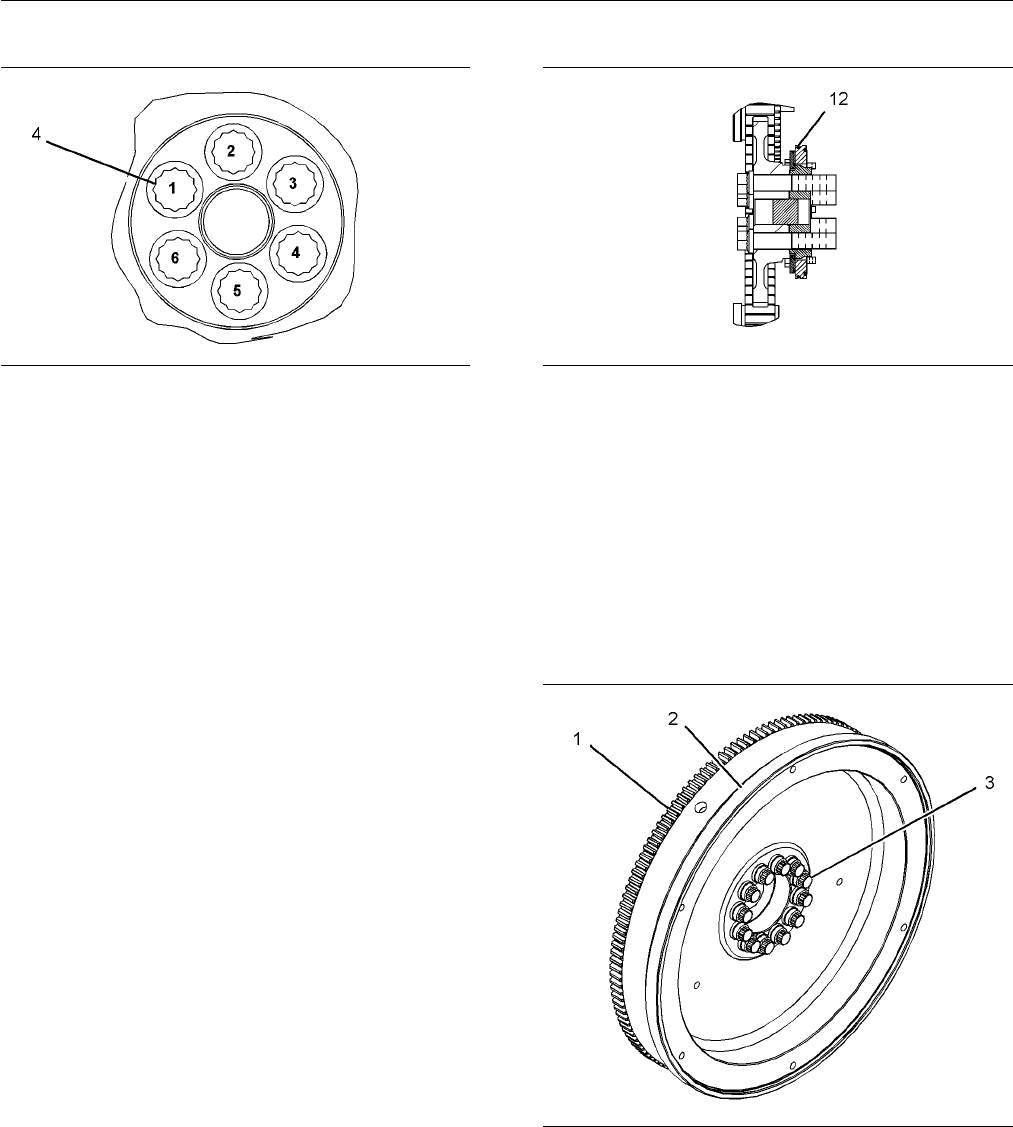

g01400123
Illustration 64
Tightening sequence
Note: Tighten the bolts for the camshaft gear in the
sequence 1, 4, 2, 5, 3, 6, 1, 4. Refer to Illustration 64.
(4) Torque for the 12 bolts of the camshaft gear
assembly ............... 240 ± 40 N·m (175 ± 30 lb ft)
(5) Install the plate with the side marked “OUT” away
from the gear face.
Note: Lubricate the shaft, the bearing bore, and the
thrust faces of the idler gear assembly with clean
engine oil.
(6) Torque for the bolts of the idler gear
assembly ..................... 55 ± 10 N·m (41 ± 7 lb ft)
Note: Lubricate the shaft, the bearing bore, and the
thrust faces of the idler gear assembly with clean
engine oil.
(7) Torque for the locking bolt of idler gear
assembly ..................... 55 ± 10 N·m (41 ± 7 lb ft)
(8) Torque for the bolts for the stub shaft of idler gear
assembly ............... 135 ± 20 N·m (100 ± 15 lb ft)
(9) Install the thrust plate with the side marked “OUT”
away from the gear face.
(10) With the number one piston in the top dead
center position, align the timing marks. The mark
on the idler gear must be in alignment with the
mark on the crankshaft gear.
(11) Lubricate the shaft, the bearing bore, and the
thrust faces of the cranshaft gear assembly with
clean engine oil.
g01400787
Illustration 65
Section A-A
(12) Lubricate the O-ring seals lightly with clean
engine oil.
i02801643
Flywheel
SMCS Code: 1156
Part No.: 258-4884
g01188636
Illustration 66
(1) Flywheel gear
(2) Flywhee l
Note: Refer to Systems Operation/Testing and
Adjustingforthecorrectmethodforfl ywheel runout
and flywheel inspection.
Note: Replace the twelve bolts (3) at service.
1. Apply 6V-4876 Lubricant to the threads of the
bolts (3) before assembly.
