C27 and C32 Generator Set Engines Specifications Page 29

Specifications
RENR7167-02 29
Specifications Section
Install the piston ring with “UP-1” mark toward the
top of the pisto
n.
There is a clearance between the ends of the piston
ring. When the
piston ring is installed in a cylinder
liner with a bore of 144.975 mm (5.708 inch), the
clearance is the following value. ...... 0.40 ± 0.10 mm
(0.02 ± 0.004
inch)
There is an increase in the clearance between
the ends of th
e piston rings for each 0.030 mm
(0.0012 inch) increase in the cylinder liner bore.
Increase .................................. 0.08 mm (0.003 inch)
Intermediate Piston Ring
(2) Intermediate piston ring
Install the p
istonringwith“UP-2”marktowardthe
top of the piston.
There is a cl
earance between the ends of the piston
ring. When the piston ring is installed in a cylinder
liner with a bore of 144.975 mm (5.708 inch), the
clearance i
s the following value. .. 0.600 ± 0.125 mm
(0.0236 ± 0.0049 inch)
There is an i
ncrease in the clearance between
the ends of the piston rings for each 0.030 mm
(0.0012 inch) increase in the cylinder liner bore.
Increase .................................. 0
.08 mm (0.003 inch)
Oil Contro
lRing
(3) Oil C ontrol Ring
The spring ends of the oil control ring should be
assembled 180 degrees from the ring end gap.
Width of groove in new piston for oil control
ring ................................................... 3 .02 ± 0.01 mm
(0.119 ± 0
.001 inch)
Thickness of new oil control ring ...... 2.98 ± 0.01 mm
(0.117 ± 0
.001 inch)
There is a clearance between the ends of the piston
ring. Whe
n the piston ring is installed in a cylinder
liner with a bore of 144.975 mm (5.708 inch), the
clearance is the following value. ...... 0.55 ± 0.15 mm
(0.028 ±
0.006 inch)
There is an increase in the clearance between
the ends
of the piston rings for each 0.030 mm
(0.0012 inch) increase in the cylinder liner bore.
Increase .................................. 0.08 mm (0.003 inch)
Piston Pin Bore
(4) Piston p in bore
Diameter of the bore in the bearing that is installed into
the piston skir
t for the piston pin .... 59.40 ± 0.04 mm
(2.339 ± 0.002 inch)
Diameter of th
e new piston pin .. 59.975 ± 0.005 mm
(2.3612 ± 0.0002 inch)
i02801103
Housing (Fron t)
SMCS Code: 1151
Part No.: 238-9862
g01399842

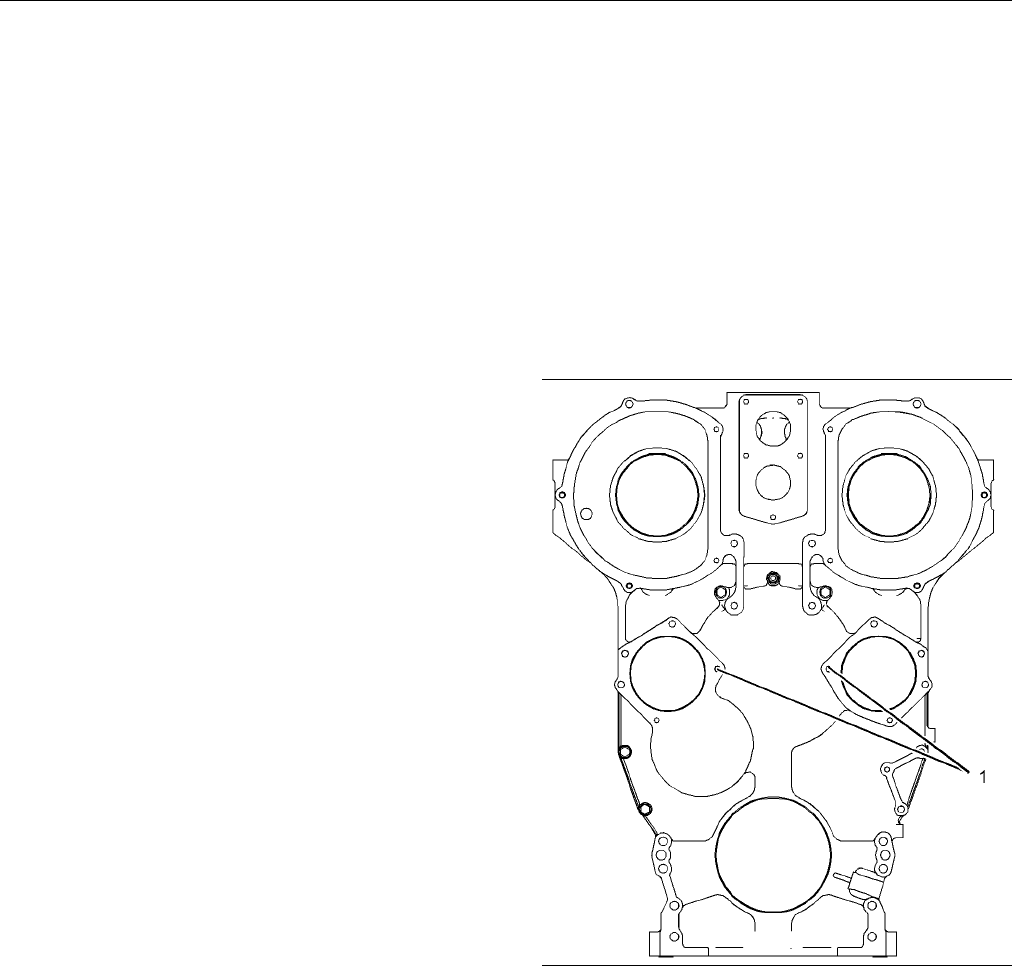

Illustration 54
(1) Studs
are supplied with a previously applied
thread lock compound. Install the shortest
threaded end of stud into the front housing
assembl
y.
