C27 and C32 Generator Set Engines Specifications Page 16

Specifications
16 RENR7167-02
Specifications Section
i02798318
Engine O il Filter Base
SMCS Code: 1306
Part No.: 264-1492

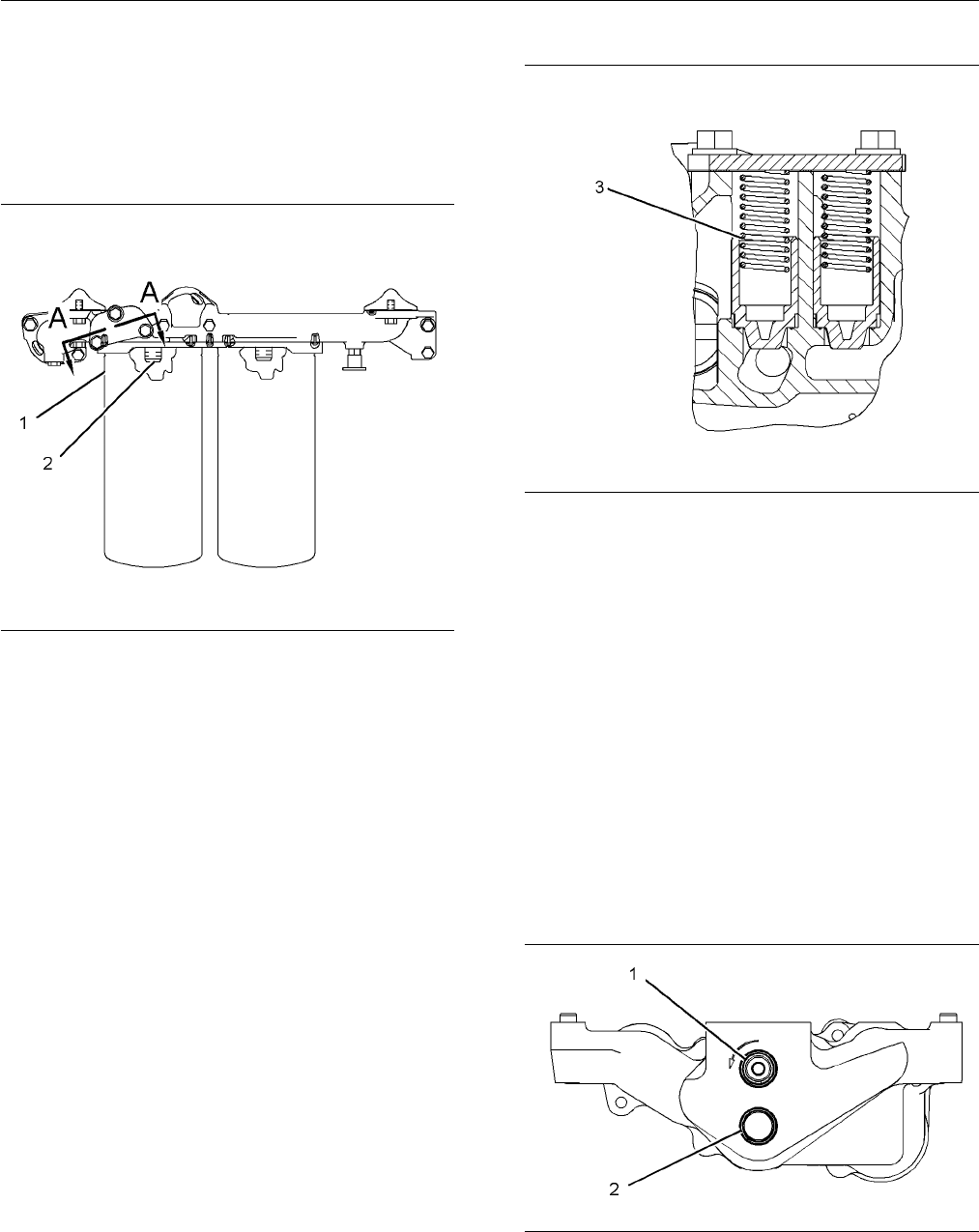

g01188271
Illustration 30
1. Apply clean engine oil to the filter gasket.
2. Put the engine oil filter assembly (1) in position.
3. Turn the engine oil filter assembly (1) by hand
until the filter gasket makes contact with the oil
filter base.
4. Additionally tighten the engine oil filter assembly
by 3/4 of a turn.
Note: Apply 1 54-9731 Thread Lock Compound on
the last 7.6 mm (0.30 inch) of the threads of hollow
stud from taperlock end.
(2) Torque for the hollow stud ............... 81 ± 14 N·m
(60 ± 10 lb ft)
g01402272
Illustration 31
Section A-A
(3) 4N-8150 Spring
Length under test force ... 55.24 mm (2.175 inch)
Test force .......... 75.619 ± 5.800 N (17.0 ± 1.3 lb)
Free length after test .. 93.726 mm (3.6900 inch)
Outside diameter ................ 20.6 mm (0.81 inch)
The nominal opening pressure of the oil filter bypass
valve ............................................... 247 kPa (36 psi)
i02415677
Engine Oil Pump
SMCS Code: 1304
Part No.: 116-1980
g01207493
Illustration 32
