C27 and C32 Generator Set Engines Specifications Page 20

Specifications
20 RENR7167-02
Specifications Section
i02798357
Cylind er B lock
SMCS Code: 1201
Part No.: 237-0842
S/N: DWB1-Up
Part No.: 246-2894, 253-9882
S/N: SXC1-Up
Part No.: 253-9882
S/N: MED1-Up
Part No.: 237-0842, 253-9882
S/N: WDR1-Up
g01398189

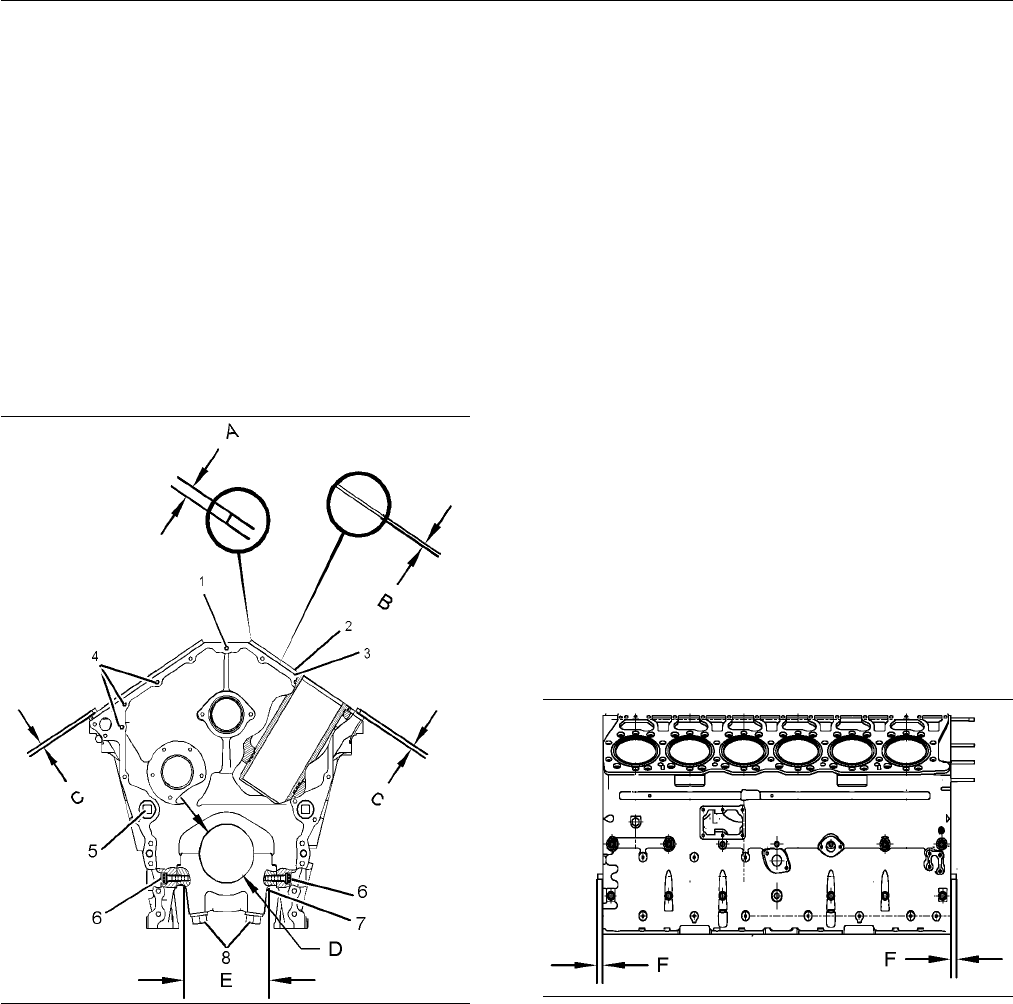

Illustration 37
Front of the engine
Note: Apply 6V-6640 Sealant to the pipe threads
of stud (1). Tighten the stud with the coated pipe
threads into the cylinder block.
(4) Torque for three taperlock studs ........ 35 ± 5 N·m
(26±4lbft)
Note: The top face of the cylinder block, both sides
of plate gasket (3) and bottom surface of spacer plate
(2)mustbefreeoffuel,oil,water,gasketadhesives,
assembly compounds and any other contaminants
during assembly.
(A) Thickness of the spacer
plates ..................................... 8.585 ± 0
.025 mm
(0.3380 ± 0.0010 inch)
(B) Thickness
of plate gasket that is between cylinder
block and spacer plate ........... 0.208 ± 0.025 mm
(0.0082 ± 0.0010 inch)
(C) Extension of the dowels on the left bank and right
bank from the cylinder block ....... 18.5 ± 0.5 mm
(0.73 ± 0.02 i
nch)
Note: Apply 5P-3413 Pipe Sealant on the threads of
the taperloc
k plugs (5) before assembly.
(5) Torque for the four taperlock plugs .. 80 ± 15 N·m
(60 ± 11 lb ft)
(D) Bore in cylinder block for main
bearing ............................... 129.
891 ± 0.013 mm
(5.1138 ± 0.0005 inch)
(E) Dimensi
ons for main bearing cap
Thewidthoftheslotforthemainbearing
caps ...... 236.00
± 0.05 mm (9.291 ± 0.002 inch)
Width of main bearing cap .. 235.500 ± 0.025 mm
(9.2716 ± 0.
0010 inch)
g01403680
Illustration 38
Right side of the engine
(F) Extension of dowels from the rear face of the
cylinder block and from the front face of the
cylinder block .. 19.0 ± 0.5 mm (0.75 ± 0.02 inch)
Note: The main bearing caps (7) must be installed
with the identifying marks toward the front of the
engine. The number of the main bearing cap (7) must
also match the cast number on the left side of each
main bearing saddle.
Use the following procedure to install the main
bearing caps:
