C27 and C32 Generator Set Engines Specifications Page 7

Specifications
RENR7167-02 7
Specifications Section
g01401981

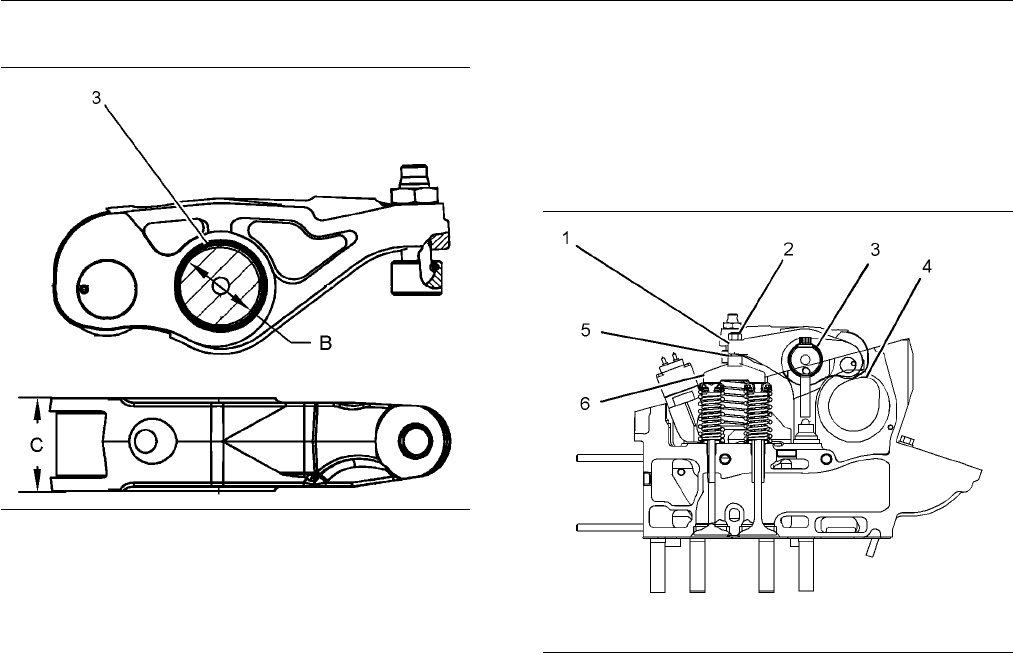

Illustration 7
View A-A
Typical exam p le
(3) Bear ing joint
(B) Bore
New parts ............................ 40.065 ± 0.015 mm
(1.5774 ± 0.0006 inch)
Maximum dimension for worn parts .. 40.193 mm
(1.5824 inch)
(C) Bearing for the rocker arm and the pin must not
extend beyond either face of the rocker arm.
i02815204
Valve Mechanism
SMCS Code: 1102
Part No.: 260-9631
g01246863
Illustration 8
(1)Rockerarm
(4) Camshaft
(6) Valve bridge
(2) Torque for the adjustment screw
locknut ........................... 30 ± 7 N·m (22 ± 5 lb ft)
(3) Rocker shaft assembly
Diameter of a new rocker arm
shaft ..................................... 40.000 ± 0.010 mm
(1.5748 ± 0.0004 inch)
Bore in a new bearing for rocker arm
shaft ..................................... 40.065 ± 0.015 mm
(1.5774 ± 0.0006 inch)
Maximum dimension for the bore in a worn
bearing for rocker arm shaft ............. 40.193 mm
(1.5824 inch)
Note: Refer to Testing and Adjusting, “Engine Valve
Lash - Inspect/Adjust” for the correct procedure on
setting the engine valve lash.
(5) Location for checking the valve lash
Inlet valves ................................. 0.38 ± 0.08 mm
(0.015 ± 0.003 inch)
Exhaust valves .......................... 0.76 ± 0.08 mm
(0.030 ± 0.003 inch)
