C27 and C32 Generator Set Engines Specifications Page 26

Specifications
26 RENR7167-02
Specifications Section
i02801090
Connecting Rod
SMCS Code: 1218
Part No.: 232-3232
S/N: DWB1-Up
Part No.: 215-1955, 232-3232
S/N: SXC1-Up
Part No.: 215-1955, 232-3232
S/N: MED1-Up
Part No.: 215-1955, 232-3232
S/N: WDR1-Up
g01318414

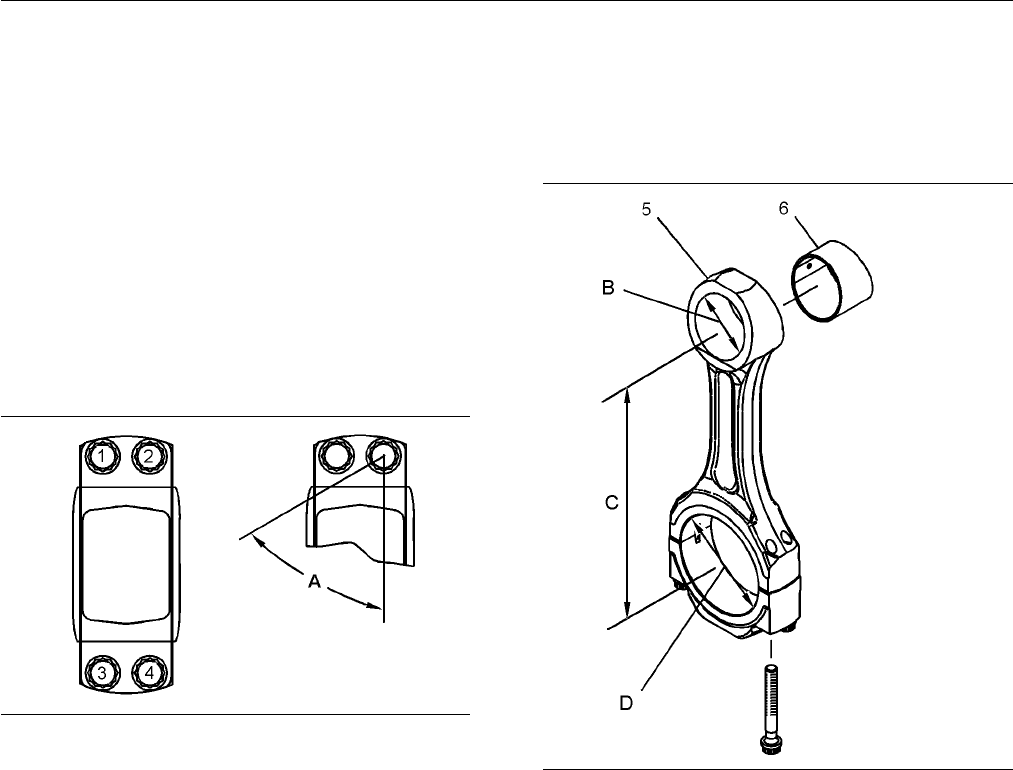

Illustration 48
Tightening se
quence, and index mark for torque-turn process
(1),(2),(3),(4) Bolts for rod cap
Note: The connecting rods should be installed in the
engine so that the part number of the forging for the
rod assembly
is facing the connecting rod that is on
the same crankshaft pin. The opposite side of the
connecting rods will face the thrust surface of the
crankshaft j
ournal.
Use the following procedure for tightening the bolts
for the rod c
ap:
1. Prior to assembly, lubricate the threads of the
bolts and th
e seating face of the bolt heads with
clean engine oil.
2. Finger tigh
ten all of the bolts.
3. Tighten bolts (1) and (3) to 70 ± 4 N·m (50 ± 3 lb ft).
4. Tighten bolts (2) and (4) to 70 ± 4 N·m (50 ± 3 lb ft).
Note: Useap
aint stick to place an index mark on
each of the bolts. Use the index mark as a reference
in order to torque the bolts for an additional angle.
5. Tighten bolts (2) and (4) by an additional angle
(A) of 60 ± 5 degrees.
6. Tighten bolts (1) and (3) again to 70 ± 4 N·m
(50±3lbft).
7. Tighten bolts (1) and (3) by an additional angle
(A)of60±5deg
rees.
g01399607
Illustra
tion 49
(6) Bearing for piston pin
(5) Connecting rod
(B) Insid
e diameter of connecting rod of bearing
for the piston pin ............ 64.592 ± 0.013 mm
(2.5430 ± 0.0005 inch)
(C) Dista
nce between the center of the bore for
the bearing for piston pin and the center of the
bore for the crankshaft journal .... 274.91 mm
(10.823
inch)
(D) Inside diameter of connecting rod
for the crankshaft journal after the
bearing
for connecting rod has been
installed and the bolts have been
torqued. ....................... 103.500 ± 0.013 mm
(4.0748
± 0.0005 inch)
