C27 and C32 Generator Set Engines Specifications Page 25

Specifications
RENR7167-02 25
Specifications Section
i02664967
Vibration Damper and Pulley
SMCS Code: 1205
Part No.: 301-6972
S/N: SXC1-Up
Part No.: 301-6972
S/N: MED1-Up
Part No.: 301-6972
S/N: WDR1-Up

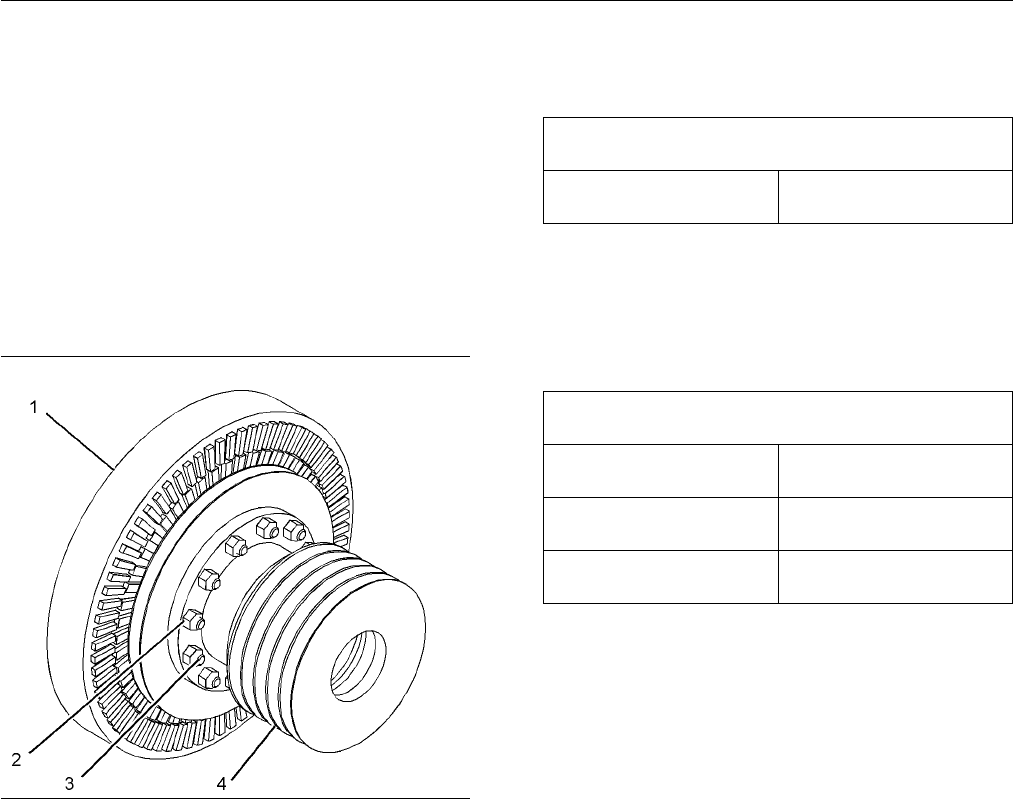

g01188235
Illustration 47
(1) Damper
(4) Pulley
(2) Torque for 12 full nuts .................... 150 ± 20 N·m
(110±15lbft)
(3) Torque for 12 taperlock studs .......... 65 ± 10 N·m
(48±7lbft)
i02739840
Connecting Rod and Main
Bearing Journ als
SMCS Code: 1230
Part No.: 232-3232
Refer to the Guideline for Reusable Parts for more
information.
Connecting Rod Bearing Journals
Table 1
Diameter of Crankshaft Journal (Bearing
Surface) For Connecting Rod
Original Size
97.028 ± 0.020 mm
(3.8200 ± 0.0008 inch)
Clearance between new bearing and new
journal ... 0.070 to 0.178 mm (0.0028 to 0.0070 inch)
Main Bearing Journals
Table 2
Diameter of Crankshaft Journal (Bearing
Surface) for M
ain Bearings
Original Size
120.650 ± 0.020 mm
(4.7500 ± 0.0008 inch)
Undersize Jou
rnal
0.63 mm (0.025 inch)
120.015 ± 0.02
0mm
(4.7250 ± 0.0008 inch)
Undersize Journal
1.27 mm (0.050
inch)
119.380 ± 0.020 mm
(4.7000 ± 0.0
008 inch)
Main bearing c
ap with two bolts
Clearance between new bearing and new
journal ................................... 0.07
6to0.186mm
(0.0030 to 0.0073 inch)
Main bearing
cap with four bolts
Clearance between new bearing and new
journal ................................... 0.07
1to0.178mm
(0.0028 to 0.0070 inch)
