C27 and C32 Generator Set Engines Specifications Page 41

Specifications
RENR7167-02 41
Specifications Section
i02666631
Atmospheric Pressure Sensor
SMCS Code: 1923
Part No.: 194-6724
g01190345

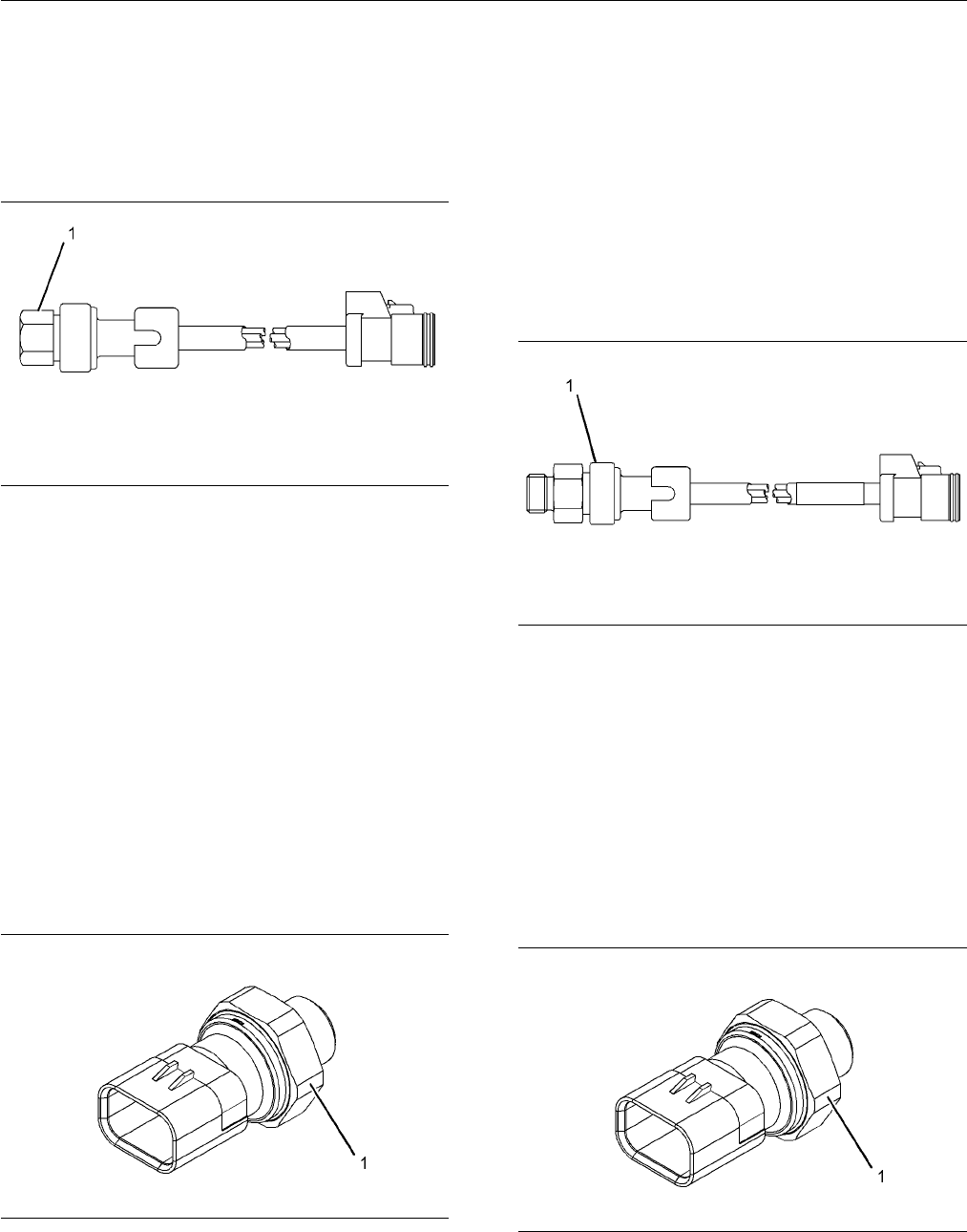

Illustratio
n82
(1) Final installation torque for the pressure sensor
group .......................... 10 ± 2 N·
m(90±18lbin)
Operating voltage ........................... 5.00 ± 0.25 VDC
Operating temperature ........................ −40 to 125 °C
(−40 to 257 °F)
Maximum operating pressure (absolute
pressure) ......................................... 472 kPa (68 psi)
i02806451
Atmospheric Pressure Sensor
SMCS Code: 1923
Part No.: 274-6717
g01154731
Illustration 83
(1) Final installation torque for the pressure sensor
group .......................... 10 ± 2 N·m (90 ± 18 lb in)
Operating voltage ............................... 5.0 ± 0.5 VDC
Operating temperature ........................ −40 to 125 °C
(−40 to 257 °F)
Maximum operating pressure (absolute
pressure) ......................................... 116
kPa (17 psi)
i02786528
Atmosph e ric Pressure Sensor
SMCS Code: 1923
Part No.: 194-6722
g01392045
Illustration 84
(1) Final installation torque for the pressure sensor
group .......................... 10 ± 2 N·m (90 ± 18 lb in)
Operating voltage ........................... 5.00 ± 0.25 VDC
i02806452
Atmos pher
ic Pressure Sensor
SMCS Code: 1923
Part No.: 276-6793
g0115473
1
Illustration 85
(1) Final installation torque for pressure sensor
group .......................... 10 ± 2 N·m (90 ± 18 lb in)
Operating voltage ............................... 5.0 ± 0.5 VDC
