C27 and C32 Generator Set Engines Specifications Page 14

Specifications
14 RENR7167-02
Specifications Section

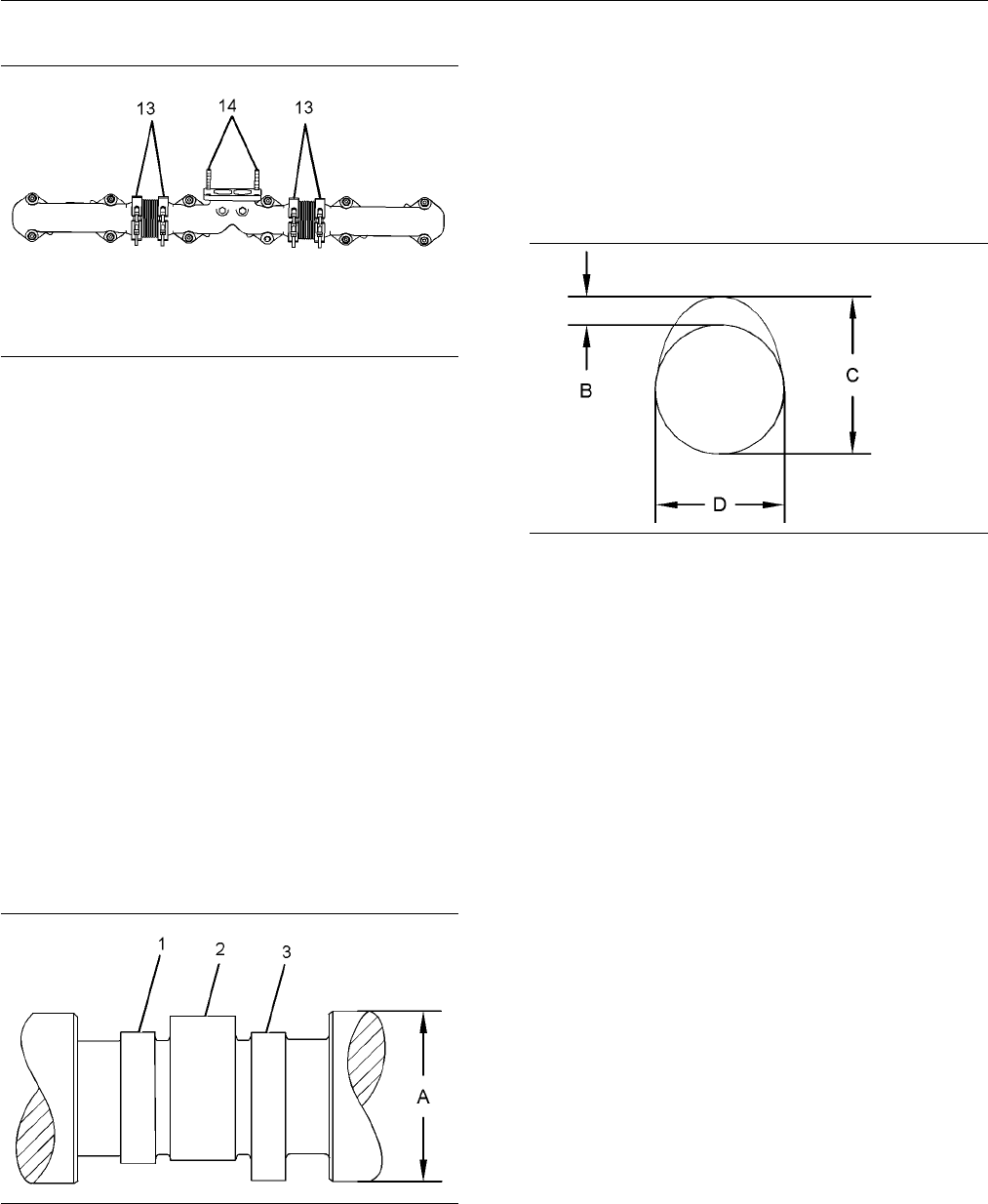

g01397693
Illustration 24
(13) Torque for the clamps .................. 8.5 ± 1.0 N·m
(75±9lbin)
Note: Apply 4C-5599 Anti-Seize Compound to the
threads of the taperlock studs before assembly.
(14) Torque for the taperlock studs ......... 35 ± 5 N·m
(26±4lbft)
i02815205
Camshaft
SMCS Code: 1
210
Part No.: 246-4410, 260-9307
S/N: DWB1-U
p
Part No.: 246-4410, 260-9307
S/N: SXC1-U
p
Part No.: 260-9307
S/N: WDR1-U
p
g01398108
Illustration 25
(1) Exh aus
t lobe
(2) Inject
or lobe
(3) Inlet l
obe
Note: The end of the camshaft that is marked “F”
must be placed a
t the front of the engine. Lubricate
the camshaft bearings, the journals, and the lobes
with a 50/50 mixture of 8T-2998 Lubricant and clean
engine oil.
(A) Diameter of camshaft journal .. 84.85 ± 0.02 mm
(3.341 ± 0.00
1 inch)
g01398109
Illustration 26
Use the following procedure to find the actual lobe lift:
1. Measure the camshaft lobe height (C).
2. Measure the base circle (D).
3. Subtract the base circle measurement in Step
2 from the camshaft lobe height in Step 1. The
difference is the actual lobe lift.
(B) Specified camshaft lobe lift
Exhaust lobe ......... 8.51520 mm (0.335243 inch)
Injector lobe (right bank) ............... 10.33685 mm
(0.406961 inch)
Injector lobe (left bank) ................. 10.34660 mm
(0.407345 inch)
Inlet lobe ............... 9.61850 mm (0.378680 inch)
The maximum permissible difference between the
actual lobe lift in Step 3 and the specified camshaft
lobe lift is 0.13 mm (0.005 inch).
