C27 and C32 Generator Set Engines Specifications Page 12

Specifications
12 RENR7167-02
Specifications Section
g01353135

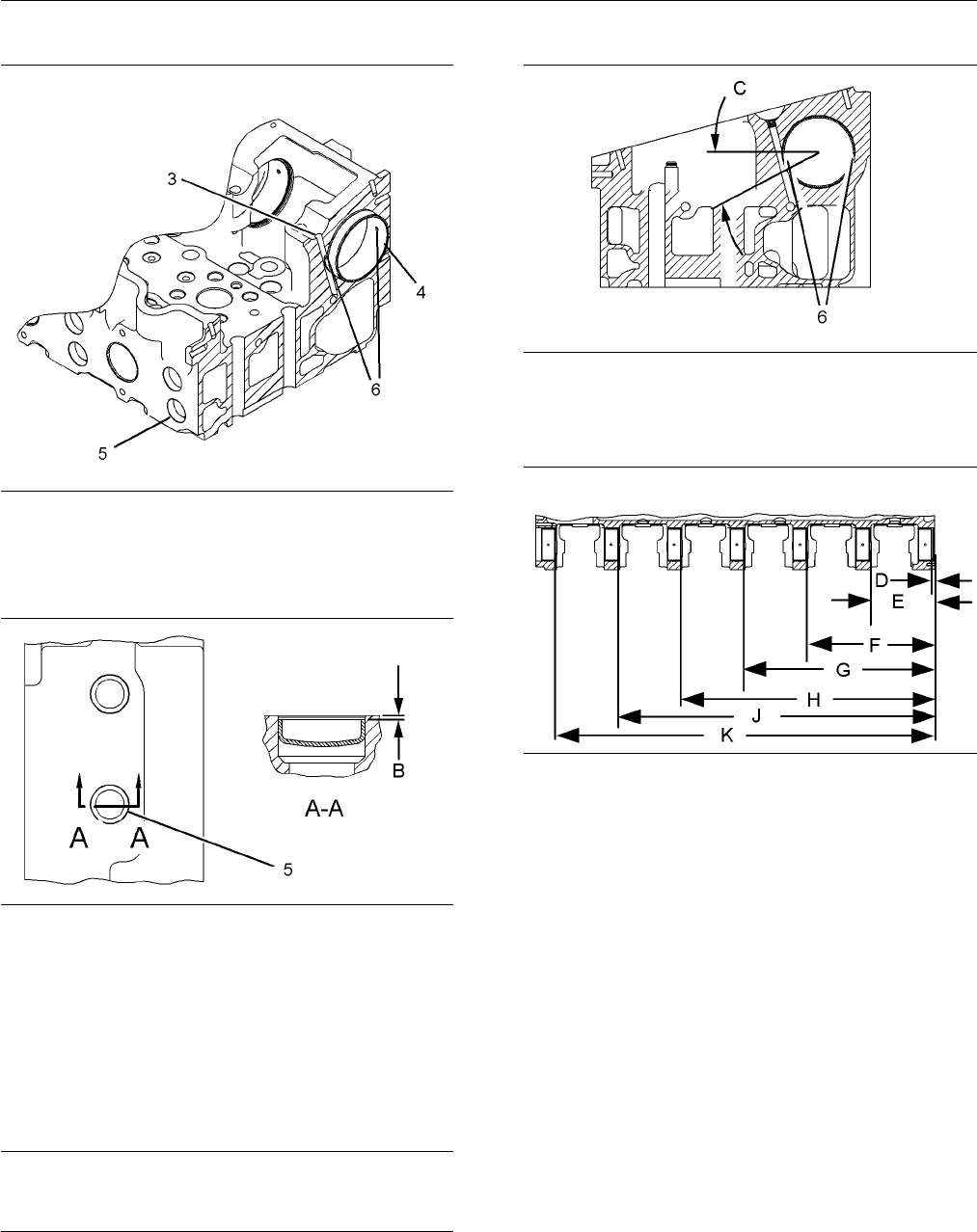

Illustration 18
(3) Oil gallery
(4) Camsha ft bear ing
(5) Typical location for cup p lug
(6) Oil holes
g01353136
Illustration 19
Cylinder hea d face
Note: Lubricate the bores for the cup plugs with
6V-6640 Sealant prior to installing the cup plugs.
(B) The cup plugs are measured from the face of the
cylinder head to the top edge of the plug. Depth
of installation .............................. 1.25 ± 0.25 mm
(0.049 ± 0.010 inch)
NOTICE
Camshaft bearings must be installed into their correct
position. Failure to do so will result in engine damage.
g01353140
Illustration 20
Orientation of bearing joint
(C) .......................... 20 ± 3 degrees below hori zontal
g01353461
Illustrat
ion 21
The depth of installation of the camshaft bearings is
very impor
tant. Install bearings (4) to the following
depths:
Installat
ion depth for camshaft bearings (4)
D ....................... 8.0 ± 0.5 mm (0.32 ± 0.02 inch)
E ................... 227.5 ± 0.
5 mm (8.96 ± 0.02 inch)
F .................. 411.7 ± 0.5 mm (16.21 ± 0.02 inch)
G ................. 595.8 ± 0.5 mm (23.46 ± 0.02 inch)
H ................. 780.0 ± 0.
5 mm (30.71 ± 0.02 inch)
J .................. 964.1 ± 0.5 mm (37.96 ± 0.02 inch)
K ................ 1140.3 ± 0.5 mm (44.89 ± 0.02 inch)
