C27 and C32 Generator Set Engines Specifications Page 23

Specifications
RENR7167-02 23
Specifications Section
g01399550

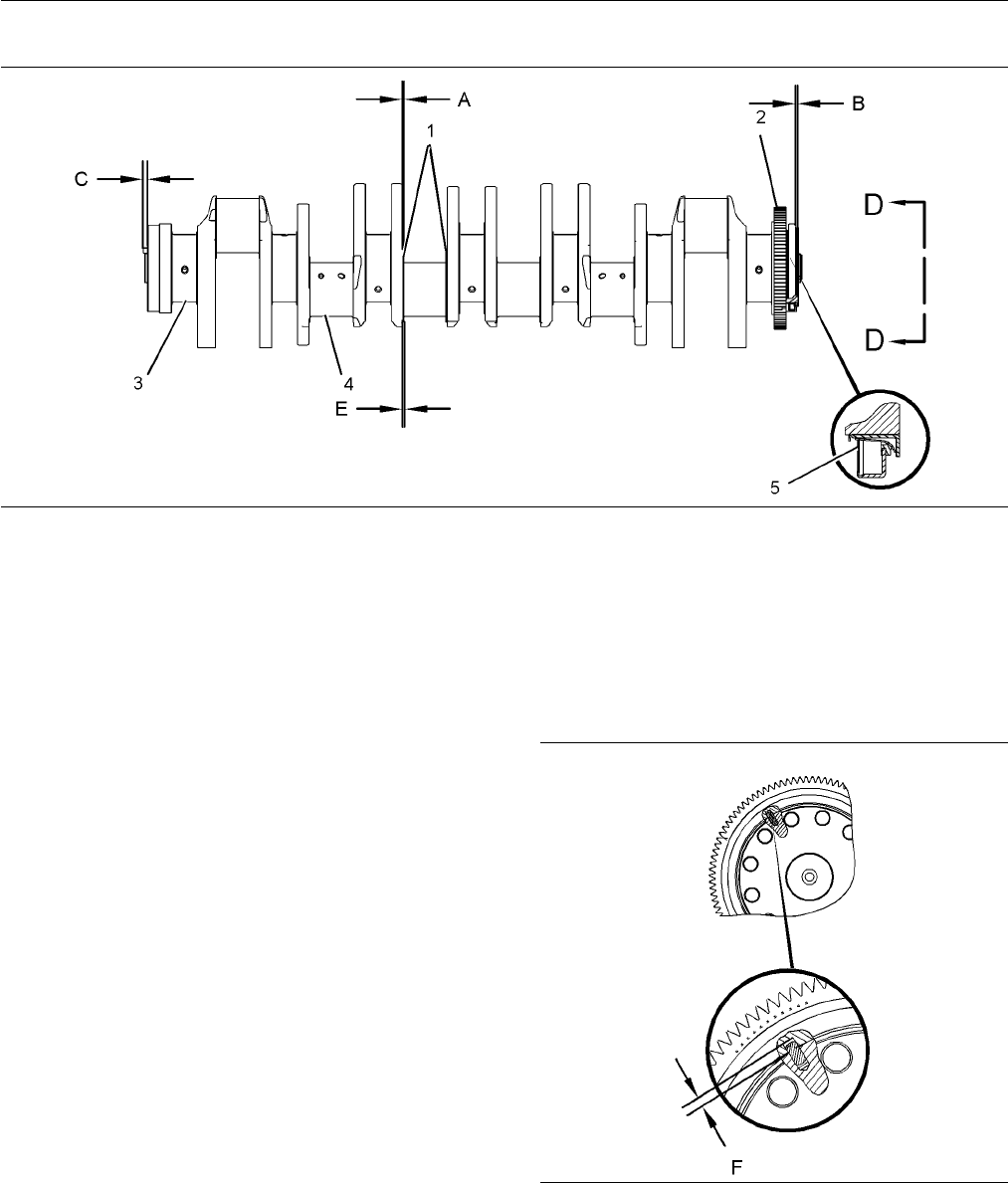

Illustration 4 3
Typical ex ample
(3) Main journal (4) Rod journa l
Note: Thrust plates (1) are used on the center main
bearing only.
(A) Thickness of new thrust plate .... 5.74 ± 0.04 mm
(0.226 ± 0.002 inch)
Note: Check assembled installation depth with the
crankshaft in any axial position.
(B) Assembled installation depth ... 4.68 to 5.28 mm
(0.184 ± 0.208 inch)
(C) Maximum extension of dowel from the crankshaft
face ....................................... 8.4 mm (0.33 inch)
(E) End play
New crankshaft ......................... 0.10 to 0.60 mm
(0.004 to 0.024 inch)
Maximum end play with used bearings .. 0.89 mm
(0.035 inch)
(2) The crankshaft gear must be installed on the
crankshaft with the timing mark “V” on the outside
of the crankshaft.
(3), (4) Refer to the Specifications, “Connecting Rod
and Main Bearing Journals” for more information.
Note: The seal and the sleeve should not be used if
the seal and the sleeve have been separated.
(5) The front crankshaft seal is installed on the
front of the crankshaft. The seal driver can not
contact the seal inside a 177.80 ± 0.25 mm
(7.000 ± 0.010 inch) diameter.
Note: The seal and the sleeve can not be used if the
seal and the sleeve have been separated.
Note: The sleeve must be flush with the front face of
the crankshaft within 0.13 mm (0.005 inch).
g01399556
Illustration 44
View D-D
(F) Extension of the dowel from the surface of the
crankshaft ......... 4.1 ± 0.5 mm (0.16 ± 0.02 inch)
