C27 and C32 Generator Set Engines Specifications Page 39

Specifications
RENR7167-02 39
Specifications Section
Output voltage ............................................. 28 ± 1 V
Note: Tighten the bolt (1) before tightening the
mounting bolt.
(1) Torque for the bolt .... 88.4 ± 6.8 N·m (65 ± 5 lb ft)
(2) Final inst
allation torque for the flange
nut ................................ 102 ± 7 N·m (75 ± 5 lb ft)
(3) (B+) termi
nal. Final installation torque for the
nut ............................. 6.2 ± 0.6 N·m (55 ± 5 lb in)
Note: Usea7/1
6 ring terminal for (B+) terminal.
(4) The peak voltage for (R) terminal must not be
less than the o
utput voltage for (B+) terminal.
(5) (B-) terminal. Final installation torque for the
screw .................... 2.25 ± 0.
25 N·m (20 ± 2 lb in)
(6) Voltage regulator assembly
Voltage setting ............................. No adjustment
Permissible voltage range .................. 27 to 29 V
i02703924
Coolant Tem perature Sensor
SMCS Code: 1906
Part No.: 264-4297
g01089060

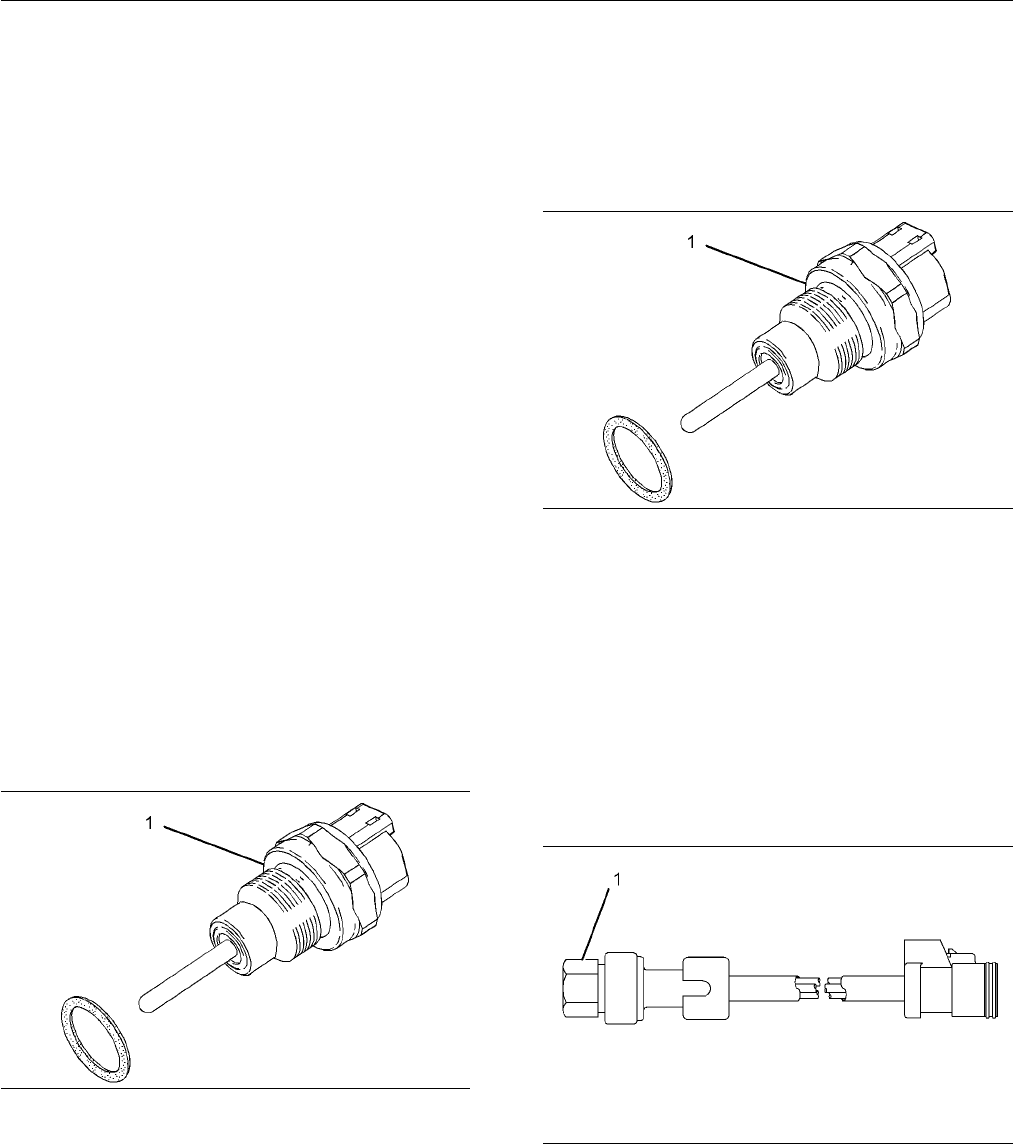

Illustration 76
(1) Final installation torque for temperature
sensor ............................ 20 ± 3 N·m (15 ± 2 lb ft)
Output type ................................................... Passive
i02806498
Fuel Temperature Sensor
SMCS Code: 1922
Part No.: 264-4297
g01089060
Illustratio
n77
(1) Final installation torque for temperature sensor
group ............................. 20 ± 3 N·
m (15 ± 2 lb ft)
Output type ................................................... Passive
i02665531
Fuel Pressure Sensor
SMCS Code: 1718
Part No.: 194-6725
g01190345
Illustration 78
(1) Final installation torque for the pressure sensor
group .......................... 10 ± 2 N·m (90 ± 18 lb in)
Operating voltage ........................... 5.00 ± 0.25 VDC
Operating temperature ........................ −40 to 125 °C
(−40 to 257 °F)
Maximum operating pressure (absolute
pressure) ..................................... 1135 kPa (165 psi)
