C27 and C32 Generator Set Engines Specifications Page 40

Specifications
40 RENR7167-02
Specifications Section
i02665532
Engine Oil Pressure Sensor
SMCS Code: 1924
Part No.: 274-6719
g01155331

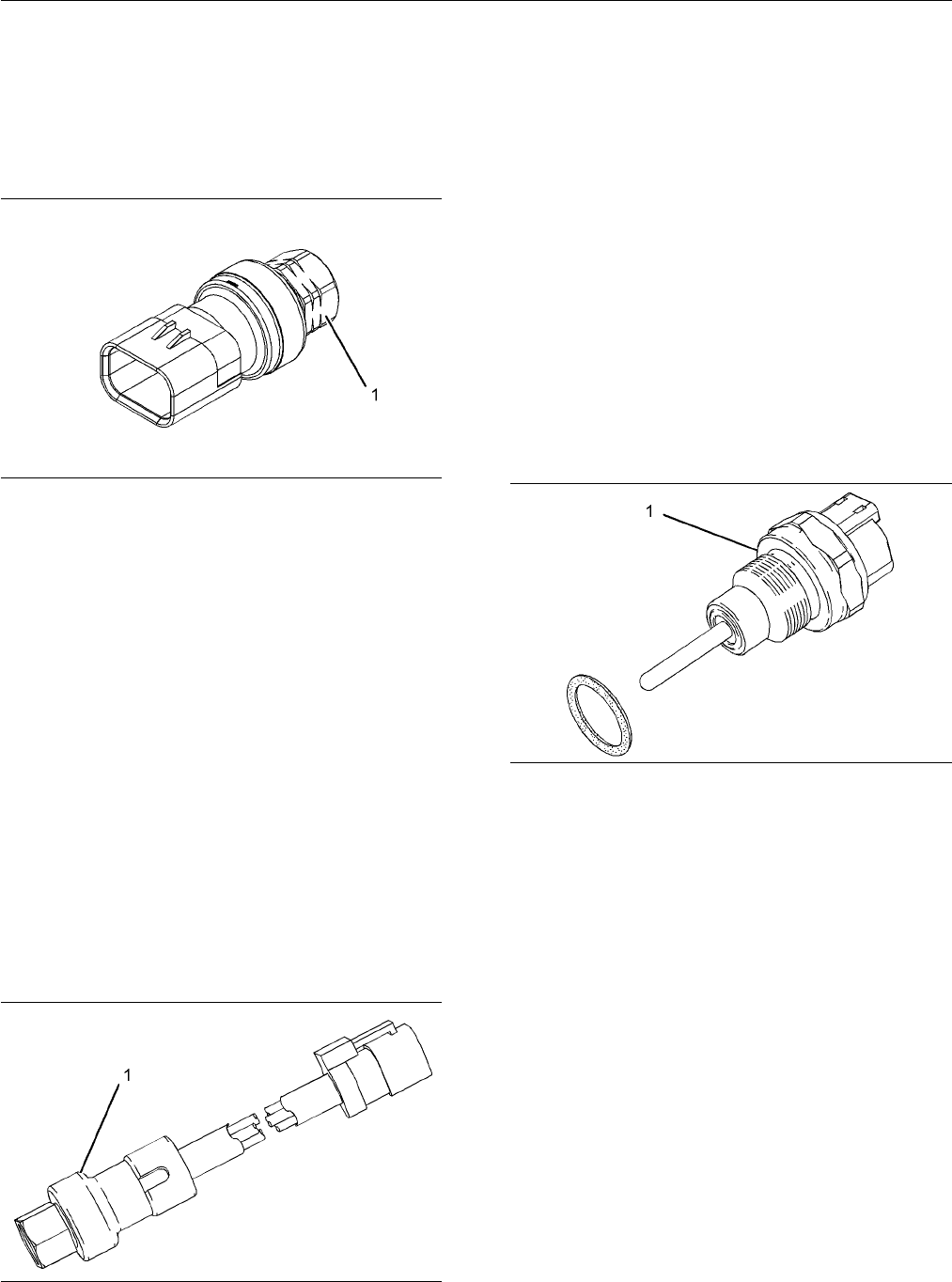

Illustratio
n79
Note: Prior to installing the pressure sensor group
onto the engi
ne, apply 5P-3413 Pipe Sealant to the
first three threads of the pressure sensor group.
(1) Final ins
tallation torque for the pressure sensor
group .......................... 10 ± 2 N·m (90 ± 18 lb in)
Operating v
oltage ............................... 5.0 ± 0.5 VDC
Operating temperature ........................ −40 to 125 °C
(−40 to 257 °
F)
Maximum operating pressure (absolute
pressure) ......... ............................ 1
135 kPa (165 psi)
i02606267
Engine Oil Pressure Sensor
SMCS Code: 1924
Part No.: 194-6725
g01068621
Illustration 80
(1) Sensor assembly
Tighten sensor assembly to the following
torque. ............................... 10 ± 2 N·m (90 ± 18 lb in)
Operating temperature ........................ −40 to 125 °C
(−40 to 257 °F)
Maximum input pressure (absolute
pressure) ..................................... 1135 kPa (165 psi)
Input supply voltage ............................. 5 ± 0.25 VDC
i02806477
Engine Oil Temperature Sensor
SMCS Code: 1929
Part No.: 197-8392, 264-4297
g01089060
Illustration 81
(1) Final installation torque for the temperature
sensor group .................. 20 ± 3 N·m (15 ± 2 lb ft)
Output type ................................................... Passive
