C27 and C32 Generator Set Engines Specifications Page 32

Specifications
32 RENR7167-02
Specifications Section

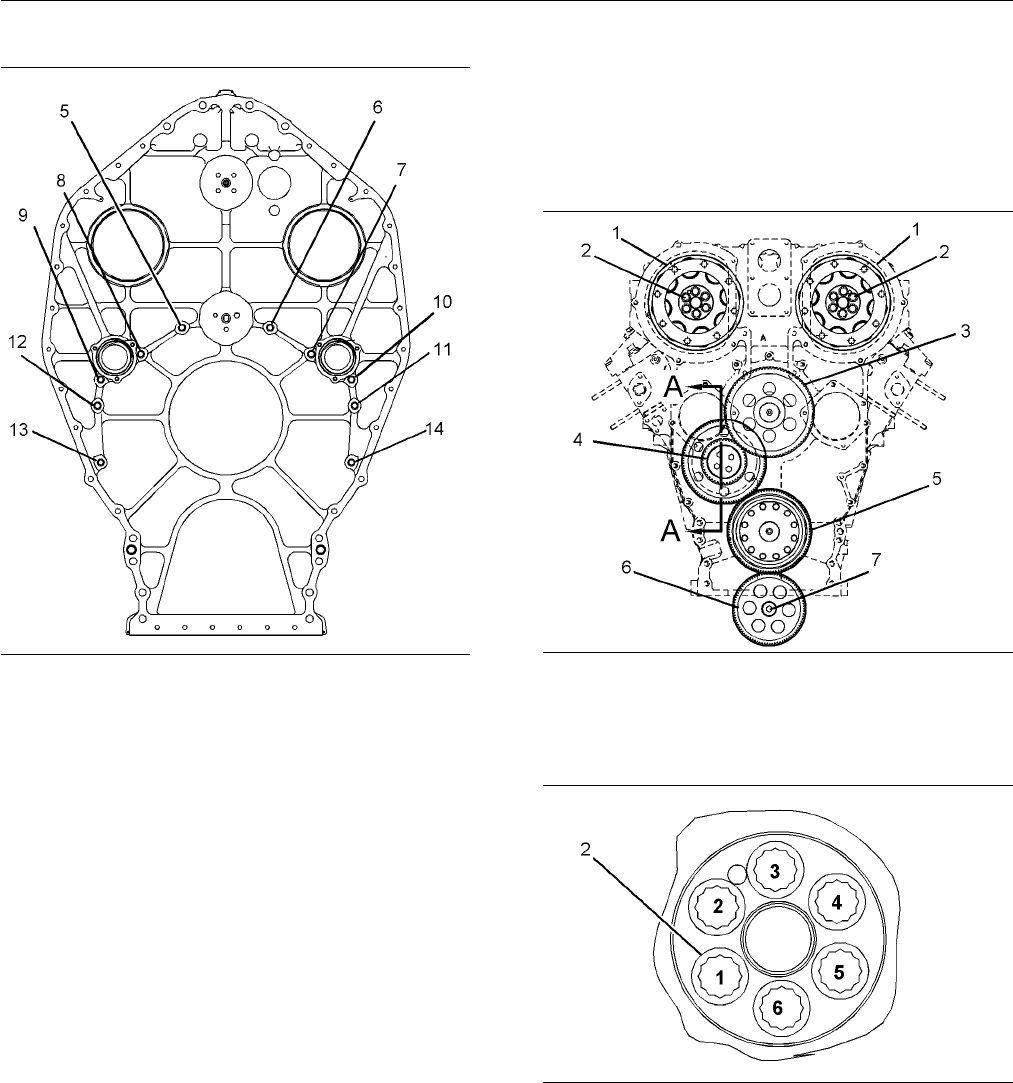

g01399869
Illustrat
ion 5 9
Rear view
Use the following procedure to tighten the bolts for
the rear housing:
1. Start with bolt (5) and continue to tighten all of the
remaining bolts in the numerical sequence that is
showntoa
torqueof55±10N·m(41±7lbft).
•
Bolt (5) and bolt (6) are 3/8-16 X 1 3/4 inches.
•
Bolts (7) through bolts (14) are 3/8-16 X 2 1/4
inches.
i02801133
Gear Group (Front)
SMCS Code: 1206
Part No.: 235-0993
g01399881
Illustration 60
(1) Damper group
(3) Gear assembly
(5) Crankshaft gear
(6) Gea r
g01399901
Illustration 61
Tightening sequence
Note: Tighten the bolts for the camshaft gear in the
sequence1,4,2,5,3,6,1,4.RefertoIllustration61.
(2) Torque for the 12 bolts of the camshaft
gear ....................... 240 ± 40 N·m (175 ± 30 lb ft)
(4) Lubricate the shaft, the bearing bore, and the
thrust faces of the idler gear assembly with clean
engine oil.
