C27 and C32 Generator Set Engines Specifications Page 36

Specifications
36 RENR7167-02
Specifications Section
i02801662
Flywhee l Housing
SMCS Code: 1157
Part No.: 239-3646
S/N: DWB1-Up
Part No.: 239-3646
S/N: SXC1-Up
g01400129

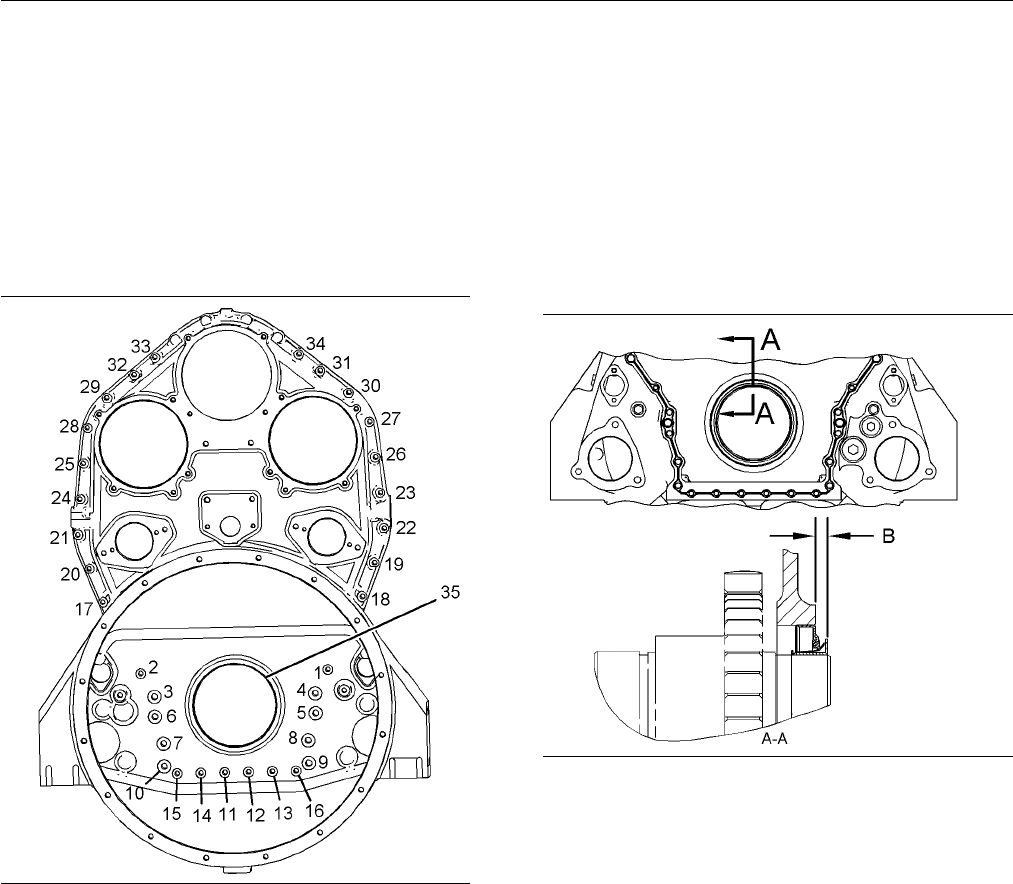

Illustration 69
Rear view
Note: The front face of the flywheel housing and the
rear face of the housing for the rear gear group must
be free of oil, fuel, water, assembly components and
any other contaminants during assembly. The gasket
for the flywheel housing must be free of contaminants
during assembly.
1. In the numerical sequence that is shown in
Illustration 69, torque bolt (1) and bolt (2) to
55 ± 10 N·m (41 ± 7 lb ft). Bolts (1) and (2) are
3/8-16 X 4 3/4 inches.
2. In the numerical sequence that is shown in
Illustration 69, torque bolt (3) through bolt (10) to
135 ± 20 N·m (100 ± 15 lb ft). Bolts (3) through
bolts (10) are 1/2-13 X 5 inches.
3. In the numerical sequence that is shown in
Illustration 6
9, torque bolt (11) through bolt (34) to
47 ± 9 N·m (35 ± 7 lb ft). Bolts (11) through bolts
(34) are 3/8-16 X 2 1/2 inches.
(35) The seal driver must not contact the seal within
the following diameter. ........... 177.80 ± 0.25 mm
(7.000 ± 0.01
0 inch)
Note: The seal and the sleeve must not be used if
the seal and t
he sleeve have been separated.
g01404114
Illustration 70
Note: Check assembled installation depth of the
crankshaft seal group with the crankshaft in any axial
position.
(B) Assembled installation depth ....... 5.8 to 6.4 mm
(0.23to0.25inch)
