C27 and C32 Generator Set Engines Specifications Page 30

Specifications
30 RENR7167-02
Specifications Section

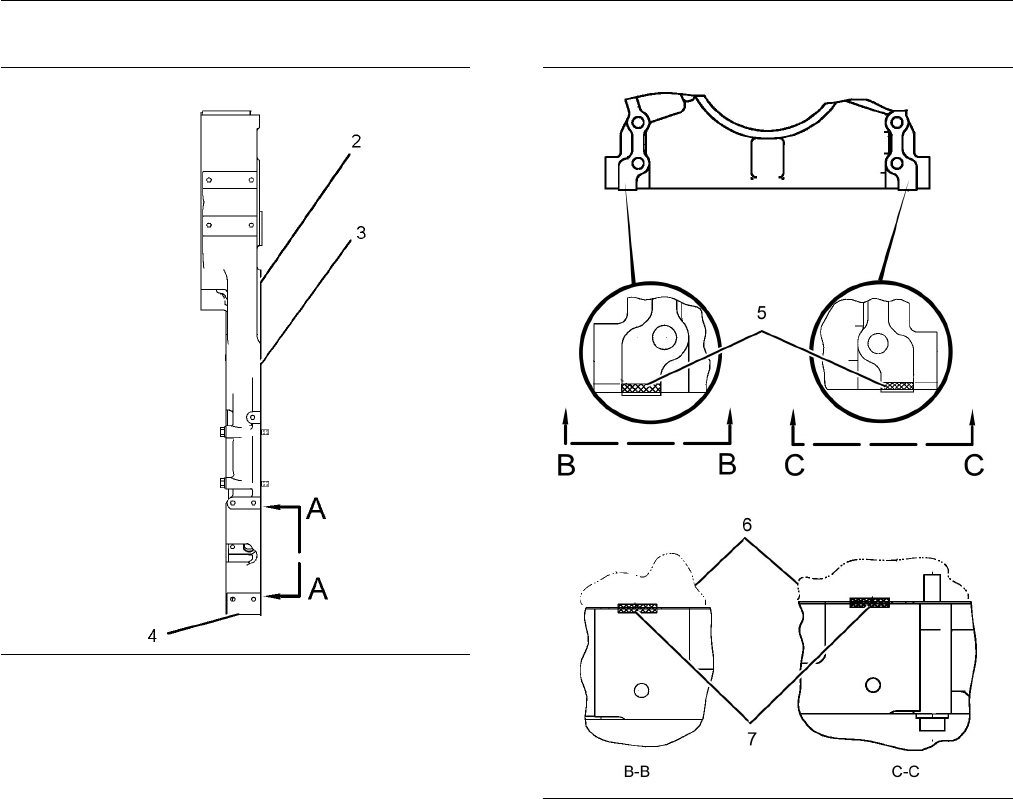

g01399843
Illustrat
ion 5 5
Note: The rear face of the front housing assembly (3)
and the fr
ont face of the cylinder block must be free of
oil, fuel, water, dirt and any other contaminants during
assembly. The gasket for the front housing assembly
must also
be free of contaminants during assembly.
Note: The gasket (2) for the front housing assembly
must be t
rimmed after assembly with the face (4) so
that the gasket is flush.
g01399846
Illustration 56
View A-A
(6) Cylinder block
(5) Apply a continuous bead of 4C-9612 Silicone
Sealant immediately prior to assembling the front
housing assembly. After assembly of the front
housing assembly, remove excess sealant from
the flange with a straight edge.
(7) A pply 4C-9 612 Silicone Sealant to the T-shaped
joints immediately prior to the installation of the
gasket for the pan. The application of the sealant
should cover the entire width of the T-shaped
joints, as shown.
