C27 and C32 Generator Set Engines Specifications Page 5

Specifications
RENR7167-02 5
Specifications Section
Note: The front of the engine is opposite of the
flywheel end of t
he engine. The left side of the engine
and the right side of the engine is viewed from the
flywheel end of the engine.
Note: Number one cylinder is the front cylinder
on the left side of the cylinder block. Number two
cylinder is t
he front cylinder on the right side of the
cylinder block.
Firing order
(injection
sequence) .............. 1, 10, 9, 6, 5, 12, 11, 4, 3, 8, 7, 2
i02774897
Fuel Transfer Pump
SMCS Code: 1256
Part No.: 286-2531
g01391562

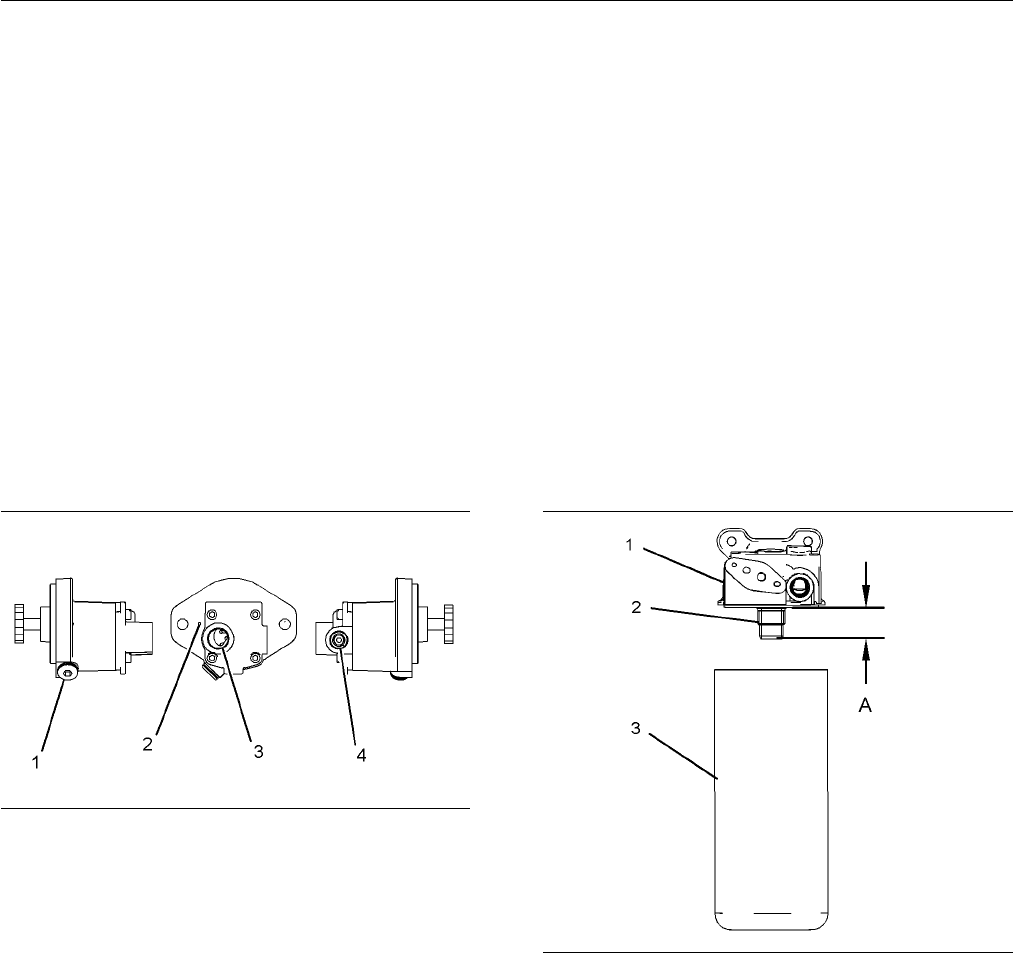

Illustration 3
(1) Pressure regulating valve
(2) Weep hole
(3) Inlet port
(4) O utlet port
Note: Maximum inlet pressure to the pump shall not
exceed 69 kPa (10 psi).
When the fuel transfer pump is using diesel fuel, the
fuel transfer pump has the following specifications:
Run the pump at 2940 rpm. The full bypass pressure
should be the following value. ........... 716 to 786 kPa
(104 to 114 psi)
Run the pump at 840 rpm. The flow at 550 kPa
(80psi)mustbe6.0L/min(1.6USgpm).
Run the pump at 2940 rpm. The flow at 650 kPa
(94 psi) must be 9.0 L/min (2.38 US gpm).
Runthepumpat120rpmwiththeinletopentothe
atmosphere for 10 seconds. Block the inlet. The
pump must maintain vacuum of 30 kPa (4.5 psi)
minimum in 30 seconds.
Run the pump at 840 rpm with the inlet open to the
atmosphere for
10 seconds. Block the inlet. The
pump must maintain vacuum of 45 kPa (6.5 psi)
minimum in 30 seconds.
Run the pump at 120 rpm with a blocked inlet that is
full of fuel for 30 seconds. The pump inlet must have
asuctionlif
t of 60.9 kPa (18 In Hg) minimum.
When the pump is viewed from the drive gear
end or the dri
ve shaft, the rotation of the pump is
counterclockwise.
i02786381
Fuel Filter Base
SMCS Code: 12
61; 1262
Part No.: 237-9311
g01391879
Illustration 4
(1) Base
(3) Fuel filter
(2) Torque for the stud ..... 70 ± 15 N·m (50 ± 11 lb ft)
(A) Apply 154-9731 Thread Lock Compound on
the tapered end of the stud to the following
distance. ......... 39.5 ± 0.5 mm (1.56 ± 0.02 inch)
