C27 and C32 Generator Set Engines Specifications Page 6

Specifications
6 RENR7167 -02
Specifications Section
i02792816
Electron ic Unit Inject or
Mechanism
SMCS Code: 1290
Part No.: 235-
1401, 235-1402
S/N: DWB1-Up
Part No.: 235-
1402, 253-8352, 26 1-0048
S/N: SXC1-Up
Part No.: 261-0
048
S/N: MED1-Up
Part No.: 235-1
401, 261-0048
S/N: WDR1-Up

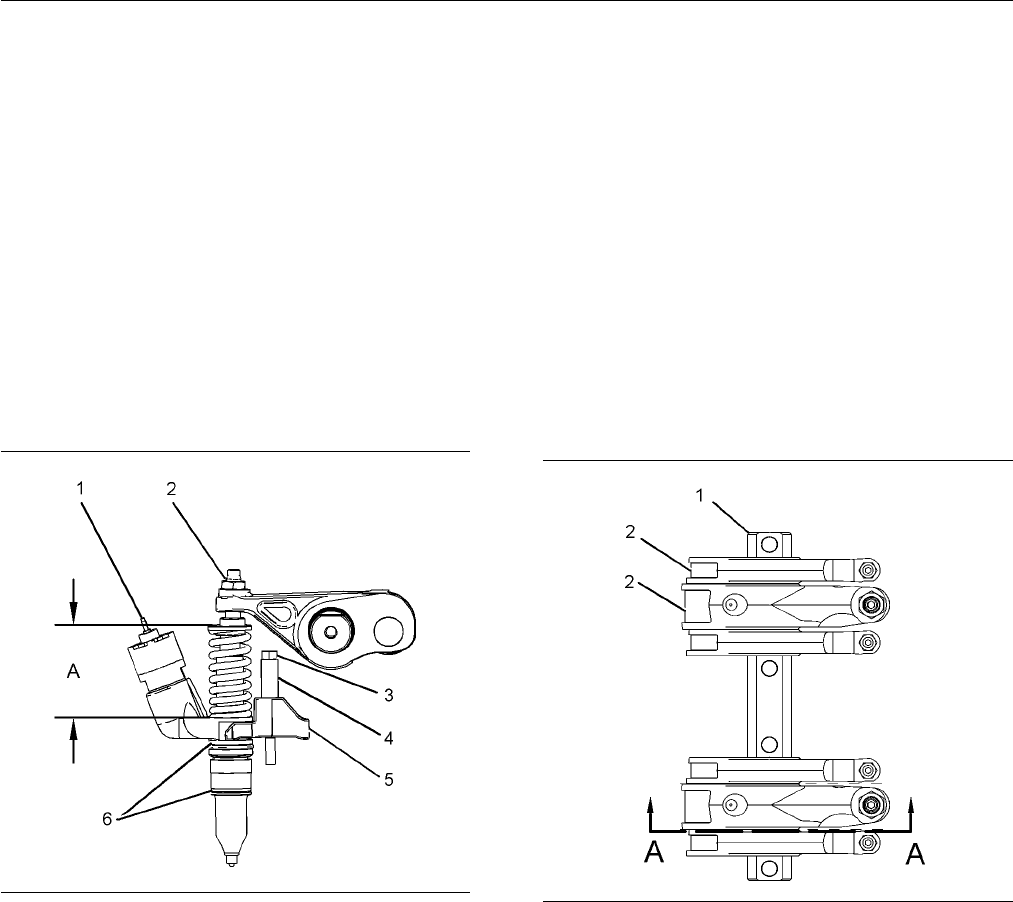

g01395719
Illustration 5
(4) S pacer
Note: Refer to Testing and Adjusting, “Electronic Unit
Injector - Adjust” for the correct procedure for setting
the lash on the electronic unit injector.
Note: Before installation of the unit injector, lubricate
the top two O-ring seals (6) with a 50/50 mixture of
clean engine oil and 8T-2998 Lubricant.
(1) Torque for cap nut .. 2.50 ± 0.25 N·m (22 ± 2 lb in)
(2) Torque for nut ............ 100 ± 10 N·m (75 ± 7 lb ft)
(A) Adjust the unit injector height from the timing seat
to the following distance. ............. 78.0 ± 0.2 mm
(3.07 ± 0.01 inch)
Use the following procedure to tighten the bolt (3)
for clamp (5):
1. Tighten the bolt for the clamp to 55 ± 10 N·m
(41±7lbft).
2. Loosen the bolt for the clamp until the bolt is finger
tight.
3. Tighten the bolt for the clamp again to 55 ± 10 N·m
(41±7lbft).
i02794899
Electronic Unit In jector Rocker
Arm
SMCS Code: 1123
Part No.: 243-2468, 280-8043, 301-5349
g01395736
Illustration 6
Typical example
(1) Shaft as sembly
(2)Rockerarm
