C27 and C32 Generator Set Engines Specifications Page 31

Specifications
RENR7167-02 31
Specifications Section
i02801118
Housing (Rear)
SMCS Code: 1157
Part No.: 233-2462
g01399863

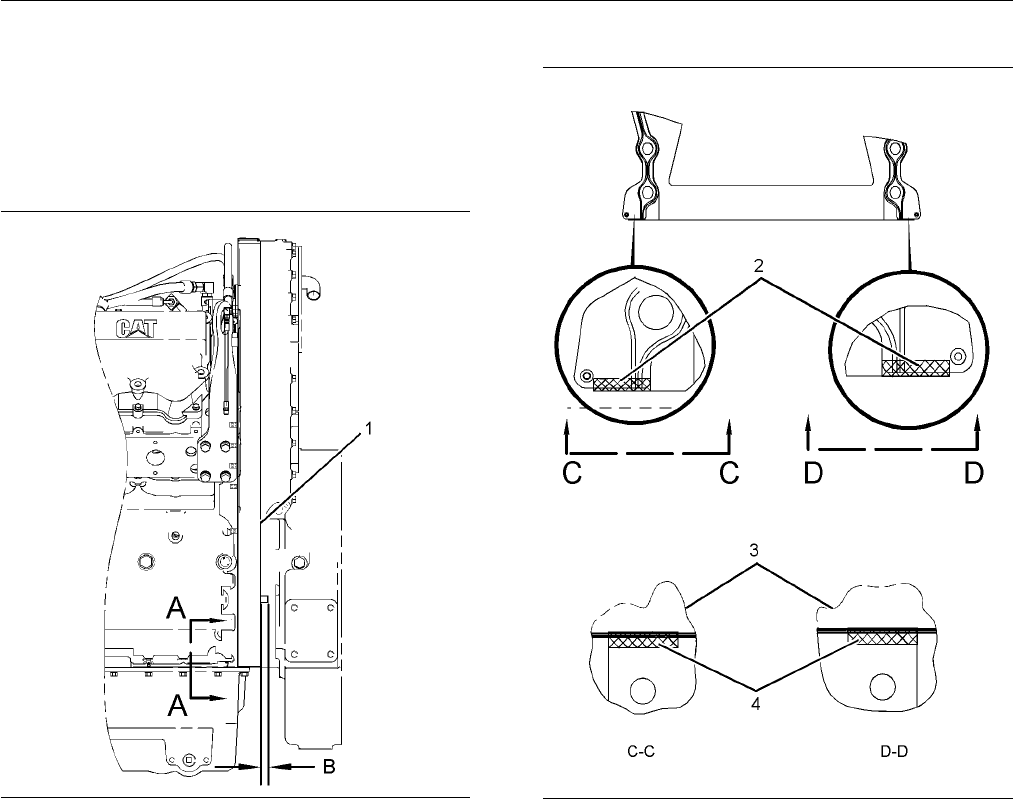

Illustration 57
Left side view of engine
Note: The rear face of the cylinder block and the
front face of the rear housing (1) must be free of
oil, fuel, water, dirt, assembly compounds and any
other contaminants during assembly. The gasket for
the rear housing must also be free of contaminants
during assembly.
(B) Dowel extension from the rear housing at two
places ............. 19.0 ± 0.5 mm (0.75 ± 0.02 inch)
g01399864
Illustration 58
View A-A
(3) Cylinder block
(2) Apply a continuous bead of 230-6262 Sealant
immediately prior to assembling the rear housing.
After assembly of the rear housing, remove any
excess sealant from the flange with a straight
edge.
(4) A pply 230-6262 Sealant to the T-shaped joints
immediately prior to the installation of the gasket
for the pan. The application of the sealant should
cover the entire width of the T-shaped joints, as
shown.
