C27 and C32 Generator Set Engines Specifications Page 35

Specifications
RENR7167-02 35
Specifications Section
Note: Tighten the twelve bolts in a circular pattern.
The circular pa
ttern can be in a clockwise direction
or in a counterclockwise direction.
2. Torque each bo
ltto100±5N·m(75±4lbft).
Note: Tighten the twelve bolts again with the circular
pattern that w
as used in Step 2.
3. Turn each bolt by an additional 180 ± 5 degrees.
i02801652
Flywhee l Housing
SMCS Code: 1157
Part No.: 272-0246
g014001
25

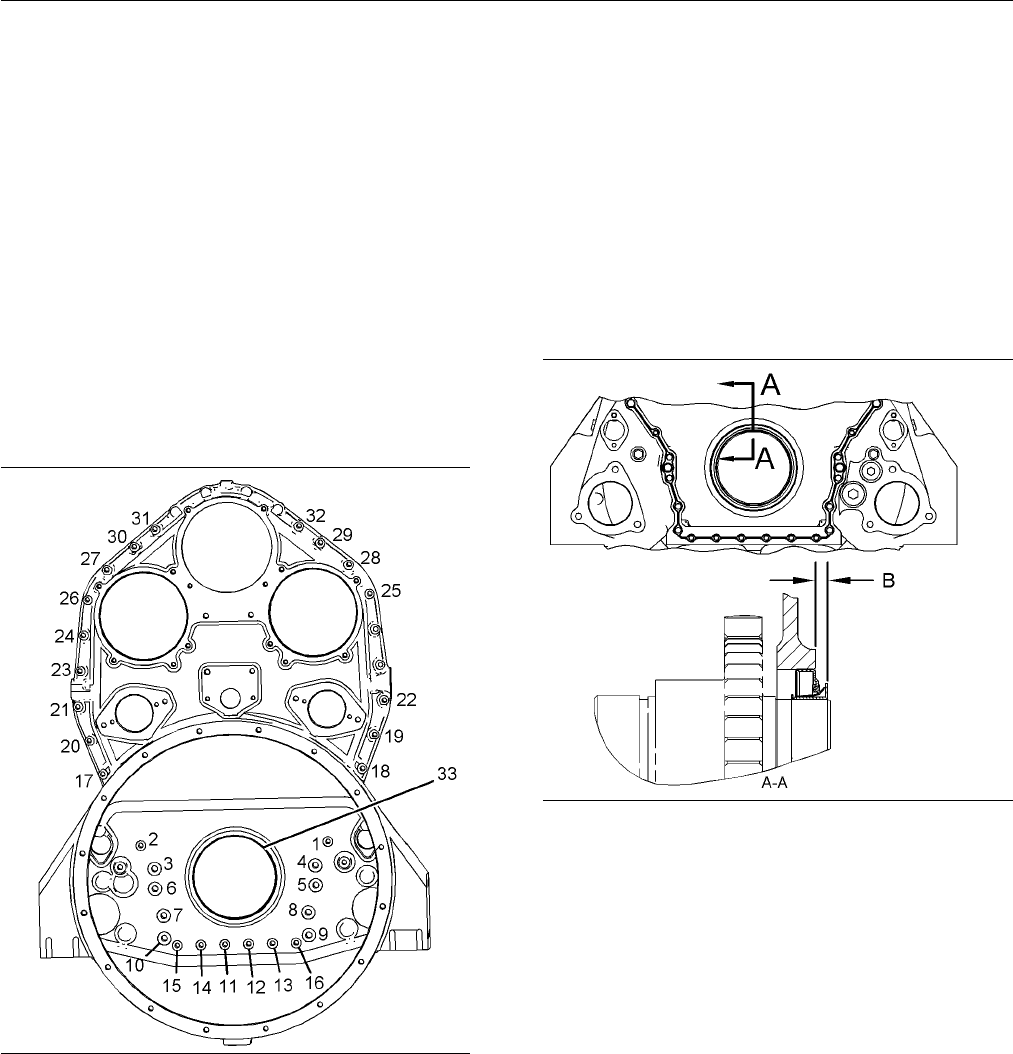

Illustration 67
Rear view
Note: Th
e front face of the flywheel housing and the
rear face of the housing for the rear gear group must
be free of oil, fuel, water, assembly components and
any othe
r contaminants during assembly. The gasket
for the flywheel housing must be free of contaminants
during assembly.
Note: The seal and the sleeve must not be used if
the seal and the sleeve have been separated.
1. In the numerical sequence that is shown in
Illustration 67, torque bolt (1) and bolt (2) to
55 ± 10 N
·m (41 ± 7 lb ft). Bolts (1) and (2) are
3/8-16 X 4 3/4 inches.
2. In the numerical sequence that is shown in
Illustration 6
7, torque bolt (3) through bolt (10) to
135 ± 20 N·m (100 ± 15 lb ft). Bolts (3) through
bolts (10) are 1/2-13 X 5 inches.
3. In the numerical sequence that is shown in
Illustration 67, torque bolt (11) through bolt (32) to
47 ± 9 N·m (35 ±
7 lb ft). Bolts (11) through bolts
(32) are 3/8-16 X 2 1/2 inches.
(33) The seal
driver must not contact the seal within
the following diameter. ........... 177.80 ± 0.25 mm
(7.000 ± 0.010 inch)
g01404146
Illustration 68
Note: Check assembled installation depth of the
crankshaft seal group with the crankshaft in any axial
position.
(B) Assembled installation depth ....... 5.8 to 6.4 mm
(0.23to0.25inch)
