C27 and C32 Generator Set Engines Specifications Page 19

Specifications
RENR7167-02 19
Specifications Section
i02799191

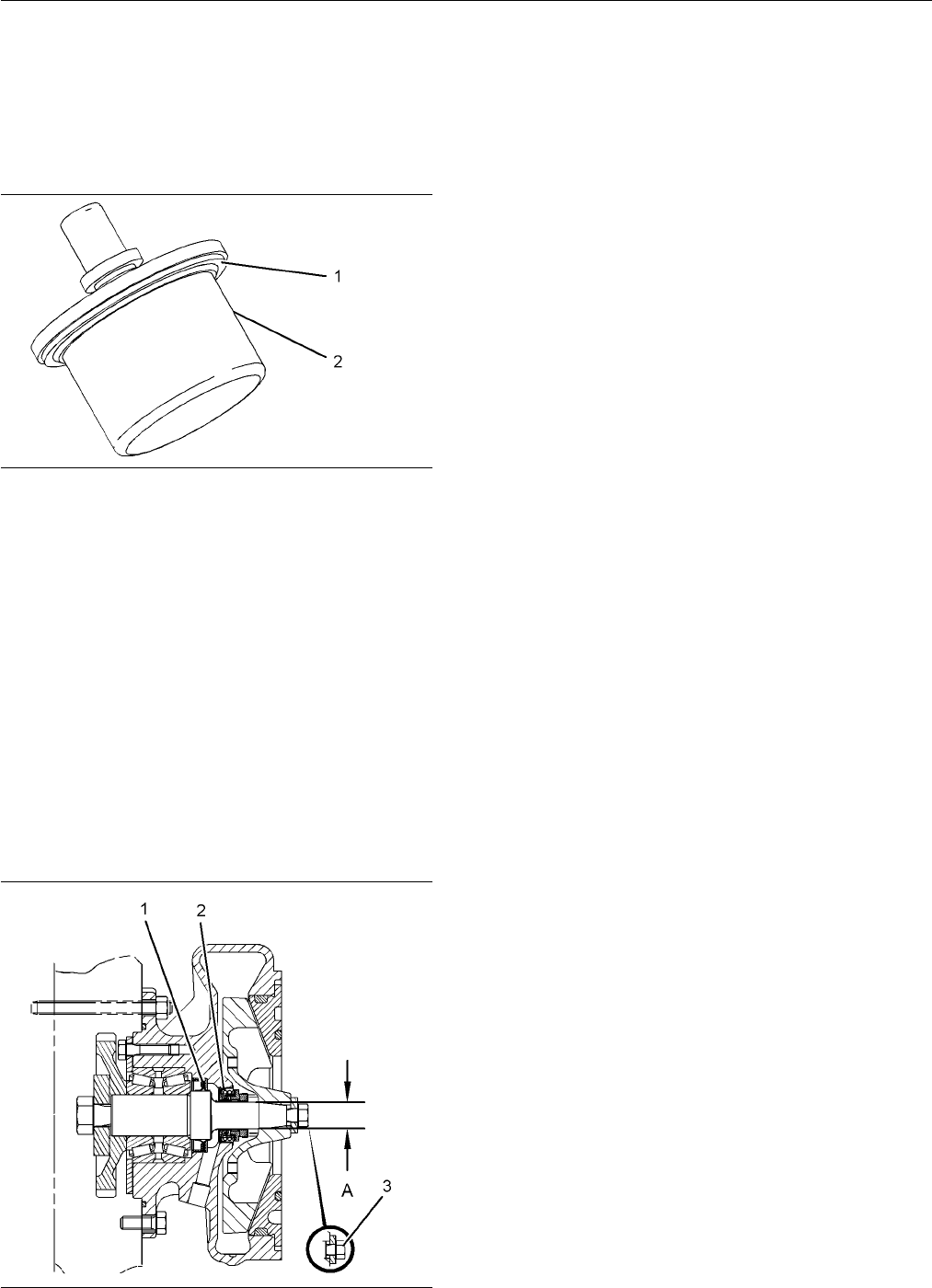

Water Temperature Regulator
SMCS Code: 1355
Part No.: 248-5513
g01056598
Illustratio
n35
Typical exam p le
(1) S eal
(2) Water tem
perature regulator
Opening temperature ........................ 81 to 84 °C
(178 to 183 °F
)
Fully open temperature ................ 92 °C (198 °F)
Minimum stroke at fully open
temperature
........................ 10.4 mm (0.41 inch)
i02798334
Water Pump
SMCS Code: 1361
Part No.: 230-4172
g01398145
Illustration 36
Note: Do not install the lip type seal (1) by hand. Use
the installati
on tool and a press to install the lip type
seal. Make sure that the primary lip is toward the
water pump drive gear. Press the lip type seal until
the lip type se
al is flush into the counterbore.
Note: Use the installation tool to install the seal
group (2). Pr
ess the seal group onto the shaft until
the stationary cup of the seal group is fully seated in
the pump housing.
(3) Torque for the bolt .......... 39 ± 3 N·m (29 ± 2 lb ft)
(A) Diameter
of the water pump
shaft ..................................... 19.100 ± 0.010 mm
(0.7520 ± 0.0004 inch)
Maximum air leakage per minute with an air pressure
test of 140 kPa (20 psi)
Water side .................................. 10 cc (0.6 cu in)
Side with oil ............................... 24 cc (1.5 cu in)
