C27 and C32 Generator Set Engines Specifications Page 42

Specifications
42 RENR7167-02
Specifications Section
Operating temperature ........................ −40 to 125 °C
(−40 to 257 °F)
Maximum operating pressure (absolute
pressure) ......................................... 472
kPa (68 psi)
i02806458
Inlet Air Temperature Sensor
SMCS Code: 1921
Part No.: 264-4297

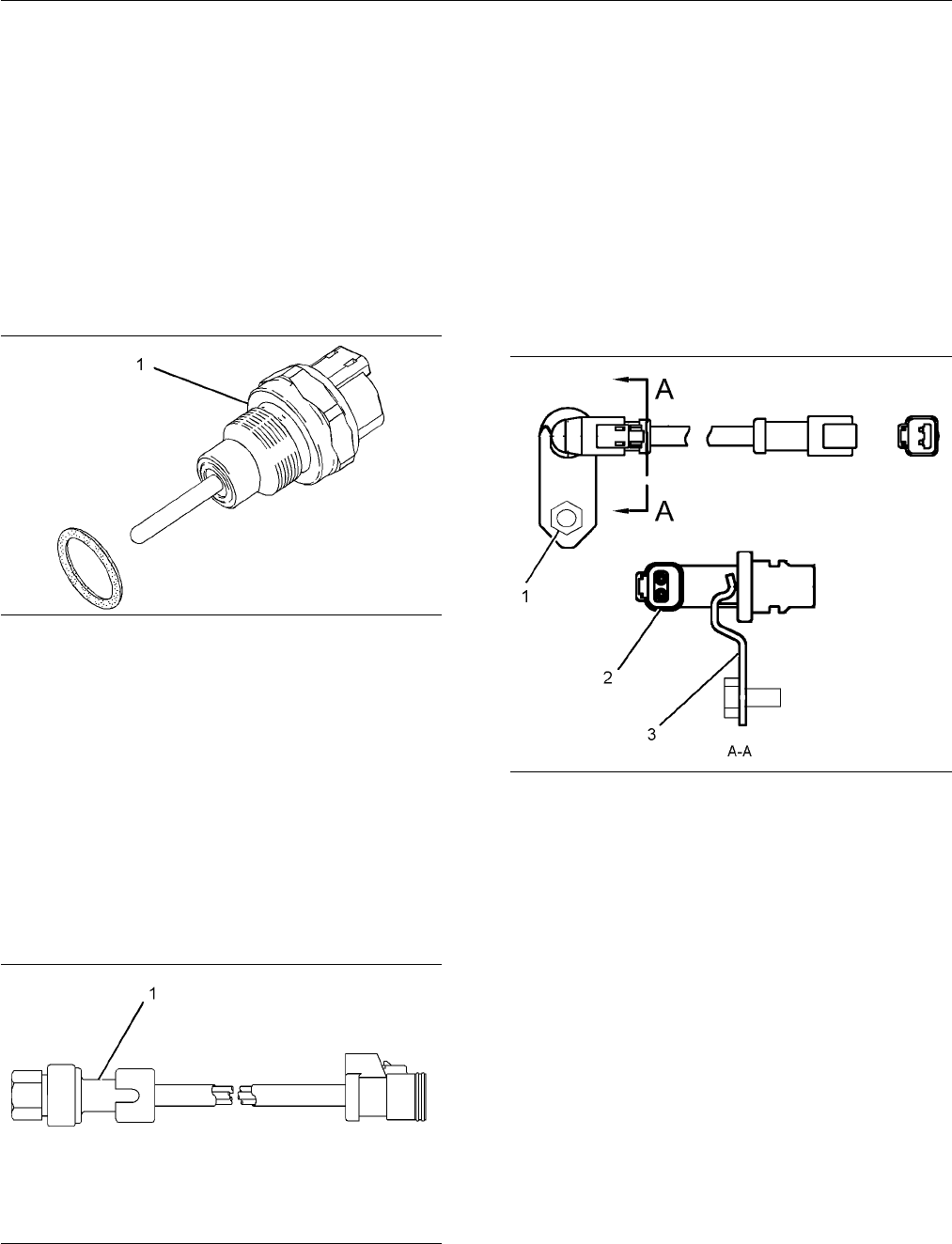

g01089060
Illustration 86
(1) Final installation torque for temperature sensor
group ............................. 20 ± 3 N·m (15 ± 2 lb ft)
Output type ................................................... Passive
i02789606
Inlet M ani
fold Air Pressure
Sensor
SMCS Code:
1058; 1923
Part No.: 194-6724
g01046622
Illustra
tion 87
(1) Tighten the sensor to the following
torque. ........................ 10 ± 2 N·
m(90±18lbin)
Operating voltage ................................. 5.00 ± 0.25V
Output type ................................................... Voltage
i02811430
Speed/Timing Sen sor
SMCS Code: 1907; 1912
Part No.: 239-2397
g01400335
Illustration 88
(1) Bolt
(2) Speed sensor
(3) Ensure that the bracket is installed in the
orientation that is shown.
Note: Ensure that the speed sensor is seated before
bolt (1) is tightened.
