C27 and C32 Generator Set Engines Specifications Page 11

Specifications
RENR7167-02 11
Specifications Section
i02697086
Cylind er Head
SMCS Code: 1100
Part No.: 223-6397, 279-7453, 284-8895
S/N: DWB1-Up
Part No.: 223-6397, 279-7453, 284-8895
S/N: SXC1-Up
Part No.: 284-8895
S/N: MED1-Up
Part No.: 223-6397, 279-7453, 284-8895
S/N: WDR1-Up
g01144556

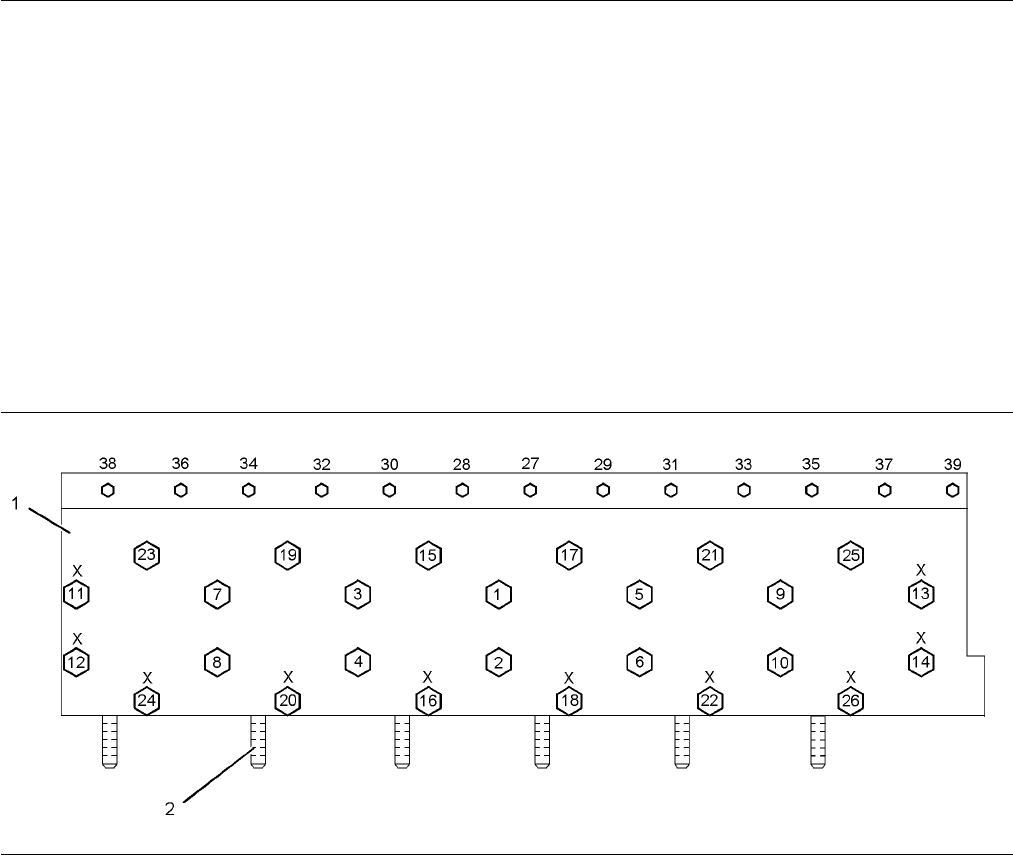

Illustration 1 7
Bolt tightening sequence
The bolts that are marked “X” are 216 mm (8.5 inch)
long.
Bolts 27 through 39 are 150 mm (5.9 inch) long.
The remainder of the bolts are 194 mm (7.6 inch)
long.
(1) Cylinder head
Use the following procedure in order to tighten the
cylinder head bolts:
Note: Apply 4C-5593 Anti-Seize Compound to the
bolt threads and to both sides of the washers for bolt
1 through bolt 26 prior to assembly.
1. Tighten bolt 1 through bolt 26 in a numerical
sequence.
Tighten the bolts to the following
torque. ..................... 270 ± 15 N·m (200 ± 11 lb ft)
2. Tighten bolt 1 through bolt 26 in a numerical
sequence.
Tighten the bolts to the following
torque. ..................... 450 ± 15 N·m (330 ± 11 lb ft)
3. Tighten bolt 1 through bolt 26 again in a numerical
sequence.
Tighten the bolts again to the following
torque. ..................... 450 ± 15 N·m (330 ± 11 lb ft)
4. Tighten bolt 27 through bolt 39 in a numerical
sequence.
Tighten the bolts to the following
torque. ............................. 45 ± 7 N·m (33 ± 5 lb ft)
(2) Exhaust manifold studs
Tighten the exhaust manifold studs that
are in each cylinder head to the following
torque. ........................... 35 ± 5 N·m (26 ± 4 lb ft)
