C27 and C32 Generator Set Engines Specifications Page 38

Specifications
38 RENR7167-02
Specifications Section
i02385671
Engine Su pp ort (Rear)
SMCS Code: 1154
Part No.: 236-8766
S/N: DWB1-Up
Part No.: 236-8766
S/N: SXC1-Up
Part No.: 236-8766
S/N: MED1-Up

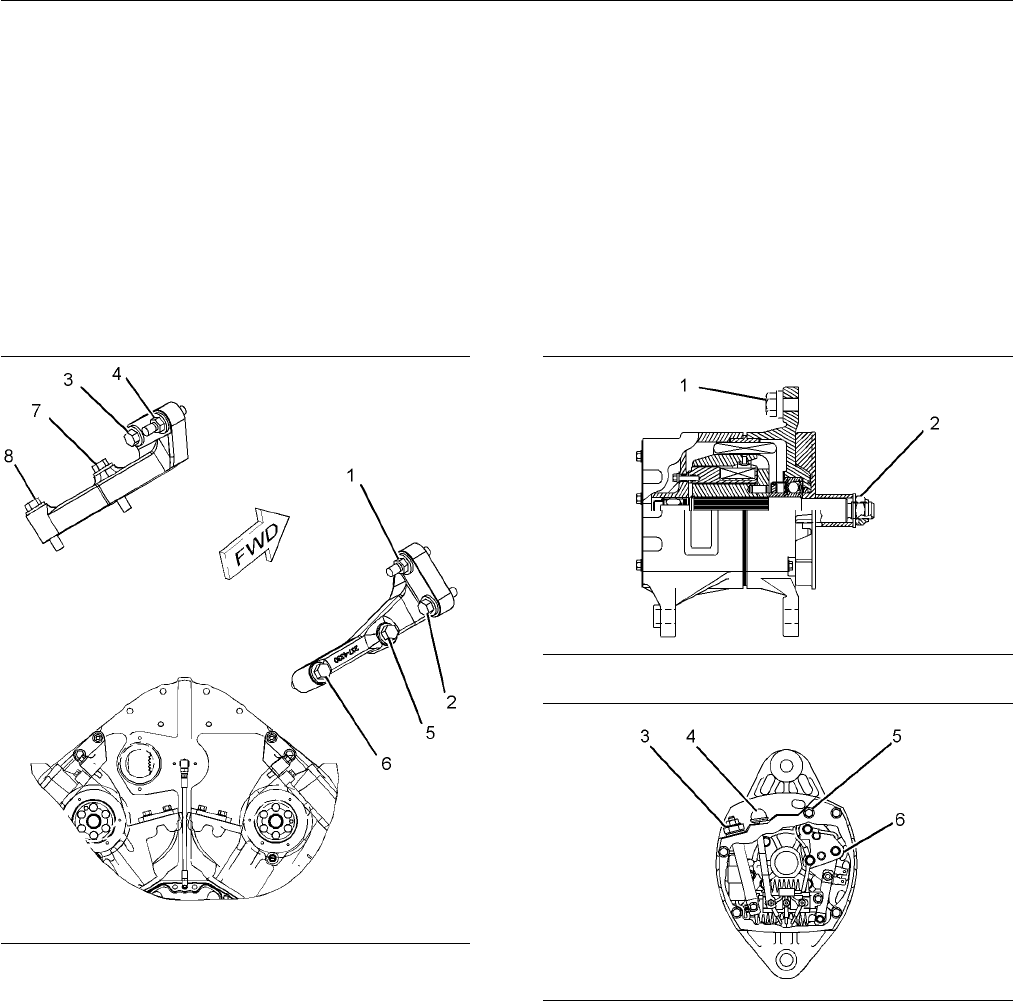

g01190146
Illustration 73
Rear view
1. Tighten bolt 1 through bolt 4 in a numerical
sequence.
Tighten the bolts to the following
torque. ............................ 5 ± 3 N·m (45 ± 25 lb in)
2. Tighten bolt 5 through bolt 8 in a numerical
sequence.
Tighten the bolts to the following
torque. ............................. 47 ± 9 N·m (35 ± 7 lb ft)
3. Again, tighten bolt 1 through bolt 4 in a numerical
sequence.
Tighten the bolts to the following
torque. ............................. 47 ± 9 N·m (35 ± 7 lb ft)
i02806500
Alternator and R egu lato r
SMCS Code: 1405
;1410
Part No.: 5N-5692
S/N: DWB1-Up
Part No.: 5N-5692
S/N: SXC1-Up
Part No.: 5N-5692
S/N: WDR1-Up
g01364499
Illustration 74
g01400391
Illustration 75
Voltage ............................................................... 24 V
Amperage ..................................................... 45
Amp
Note: Load the battery with a carbon pile 4C-4911
Battery Lo
ad Tester in order to get the maximum
alternator output.
Polarity ............................................ N
egative ground
Rotation ............................................ Either direction
Minimum full load current at 5000 rpm ...... 42.3 Amp
Minimum fu
ll load current at 2000 rpm ...... 15.8 Amp
