C27 and C32 Generator Set Engines Specifications Page 27

Specifications
RENR7167-02 27
Specifications Section

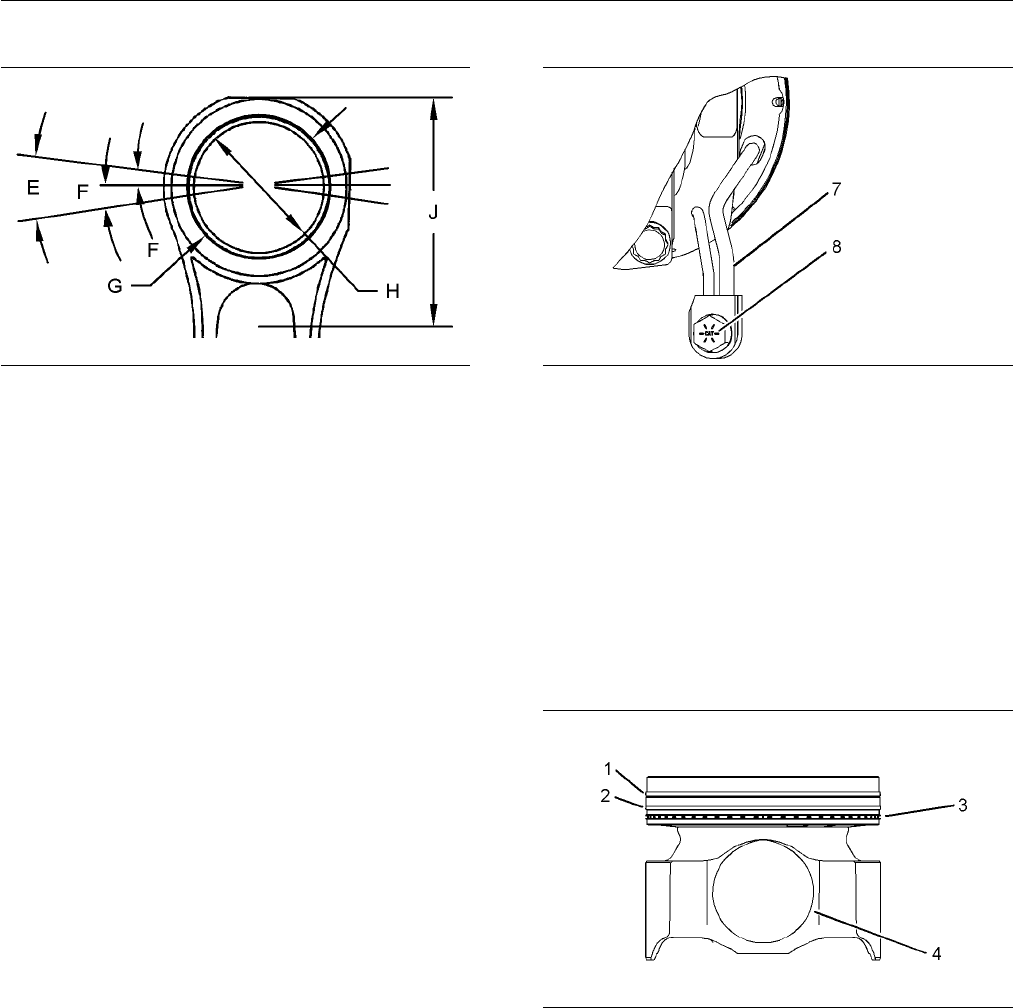

g01399634
Illustration 50
Note: The bearing joint must be located within area
(E) along the horizontal centerline of the piston pin
bore.
(F) Maximum angle from the horizontal
centerline ......................................... ± 5 degrees
Note: The bore of bearing for piston pin must be
machined after installation into the connecting rod.
(G) Outside diameter of bearing for piston
pin before installation into the connecting
rod .. 64.717 ± 0.013 mm (2.5479 ± 0.0005 inch)
(H) Dimensions for piston pin
Bore diameter of bearing for the piston pin after
machining ............................ 60.035 ± 0.008 mm
(2.3636 ± 0.0003 inch)
Diameter of piston pin .......... 59.975 ± 0.005 mm
(2.3612 ± 0.0002 inch)
Note: Apply heat to the connecting rod prior to
installation of bearing for piston pin. Do not use a
torch to heat the connecting rod.
(J) Maximum length for heating the connecting
rod during the installation of bearing for piston
pin ............................................ 95 mm (3.7 inch)
Temperature for heating for connecting
rod .............................. 175 to 260 °C (347 to 500 °F)
g01401199
Illustration 51
(7) Oil jet tube assembly
(8) Torque for the special bolt of oil jet tube
assembly ....................... 25 ± 6 N·m (18 ± 4 lb ft)
i02417361
Piston and R
ings
SMCS Code: 1214; 1215
Part No.: 239-6114
S/N: DWB1-Up
g01091802
Illustrat
ion 52
Note: Refer to Guideline for Reusable Parts for
informati
on on the pistons, the piston pins, and the
retaining rings.
The 1U-64
31 Piston Ring Groove Gauge Gp is
used for measuring the ring grooves in keystone
style pistons. Refer to the Special Instruction that is
supplied
with the Piston Ring Groove Gauge.
The 5P-3519 Piston Ring Groove Gauge Gp is
availabl
e for checking the ring grooves with straight
sides. Refer to the Guideline for Reusable Parts for
instructions on the Piston Ring Groove Gauge.
Top Piston Ring
(1) Top piston ring
