C27 and C32 Generator Set Engines Specifications Page 33

Specifications
RENR7167-02 33
Specifications Section
(7) Torque for the bolt ........ 55 ± 10 N·m (41 ± 7 lb ft)
g01399922

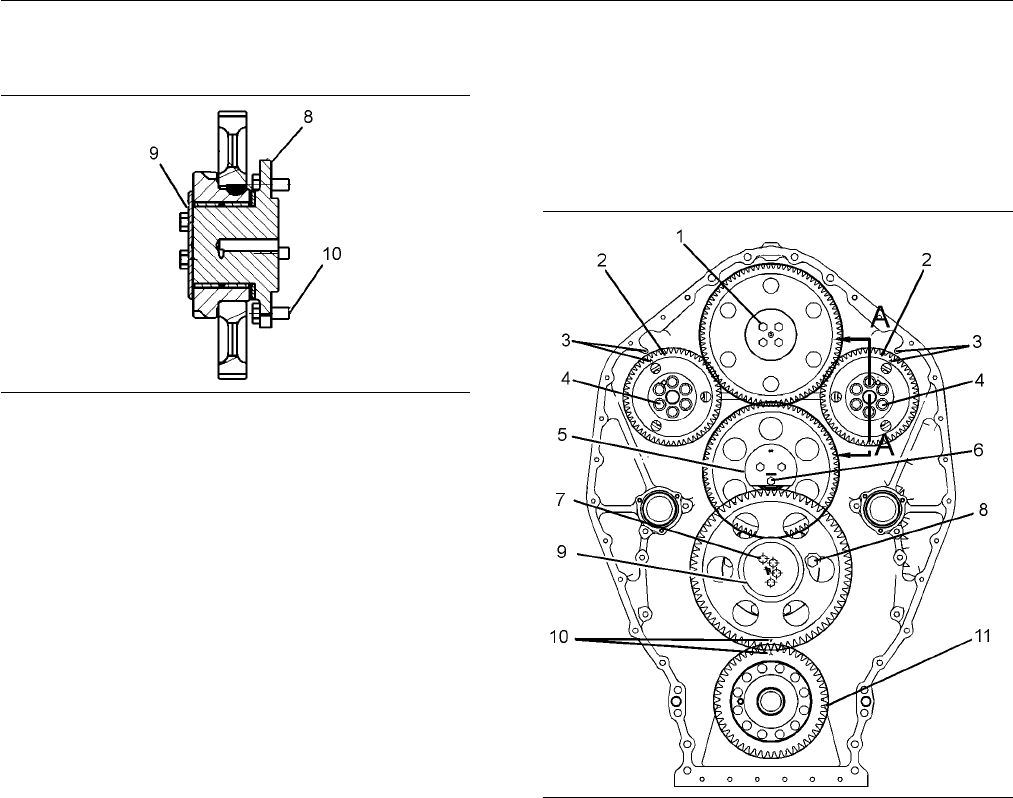

Illustration 62
Section A-A
(8) Lubricate the drive idler shaft with clean engine
oil.
Note: Install the thrust plate with the oil groove side
toward the idler gear assembly.
(9) Lubricate the thrust faces of the thrust plate with
clean engine oil.
(10) Torque for the five locking bolts ..... 55 ± 10 N·m
(41±7lbft)
i02801439
Gear Group ( Rear)
SMCS Code: 1204
;1206
Part No.: 224-1213
g01400122
Illustration 63
Note: Lubricate the shaft, the bearing bore, and the
thrust faces of the idler gear assembly with clean
engine oil.
(1) Torque for the bolts of the idler gear
assembly ..................... 55 ± 10 N·m (41 ± 7 lb ft)
(2) Lubricate the shaft, the bearing bore, and the
thrust faces of the camshaft gear assembly with
clean engine oil.
(3) With the number one piston in the top dead
center position, align the timing marks. The mark
on the camshaft gear must be in alignment with
the mark in the rear housing.
