C27 and C32 Generator Set Engines Specifications Page 21

Specifications
RENR7167-02 21
Specifications Section

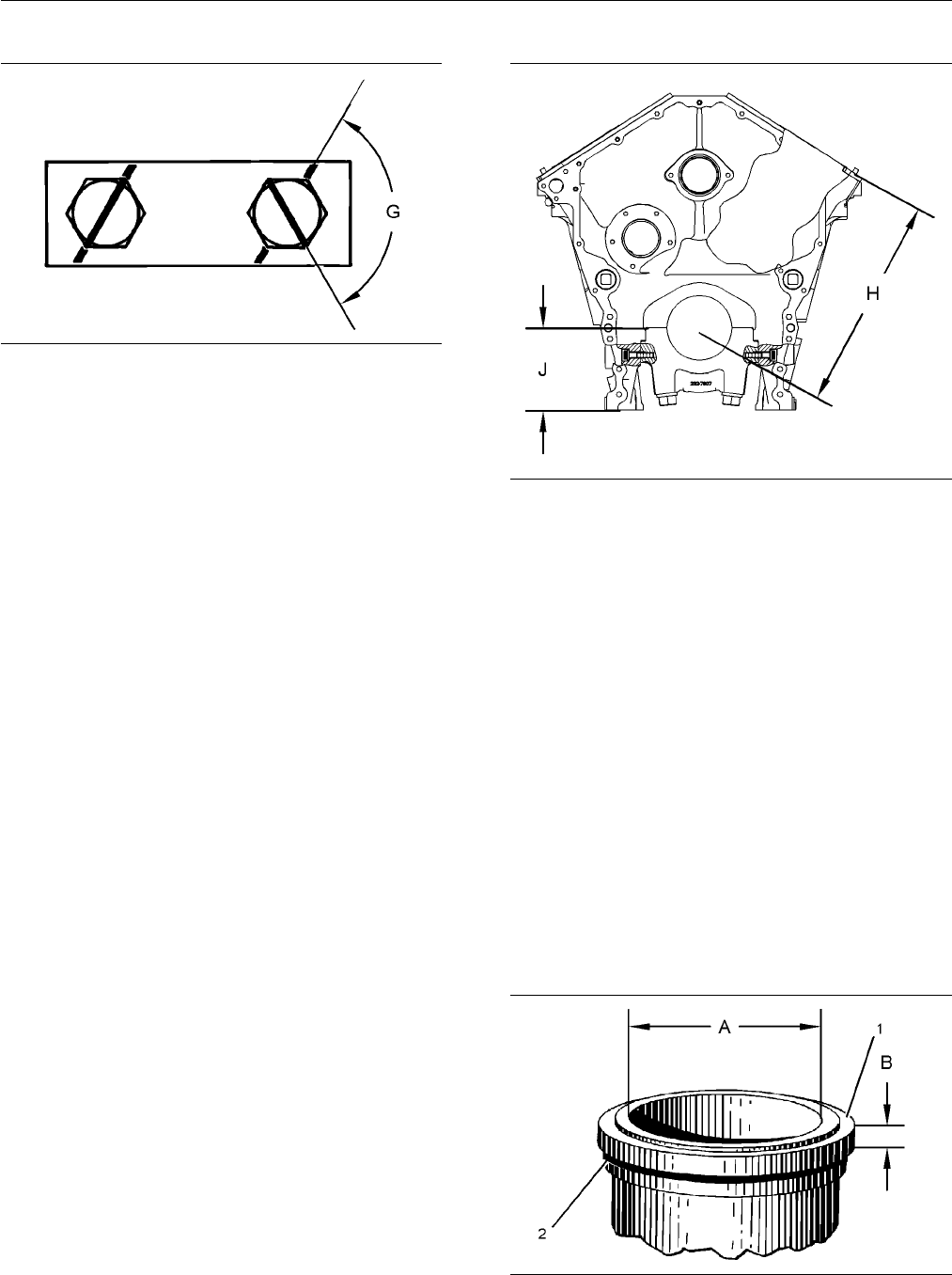

g01398970
Illustration 39
Marks for tightening main bearings
1. Apply clean engine oil on the threads of the main
bearing cap bolts (8). Loosely install the main
bearing cap bolts (8).
2. Apply clean engine oil on the threads of the side
bolts (6) and the washers. Loosely install the side
bolts and the washers.
3. Tighten the main bearing cap bolts (8) first on the
main bearing tab side of the main bearing cap (7)
to 258 ± 14 N·m (190 ± 10 lb ft).
4. Tighten the main bearing cap bolts (8) that are
opposite the main bearing tab side of the main
bearingcap(7)to258±14N·m(190±10lbft).
5. Put a mark on each main bearing cap bolt (8) and
each main bearing cap (7). See Illustration 39.
6. Tighten the main bearing cap bolts (8) that are
placed opposite the main bearing tab side of the
main bearing cap (7) from the mark by angle (G)
of 120 ± 5 degrees.
7. Tighten the main bearing cap bolts (8) that are
placed on the main bearing tab side of the main
bearing cap (7) from the mark by angle (G) of 120
± 5 degrees.
8. Tighten the side bolts (6) that are opposite the
main bearing tab side of the main bearing cap (7)
to80±10N·m(60±7lbft).
9. Tighten the side bolts (6) that are placed on the
main bearing tab side of the main bearing cap (7)
to80±10N·m(60±7lbft).
g01398978
Illustration 40
(H) The distance from the centerline of the
crankshaft bearing bore to the top of the cylinder
block ... 419.10 ± 0.15 mm (16.500 ± 0.006 inch)
(J) The distance from the centerline of the crankshaft
bearing bore to the bottom of the cylinder block
.............. 165.10 ± 0.10 mm (6.500 ± 0.004 inch)
i02811418
Cylinder Liner
SMCS Code: 1216
Part No.: 197-9322
S/N: DWB1-Up
Part No.: 197-9322
S/N: SXC1-Up
Part No.: 197-9322
S/N: WDR1-Up
g01402328
Illustration 41
