C27 and C32 Generator Set Engines Specifications Page 15

Specifications
RENR7167-02 15
Specifications Section
i02798297
Camshaft
SMCS Code: 1210
Part No.: 246-4409, 260-9308
S/N: SXC1-Up
Part No.: 260-9308
S/N: MED1-Up
Part No.: 260-9308
S/N: WDR1-Up

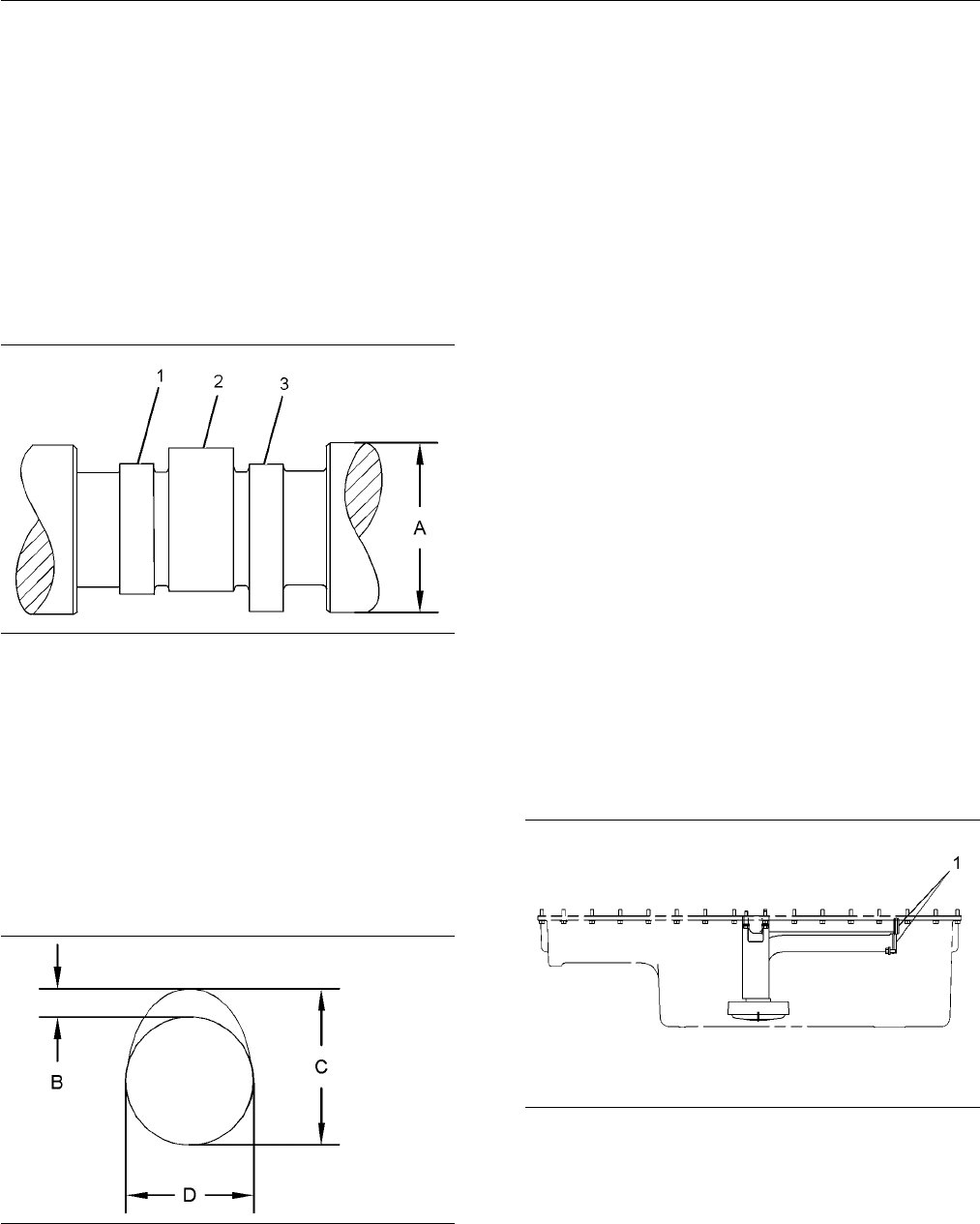

g01398084
Illustration 27
(1) Exh aust l
obe
(2) Injector l
obe
(3) In let lobe
Note: The end of the camshaft that is marked “F”
must be placed
at the front of the engine. Lubricate
the camshaft bearings, the journals, and the lobes
with a 50/50 mixture of 8T-2998 Lubricant and clean
engine oil.
(A) Diameter of camshaft journal .. 84.85 ± 0.02 mm
(3.341 ± 0.00
1 inch)
g01398078
Illustration 28
Use the following procedure to find the actual lobe lift:
1. Measure the camshaft lobe height (C).
2. Measure the base circle (D).
3. Subtract the base circle measurement in Step
2fromthecamsh
aft lobe height in Step 1. The
difference is the actual lobe lift.
(B) Specified c
amshaft lobe lift
Exhaust lobe ......... 8.51520 mm (0.335243 inch)
Injector lobe (right bank) ............... 10.33667 mm
(0.406954 inch)
Injector lobe (left bank) ................. 10.33718 mm
(0.406974 inch)
Inlet lobe ............... 9.61850 mm (0.378680 inch)
The maximum pe
rmissible difference between the
actual lobe lift in Step 3 and the specified camshaft
lobe lift is 0.13 mm (0.005 inch).
i02385184
Engine Oil Lines
SMCS Code: 1307
Part No.: 122-1790, 188-4641
S/N: DWB1-Up
Part No.: 122-1790, 188-4641
S/N: SXC1-Up
Part No.: 122-1790
S/N: MED1-Up
Part No.: 122-1790, 188-4641
S/N: WDR1-Up
g01189707
Illustration 29
(1) Lubricate the bores and the O-Ring seals lightly
with engine oil.
Previous page
Next page
