Shoes

See pages 51 through 55 for detailed shoe

information.

Measurement — Use the depth gauge or

the Ultrasonic Wear Indicator to measure

shoes.

Shoe Width — Wide track shoes are a

major cause of undercarriage component

failures and dry joints. See page 12 for a

detailed discussion of the effects of wide

track shoes.

Idlers

See pages 56 through 58 for detailed idler

information.

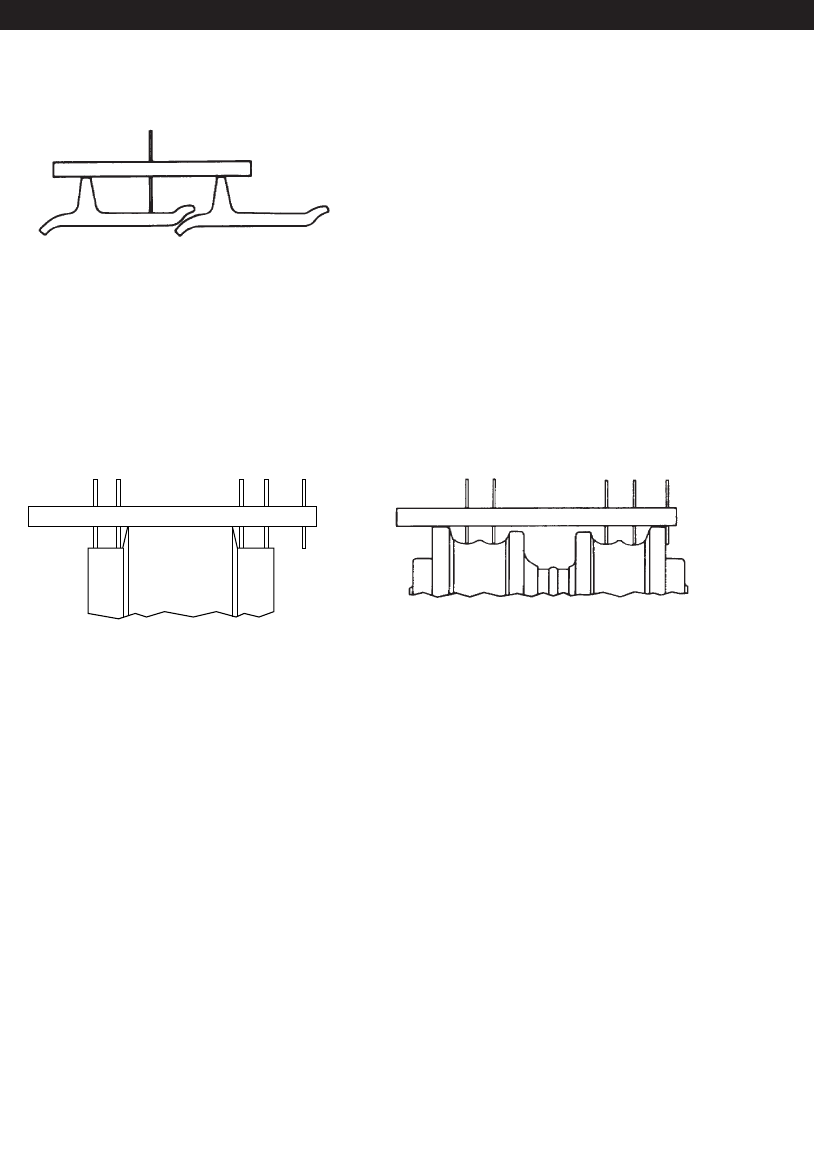

Measurement — Use the depth gauge to

measure both treads of the idler. Use the

same depth gauge probe positions as you

use for rollers, but do not use the reference

hooks. For D8 through D11 tractors,

position the bar so two posts are over each

tread and press the bar down. Measure the

length of all four posts and use the largest

measurement to determine percent worn.

For D4 through D7 tractors, position the

bar so that one probe is over the center of

each tread. Use the average measurement

to determine percent worn.

Idler Swapping — In some situations,

wear between front to rear or left to right

idlers may be uneven. If this occurs,

follow the guidelines on page 56 to deter-

mine if a swap is necessary.

Due to differences in front and rear idler

diameters, swapping is not possible on the

D4H, D4H XL, D5M XL, D5N XL, D6H

(serial number ranges 1KD402-661,

2TG1-543, 3YG1-556, 4GG1-465, 5HG1-

441, 8FC1-717, 8FC461-964, 8YC473-

UP), D8N, and D8R.

Idler Guard Wear Packages for D8R,

D9R, D10R, D11R — Increase link, roller

and idler wear life by up to 40% by

installing flexible rubber idler guards.

These guards are for use in moderate to

high abrasive and low impact underfoot

conditions. They work by preventing

abrasive material from entering the under-

carriage system. For details, reference

IRM UC01-06 (PELM1002).

Track Rollers

See pages 61 through 65 for detailed track

roller information. The following points are

specifically for elevated sprocket tractors.

Measurement — For D8 through 11

tractors, measurement of track rollers must

be done using the depth gauge or the

Ultrasonic Wear Indicator. Calipers are not

feasible due to close roller spacing. The

depth gauge, calipers or the Ultrasonic

Wear Indicator may be used on D4 through

D7 tractors.

For D8 through D11 track rollers, set the

farthest probe on the measurement tool as a

reference hook. Set the probes in the appro-

priate holes for the model being measured.

Position the bar across the roller so the ref-

erence hook is against the outside of the

outer flange and the probes are resting on the

grooves of the roller. These rollers develop

wear grooves as explained on page 62.

Push the bar down flush with the flanges.

Then measure the exposed length of all four

probes and use the average measurement

102

COMPONENTS

Elevated Sprocket Machines

02.1.Elev.(94-109) 7/11/03 3:42 PM Page 102
