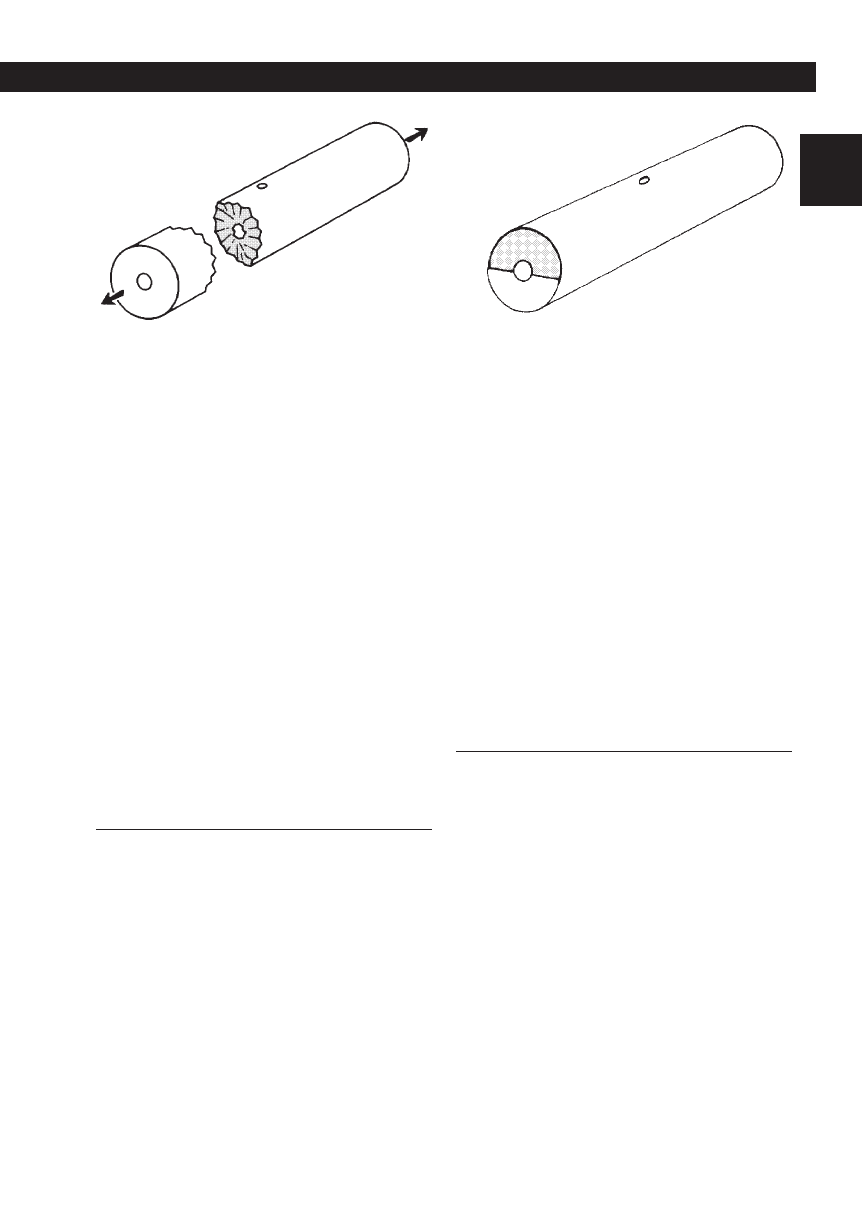

Pin Breakage

CAUSES: Crack starts on outer surface

and spreads through entire pin at a fast rate

(not nearly as common as with Sealed

Track Pins).

ACCELERATORS: Impact loads com-

bined with other loads caused by tight

track, severe packing, too wide shoes and

effects of worn rear rollers.

EFFECT: Track separation with little or

no warning.

REMEDIES: Eliminate or reduce control-

lable accelerator variables, particularly

too-wide shoes and entry of non-extrud-

able packing materials (rocks, etc.) into

the sprocket bushing contact area.

The following problem is externally visible

and while the cause is the same as with

Sealed Track the effect is different and

should be noted.

Pin End Wear

CAUSES: Sliding contact with track guid-

ing and/or roller guards and/or rocks.

(May be seen on either or both ends).

ACCELERATORS: Uneven terrain, and

side-hill operation, too wide shoes, worn

rolling component flange and misalign-

ment are many controllable variables.

EFFECT: Reservoir hole may have to be

de-burred and re-chamfered to remove the

stopper and plug at maintenance time. Pin

end may have to be re-chamfered before

pressing into link to prevent bore broach-

ing and subsequent lubricant loss after

track press work.

REMEDIES: Eliminate or reduce control-

lable accelerators.

General Information

SEALED & LUBRICATED TRACK PINS & BUSHINGS
