Caterpillar Custom Track Service Handbook Page 597

Service Handbook

Page of 826

/ 826

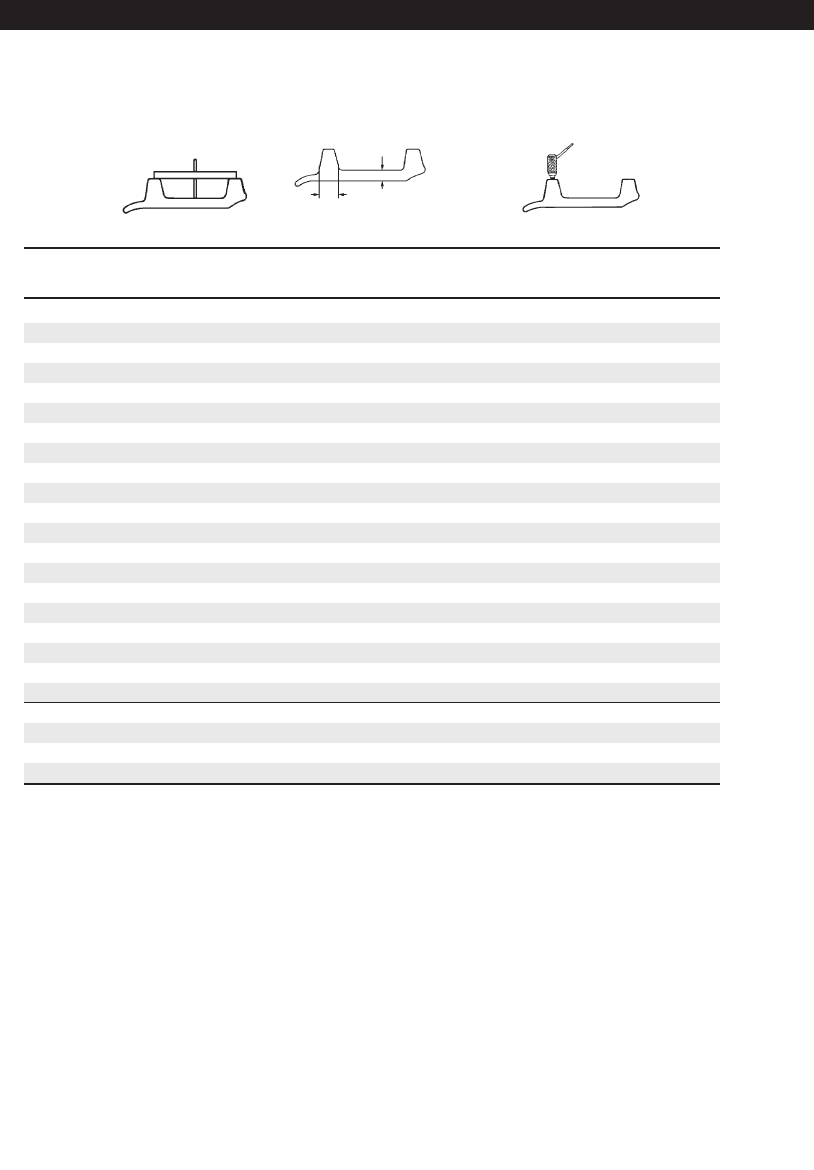

Track Shoes

Double Grouser

(Original Forged [semi-flat] shoe)

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

2.94 (74.5) 0 4.21 (107.0)

2.84 (72.0) 6 4.11 (104.5)

2.74 (69.5) 12 4.01 (101.9)

2.64 (67.0) 18 3.91 (99.4)

2.54 (64.5) 24 3.81 (96.8)

2.44 (62.0) 30 3.71 (94.3)

2.34 (59.5) 35 3.61 (91.8)

2.24 (57.0) 40 3.51 (89.2)

2.14 (54.5) 45 3.41 (86.7)

2.04 (52.0) 50 3.31 (84.1)

1.94 (49.5) 55 3.21 (81.6)

1.84 (46.5) 60 3.11 (79.1)

1.74 (44.0) 65 3.01 (76.5)

1.64 (41.5) 70 2.91 (74.0)

1.54 (39.0) 75 2.81 (71.4)

1.44 (36.5) 80 2.71 (68.9)

1.34 (34.0) 85 2.61 (66.4)

1.24 (31.5) 90 2.51 (63.8)

1.14 (29.0) 95 2.41 (61.3)

1.04 (26.5) 100 2.31 (58.7)

0.94 (24.0) 105 2.21 (56.2)

0.84 (21.5) 110 2.11 (53.7)

0.74 (19.0) 115 2.01 (51.1)

0.64 (16.5) 120 1.91 (48.6)

Undercarriage Code: 670

596

Excavators

5130 — 12.50" (317.5 mm)

1.26" (32 mm)

2.15" (54.6 mm)

10.Exc.(488-607) 7/14/03 7:33 AM Page 596
