Idler Wear

Measurement Technique

Tread and center flange wear are the mea-

surable wear positions on idlers.

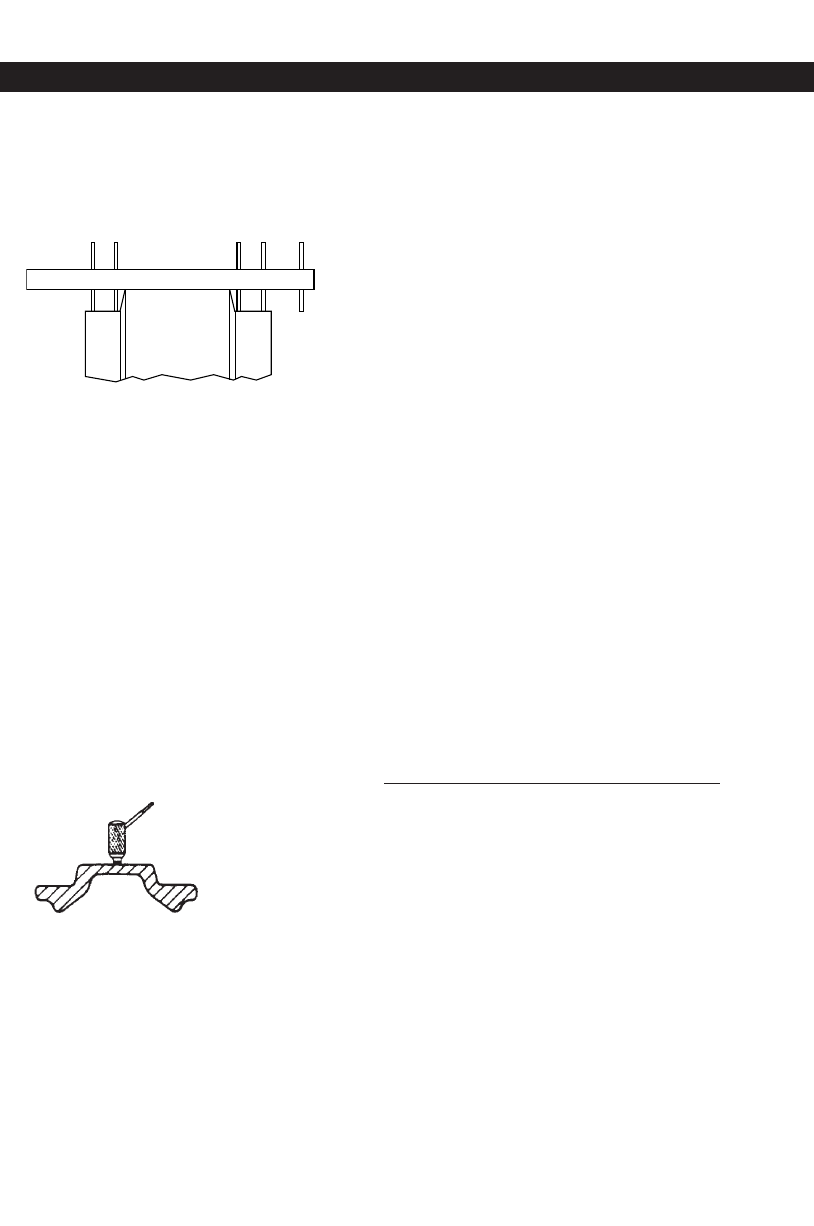

Tread wear is determined by measuring

with the broad based depth gauge from the

idler center flange to tread surface. The

positioning of the depth gauge should be

so that the measurement rule is aimed as

closely as possible toward the center of the

idler with the base flat on center flange

and parallel to idler shaft. The greatest

error in measuring idler tread wear arises

from wear on top of the center flange

which alters the reference point. If this

wear is suspected some attempt to com-

pensate for it should be made in the

reading taken. Remember idler tread wear

measurements increase as tread wear

occurs and decreases as center flange wear

occurs.

Center flange wear is measurable with the

ultrasonic wear indicator on fabricated

idlers only. It measures the thickness of

the center flange and should be taken

directly in the center of the flange. Use the

conventional depth gauge to measure wear

on the tread surface, then add the center

flange wear to the depth gauge measure-

ment before determining percent worn.

Wear Limits

Idler tread allowable wear and resulting

wear limits are based on two basic criteria:

Rebuildability of the tread surface plus

center flange to track bushing clearance.

As wear proceeds past 100 percent each of

these considerations may result in damage

to other parts. If the idler is worn beyond

120 percent the tread will become too thin

to successfully rebuild.

Wear Charts

Wear charts for idlers are direct reading

from the measurement taken. They have a

built-in factor allowing for faster wear rate

after the hardened case depth is worn

away. As with links and rollers, the wear

rate is about three times as fast in the

unhardened material below the case depth.

Rebuildability

Idler tread and flange can be successfully

rebuilt (welded) several times if they are

not worn beyond service limits and if

center flange wear is considered into this

service point.

Welded idlers generally provide wear life

equal to original tread wear life to respec-

tive limits if welded to original dimensions.

Swapping Idlers

Idlers can be swapped from side to side or

front to rear (on elevated sprocket machines)

to balance wear. Consider swapping

whenever the ratio of most worn to least

worn is greater than 1.5 to 1 and the average

percent worn is less than 60 percent.

IDLERS
