Caterpillar Custom Track Service Handbook Page 441

Service Handbook

Page of 826

/ 826

Idlers

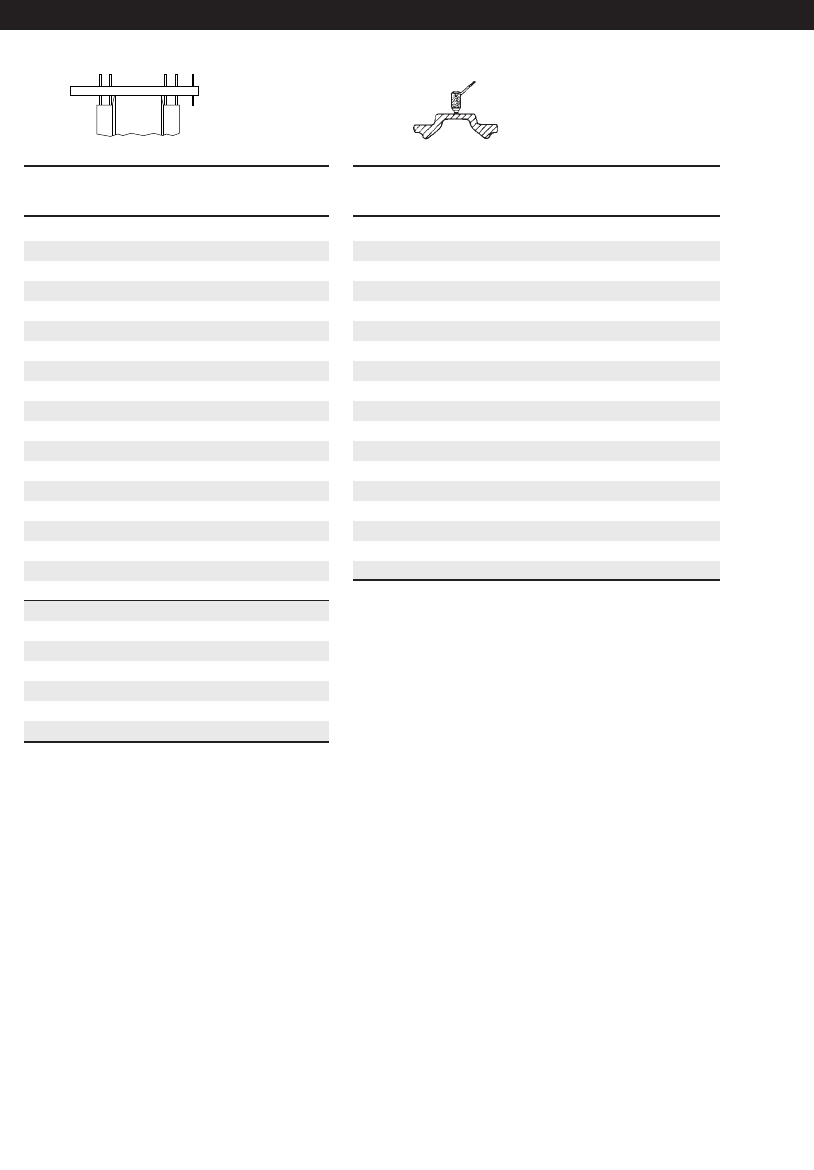

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.66 (17.0) 0 0.36 (9.1) 0.00 (0.0)

0.68 (17.5) 8 0.34 (8.6) 0.02 (0.5)

0.70 (18.0) 16 0.32 (8.1) 0.04 (1.0)

0.72 (18.5) 24 0.30 (7.6) 0.06 (1.5)

0.74 (19.0) 32 0.28 (7.1) 0.08 (2.0)

0.76 (19.5) 40 0.26 (6.6) 0.10 (2.5)

0.78 (20.0) 48 0.24 (6.1) 0.12 (3.0)

0.80 (20.5) 56 0.22 (5.6) 0.14 (3.5)

0.82 (21.0) 64 0.20 (5.1) 0.16 (4.0)

0.84 (21.5) 72 0.18 (4.6) 0.18 (4.5)

0.86 (22.0) 76 0.16 (4.1) 0.20 (5.0)

0.88 (22.5) 79 0.14 (3.6) 0.22 (5.5)

0.90 (23.0) 82 0.12 (3.0) 0.24 (6.0)

0.92 (23.5) 85 0.10 (2.5) 0.26 (6.5)

0.94 (24.0) 88 0.08 (2.0) 0.28 (7.0)

0.96 (24.5) 91 0.06 (1.5) 0.30 (7.5)

0.98 (25.0) 94 0.04 (1.0) 0.32 (8.0)

1.00 (25.5) 97 0.02 (0.5) 0.34 (8.5)

1.02 (26.0) 100

NOTE: Ultrasonic measurement is to determine

1.04 (26.5) 103

flange wear only.

1.06 (27.0) 106

1.08 (27.5) 109

1.10 (28.0) 112

1.12 (28.5) 115

1.14 (29.0) 118

1.16 (29.5) 121

Flange width: 2.70" (68.5 mm)

Undercarriage Code: 322, 323

440

943 — 6.75" (171.5 mm)

Hydrostatic Loaders

09.Hydro(426-487) 7/14/03 7:31 AM Page 440
