SPROCKETS

General Information Information

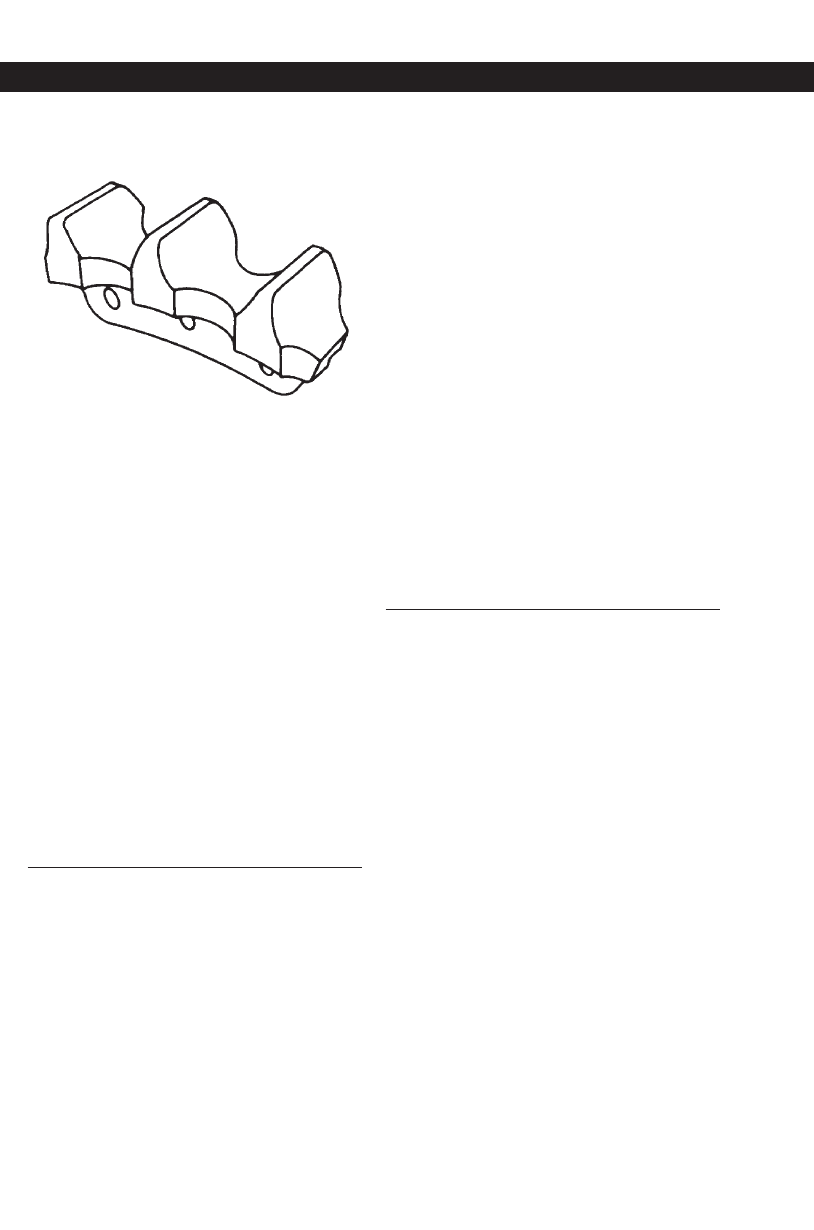

Mud & Snow Segments

and Rims

Mud/snow sprockets, rims and segments

have the same tooth profile as standard

segments. They provide an avenue to

relieve the pocket of material through a

slot cut into the tooth root. The same

segment serves both Sealed and Sealed

and Lubricated Track.

They should be recommended only where

packing material is extrudable (see discus-

sion on “Packing” in section entitled

“Underfoot Conditions”) and is always

present.

In the absence of constant, extrudable type

packing material, the reduced contact area

in the root of the tooth will cause an accel-

erated “hour-glass” shaped wear pattern

on the bushing in the vertical position and

may result in reduced bushing wear life.

How to Properly Torque

Segment Hardware

The principal cause of segment loosening,

and subject loss and/or damage to other

parts, is improper torque-turn tightening

method.

To install segment hardware, first, lubri-

cate the bolt threads and the washer face

of the nut with 5P3931 Antiseize Com-

pound or an equivalent lubricant.

Second, tighten all nuts on any one

segment to the specified initial torque. This

draws the mating parts tightly together.

Third, tighten each nut a 1/3 additional

turn. This stretches the bolt properly for

good segment retention.

The actual torque specifications can be

found in the “Management” section of

each type machine.
