Sealed and Lubricated Track

Bushing Wear

Measurement Technique

The track bushing is the most important

component in the undercarriage to measure

and interpret accurately.

To do this, three measurement methods

are available, each using tools provided in

the CTS tool kit.

You should refer to individual model

family sections for specific recommenda-

tion on which method to use because the

second method described here, using

depth gauge will record vertical position

wear only.

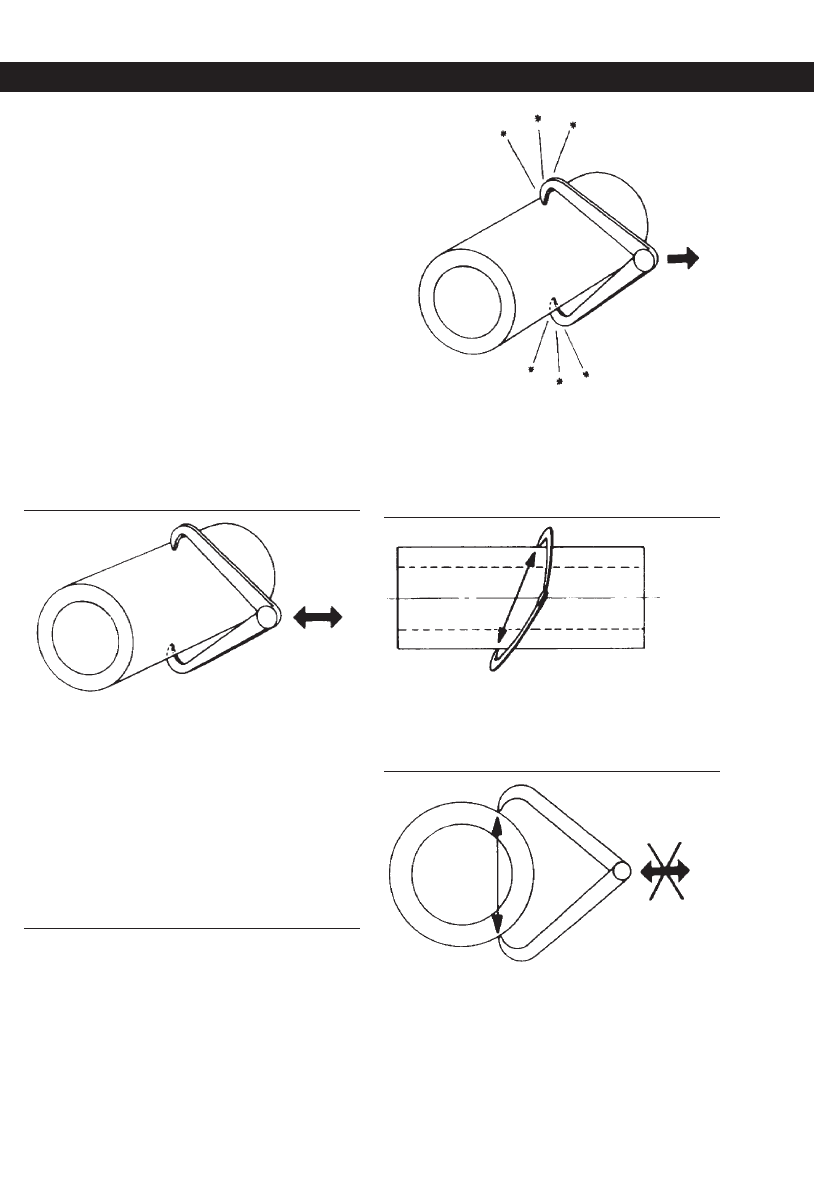

1. Caliper Method

This method gives a direct reading of

bushing diameter. With careful cleaning

and proper technique it can yield the most

accuracy, but is also the most susceptible

to error if not properly measured. The

most common errors using the caliper

method are:

(A) Calipers Squeezed Too Tight —

Calipers that are over tightened can be

spread like a spring and will give too small

of a reading.

(B) Calipers at Wrong Angle to Bushing

Axis — Calipers that are set at an angle to the

bushing will give an oversize measurement.

Across Position to be Measured —

Calipers that are not passed back and

forth over the maximum diameter of the

bushing position being measured will give

an undersize reading.

SEALED & LUBRICATED TRACK PINS & BUSHINGS

General Information

01.G.I.,M.&M (01-93) 7/11/03 3:40 PM Page 36
