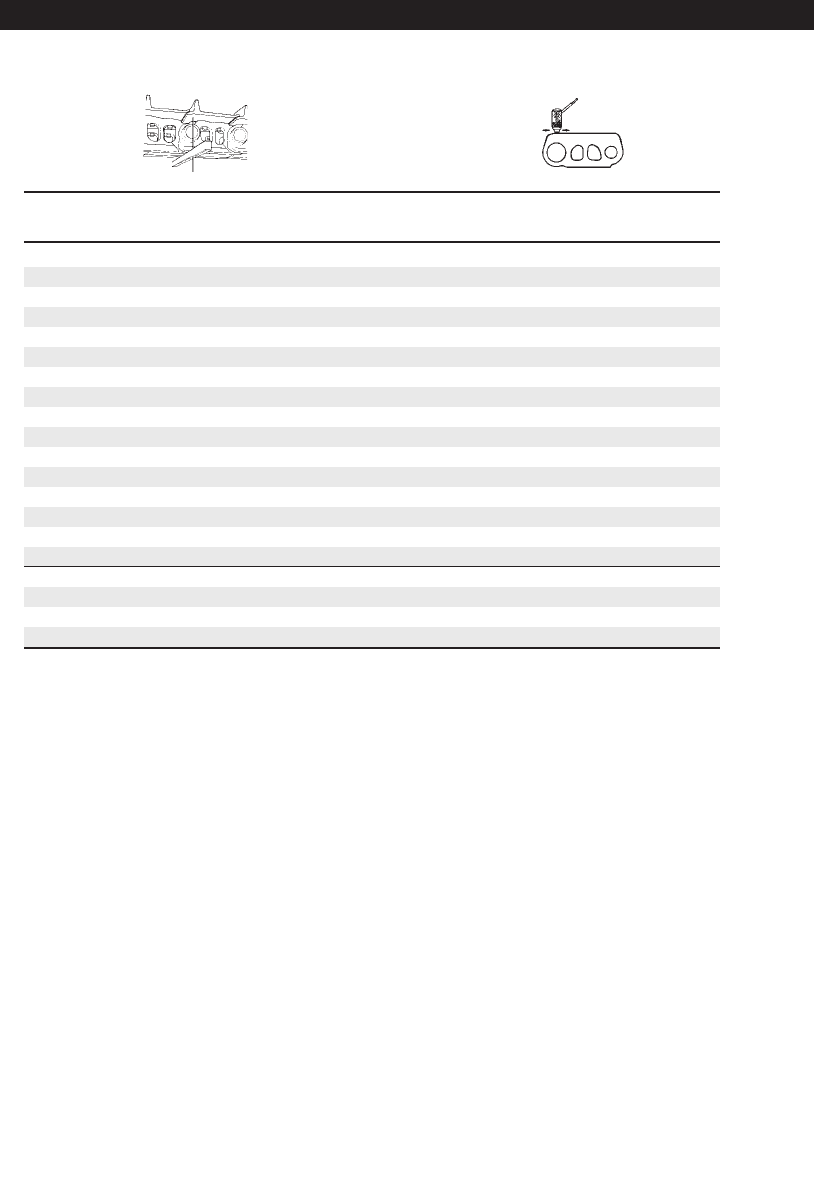

Track Links

9K6628 & 29

Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm)

3.75 (95.5) 0 1.00 (25.4)

3.73 (94.5) 8 0.98 (24.9)

3.71 (94.0) 16 0.96 (24.4)

3.69 (93.5) 24 0.94 (23.9)

3.67 (93.0) 32 0.92 (23.4)

3.65 (92.5) 40 0.90 (22.9)

3.63 (92.0) 46 0.88 (22.4)

3.61 (91.5) 52 0.86 (21.8)

3.59 (91.0) 58 0.84 (21.3)

3.57 (90.5) 64 0.82 (20.8)

3.55 (90.0) 70 0.80 (20.3)

3.53 (89.5) 76 0.78 (19.8)

3.51 (89.0) 82 0.76 (19.3)

3.49 (88.5) 88 0.74 (18.8)

3.47 (88.0) 94 0.72 (18.3)

3.45 (87.5) 100 0.70 (17.8)

3.43 (87.0) 106 0.68 (17.3)

3.41 (86.5) 112 0.66 (16.8)

3.39 (86.0) 118 0.64 (16.3)

3.37 (85.5) 124 0.62 (15.7)

Undercarriage Code: 710, 720, 750, 760, 780

794

PR1000, PR750B, SF550, SF500, TR500 — 6.75" (171.5 mm)

Paving Products/Drive Belts

13.Pav/Ag.(792-817) 7/14/03 7:34 AM Page 794
