Caterpillar Custom Track Service Handbook Page 243

Service Handbook

Page of 826

/ 826

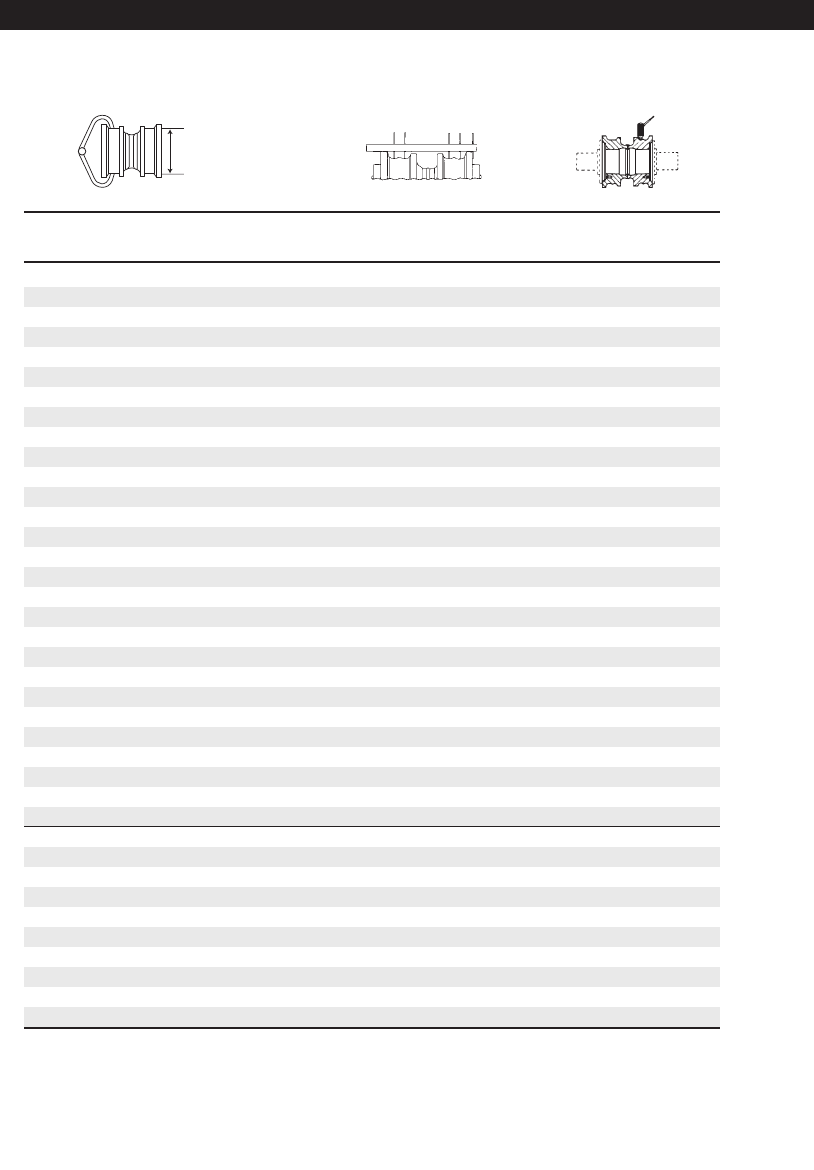

Track Rollers

Single Flange

Standard Roller

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

11.30 (287.0) 0 0.67 (17.0) 2.83 (71.9)

11.20 (284.5) 4 0.72 (18.5) 2.78 (70.6)

11.10 (282.0) 8 0.77 (19.5) 2.73 (69.3)

11.00 (279.5) 12 0.82 (21.0) 2.68 (68.1)

10.90 (277.0) 16 0.87 (22.0) 2.63 (66.8)

10.80 (274.5) 20 0.92 (23.5) 2.58 (65.5)

10.70 (272.0) 24 0.97 (24.5) 2.53 (64.3)

10.60 (269.0) 28 1.02 (26.0) 2.48 (63.0)

10.50 (266.5) 32 1.07 (27.0) 2.43 (61.7)

10.40 (264.0) 36 1.12 (28.5) 2.38 (60.5)

10.30 (261.5) 40 1.17 (29.5) 2.33 (59.2)

10.20 (259.0) 44 1.22 (31.0) 2.28 (57.9)

10.10 (256.5) 48 1.27 (32.5) 2.23 (56.6)

10.00 (254.0) 52 1.32 (33.5) 2.18 (55.4)

9.90 (251.5) 56 1.37 (35.0) 2.13 (54.1)

9.80 (249.0) 60 1.42 (36.0) 2.08 (52.8)

9.70 (246.5) 64 1.47 (37.5) 2.03 (51.6)

9.60 (244.0) 68 1.52 (38.5) 1.98 (50.3)

9.50 (241.5) 72 1.57 (40.0) 1.93 (49.0)

9.40 (239.0) 76 1.62 (41.0) 1.88 (47.8)

9.30 (236.0) 80 1.67 (42.5) 1.83 (46.5)

9.20 (233.5) 84 1.72 (43.5) 1.78 (45.2)

9.10 (231.0) 88 1.77 (45.0) 1.73 (43.9)

9.00 (228.5) 92 1.82 (46.0) 1.68 (42.7)

8.90 (226.0) 94 1.87 (47.5) 1.63 (41.4)

8.80 (223.5) 96 1.92 (49.0) 1.58 (40.1)

8.70 (221.0) 98 1.97 (50.0) 1.53 (38.9)

8.60 (218.5) 100 2.02 (51.5) 1.48 (37.6)

8.50 (216.0) 102 2.07 (52.5) 1.43 (36.3)

8.40 (213.5) 104 2.12 (54.0) 1.38 (35.1)

8.30 (211.0) 106 2.17 (55.0) 1.33 (33.8)

8.20 (208.5) 108 2.22 (56.5) 1.28 (32.5)

8.10 (205.5) 110 2.27 (57.5) 1.23 (31.2)

8.00 (203.0) 112 2.32 (59.0) 1.18 (30.0)

7.90 (200.5) 114 2.37 (60.0) 1.13 (28.7)

7.80 (198.0) 116 2.42 (61.5) 1.08 (27.4)

7.70 (195.5) 118 2.47 (62.5) 1.03 (26.2)

7.60 (193.0) 120 2.52 (64.0) 0.98 (24.9)

Flange diameter is 12.64" (321 mm)

Undercarriage Code: 220, 221

242

D11N, D11R — 12.50" (317.5 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 242
