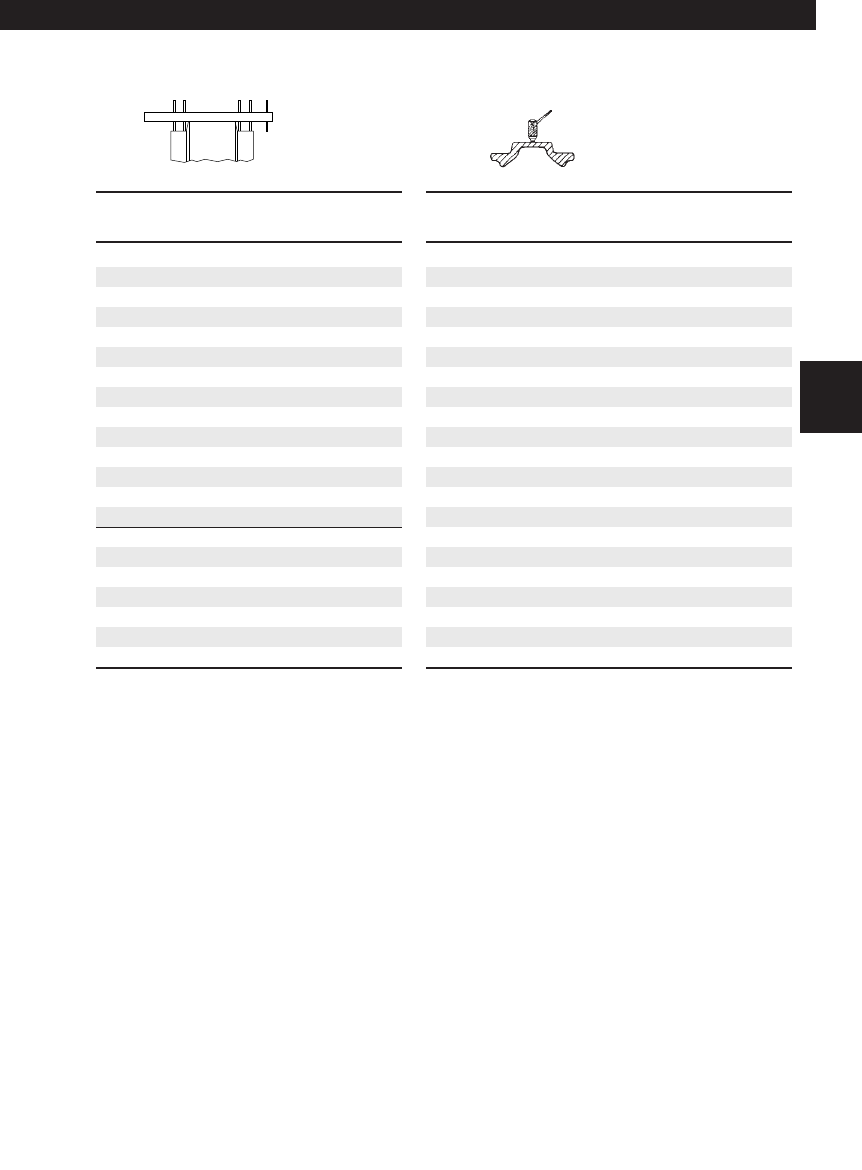

Idlers

(Has no side plate indentations)

Depth Gauge Ultrasonic Center Flange Wear

Inches (mm) % Worn Inches (mm) Inches (mm)

0.88 (22.5) 0 0.42 (10.7) 0.00 (0.0)

0.90 (23.0) 12 0.40 (10.2) 0.02 (0.5)

0.92 (23.5) 24 0.38 (9.7) 0.04 (1.0)

0.94 (24.0) 36 0.36 (9.1) 0.06 (1.5)

0.96 (24.5) 48 0.34 (8.6) 0.08 (2.0)

0.98 (25.0) 60 0.32 (8.1) 0.10 (2.5)

1.00 (25.5) 72 0.30 (7.6) 0.12 (3.0)

1.02 (26.0) 82 0.28 (7.1) 0.14 (3.5)

1.04 (26.5) 85 0.26 (6.6) 0.16 (4.0)

1.06 (27.0) 88 0.24 (6.1) 0.18 (4.5)

1.08 (27.5) 91 0.22 (5.6) 0.20 (5.0)

1.10 (28.0) 94 0.20 (5.1) 0.22 (5.5)

1.12 (28.5) 97 0.18 (4.6) 0.24 (6.0)

1.14 (29.0) 100 0.16 (4.1) 0.26 (6.5)

1.16 (29.5) 103 0.14 (3.6) 0.28 (7.0)

1.18 (30.0) 106 0.12 (3.0) 0.30 (7.5)

1.20 (30.5) 109 0.10 (2.5) 0.32 (8.0)

1.22 (31.0) 112 0.08 (2.0) 0.34 (8.5)

1.24 (31.5) 115 0.06 (1.5) 0.36 (9.0)

1.26 (32.0) 118 0.04 (1.0) 0.38 (9.5)

1.28 (32.5) 121 0.02 (0.5) 0.40 (10.0)

Flange width: 3.75" (95.5 mm) NOTE: Ultrasonic measurement is to determine

flange wear only.

Undercarriage Code: 151, 1511, 351, 3511

341

D6, 955 — 8.00" (203.2 mm)

Low Sprocket Machines

06.Low(326-347) 7/11/03 3:52 PM Page 341
