Caterpillar Custom Track Service Handbook Page 583

Service Handbook

Page of 826

/ 826

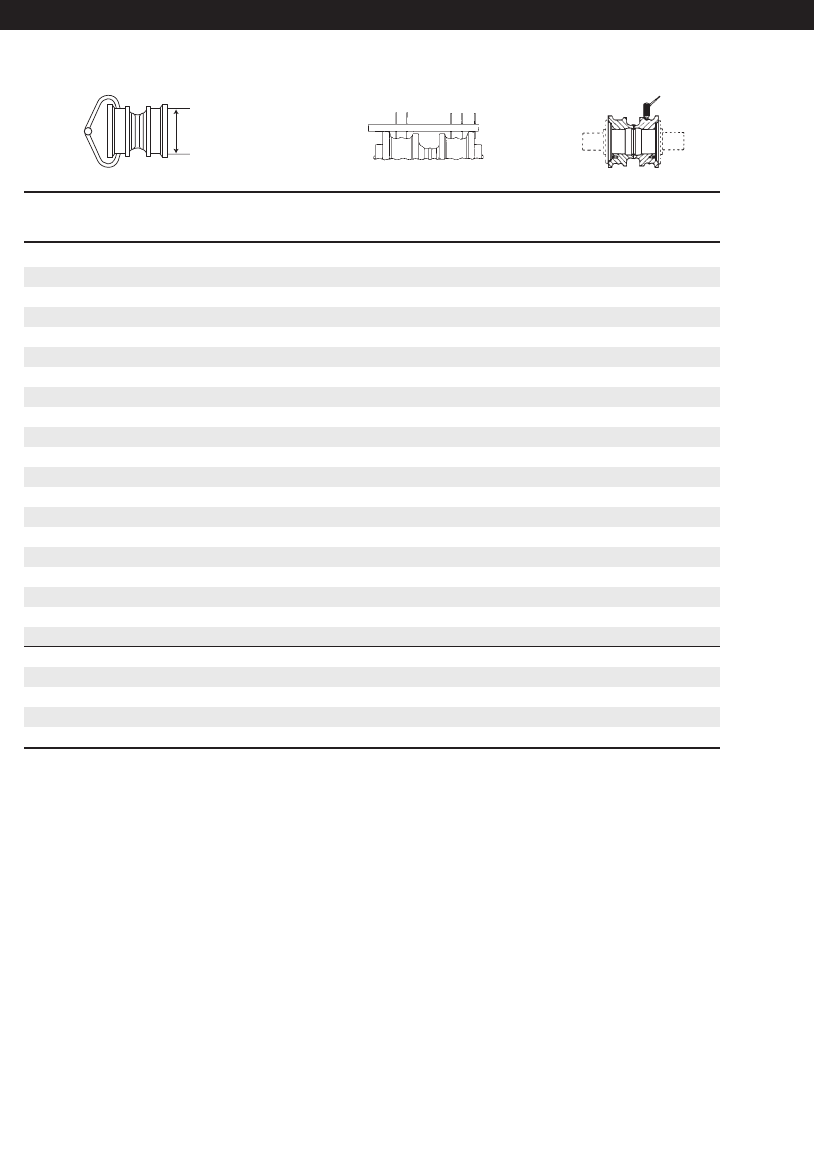

Track Rollers

Only use for 365

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

9.07 (230.5) 0 0.85 (21.5) 2.32 (58.9)

9.03 (229.5) 6 0.87 (22.0) 2.30 (58.4)

8.99 (228.5) 12 0.89 (22.5) 2.28 (57.9)

8.95 (227.5) 18 0.91 (23.0) 2.26 (57.4)

8.91 (226.5) 24 0.93 (23.5) 2.24 (56.9)

8.87 (225.5) 30 0.95 (24.0) 2.22 (56.4)

8.83 (224.5) 36 0.97 (24.5) 2.20 (55.9)

8.79 (223.5) 42 0.99 (25.0) 2.18 (55.4)

8.75 (222.5) 48 1.01 (25.5) 2.16 (54.9)

8.71 (221.0) 54 1.03 (26.0) 2.14 (54.4)

8.67 (220.0) 60 1.05 (26.5) 2.12 (53.8)

8.63 (219.0) 66 1.07 (27.0) 2.10 (53.3)

8.59 (218.0) 72 1.09 (27.5) 2.08 (52.8)

8.55 (217.0) 76 1.11 (28.0) 2.06 (52.3)

8.51 (216.0) 80 1.13 (28.5) 2.04 (51.8)

8.47 (215.0) 84 1.15 (29.0) 2.02 (51.3)

8.43 (214.0) 88 1.17 (29.5) 2.00 (50.8)

8.39 (213.0) 92 1.19 (30.0) 1.98 (50.3)

8.35 (212.0) 96 1.21 (30.5) 1.96 (49.8)

8.31 (211.0) 100 1.23 (31.0) 1.94 (49.3)

8.27 (210.0) 104 1.25 (32.0) 1.92 (48.8)

8.23 (209.0) 108 1.27 (32.5) 1.90 (48.3)

8.19 (208.0) 112 1.29 (33.0) 1.88 (47.8)

8.15 (207.0) 116 1.31 (33.5) 1.86 (47.2)

8.11 (206.0) 120 1.33 (34.0) 1.84 (46.7)

Flange diameter is 10.79" (274 mm)

Undercarriage Code: 635

582

Excavators

365 — 10.25" (260.4 mm)

10.Exc.(488-607) 7/14/03 7:33 AM Page 582
